When buyers compare propane vs gasoline generator run time, the number of hours printed on a product page rarely tells the whole story. Runtime changes with the amount of usable fuel, generator load, fuel-specific rated output, tank or cylinder size, ambient temperature, and the way fuel is replenished.

With the same liquid volume and a comparable electrical load, gasoline will generally support a longer run because it contains more energy per gallon. The U.S. Energy Information Administration lists motor gasoline at about 120,214 Btu per gallon and propane at about 91,452 Btu per gallon. A larger propane cylinder or bulk tank, لكن, can provide more total fuel than a generator’s built-in gasoline tank and may therefore keep the generator operating for longer overall.

The useful question is not simply, “Which fuel lasts longer?"

It is:

How long can the generator support the required load with the fuel supply actually available at the site?

Why Published Run-Time Numbers Are Difficult to Compare

A runtime figure only becomes meaningful when the test conditions are clear.

Consider two specifications:

• Generator A: 10 hours of runtime
• Generator B: 8 hours of runtime

Generator A appears to perform better. But suppose its figure was recorded at 25% load, while Generator B was tested at 50% load. The longer figure no longer proves better fuel performance because the second generator was producing more electricity during the test.

Fuel quantity creates another problem. A gasoline runtime figure may be based on the generator’s full onboard tank, while the propane figure may use one portable cylinder. Those containers do not necessarily hold comparable amounts of usable energy.

A proper comparison needs answers to five questions:

How much fuel was used?
For gasoline, check the tank capacity in liters or gallons. For propane, check the actual fuel weight or usable liquid capacity of the cylinder.

What load was applied?
Runtime at 25% load cannot be compared directly with runtime at 50% or rated load.

Was output different on each fuel?
Dual-fuel generators may provide different rated and maximum outputs on gasoline and propane. The same appliance load can therefore represent a different percentage of the generator’s capacity on each fuel.

Was economy mode active?
An engine that automatically reduces speed under light demand may consume less fuel than one operating at a fixed speed.

Were the operating conditions similar?
درجة حرارة, elevation, equipment condition, and load changes can all move real-world runtime away from the published figure.

Without these details, an advertised number should be treated as a reference rather than a promise.

Put Both Fuels on the Same Basis

The simplest runtime estimate is:

Estimated runtime in hours = usable fuel quantity ÷ hourly fuel consumption at the expected load

The fuel quantity and consumption rate must use matching units. Pounds of propane cannot be divided directly by a gasoline consumption figure expressed in liters per hour. Similarly, a fuel-consumption value stated in grams per kilowatt-hour needs rated output and fuel mass before it can be translated into operating hours.

The expected load also needs to reflect real use.

A generator supplying steady lighting may consume fuel differently from the same generator powering a refrigerator, compressor, مضخة, or construction tool. Motor-driven equipment can draw substantially more power during startup, and repeated starting cycles affect consumption even when average running wattage appears moderate.

Before comparing fuels, buyers should calculate:

1. The equipment expected to run at the same time
2. Normal running wattage
3. Starting or surge demand
4. Expected average load during the operating period
5. The amount of reserve capacity needed

Using maximum generator output as the normal load figure will produce a misleading runtime estimate. Maximum output is intended for temporary demand, not continuous operation.

Fuel Supply Can Reverse the Result

The higher energy content of gasoline per gallon does not automatically mean that every gasoline setup will run longer. The total fuel supply often decides the practical outcome.

الغازولين: A Fixed Onboard Supply

Portable gasoline generators commonly carry their fuel in an integrated tank. This creates a clear, self-contained setup: the generator is transported with its tank, filled before use, and operated until fuel runs low.

The main limitation is fixed capacity. A 15-liter or 25-liter tank cannot be expanded without stopping the generator and refueling it according to the manufacturer’s instructions.

Gasoline condition also affects readiness. Fuel left unused for extended periods can deteriorate, so a generator intended for emergency use needs a fuel rotation and maintenance plan. Long theoretical runtime has little value when old fuel, deposits, or a neglected carburetor prevents dependable startup.

Propane: Runtime Depends on the Connected Supply

Propane is stored as a liquid under pressure and changes into gas as pressure is released for combustion. This makes external cylinders and larger storage tanks possible, giving users more flexibility over the quantity of fuel connected to the generator.

A small portable cylinder may provide less runtime than a full gasoline tank. A larger propane supply may provide considerably more. The comparison changes each time cylinder capacity changes.

Propane delivery also depends on vaporization. Tank size, liquid level, surrounding temperature, humidity, and the tank surface in contact with liquid all affect the rate at which propane can turn into usable vapor. Lower temperatures and lower fuel levels reduce vaporization capacity, while tank frosting can further restrict it.

For a larger generator operating under sustained load, buyers therefore need to check more than total propane quantity. The cylinder and regulator system must also be able to supply fuel at the required rate.

Three Runtime Questions Buyers Actually Ask

Published hour figures become easier to assess when they are connected to a specific operating requirement.

“Can the generator cover one full work shift?"

A contractor planning an eight-hour shift should not begin with the brochure’s longest runtime claim. The calculation should use the expected average site load.

Power tools may run intermittently, while lighting, مضخات, charging equipment, or temporary facilities may stay active throughout the day. Motor-starting demand and repeated load changes also need to be included.

The fuel plan should show:

• Expected consumption during the shift
• Fuel remaining at the end of the shift
• Whether refueling or changing cylinders will interrupt work
• How reserve fuel will be transported and stored
• Whether the propane supply can maintain adequate vaporization under the expected temperature and load

A nominal ten-hour runtime at light load may not cover an eight-hour shift once heavier equipment is connected.

“Can it run through an overnight outage?"

Overnight backup is usually less about maximum output and more about maintaining essential loads.

Refrigeration, selected lighting, communication equipment, fans, security systems, and a small water pump may use much less power than the generator’s full rated capacity. Removing non-essential equipment can extend runtime more effectively than increasing fuel storage alone.

Buyers should calculate the likely nighttime load rather than using the total wattage of every appliance on the property. They should also allow a reserve rather than planning to empty the tank or cylinder completely before morning.

For portable generators, overnight operation still requires safe placement, weather protection, exhaust clearance, and regular supervision. Runtime should never be extended by moving the generator into a garage, shed, or other enclosed area.

“Can runtime be extended without buying a larger generator?"

Often, نعم.

Possible measures include:

• Reducing unnecessary electrical loads
• Avoiding simultaneous startup of high-demand equipment
• Using a larger compatible propane supply
• Scheduling heavy equipment for separate operating periods
• Maintaining the engine, فلتر الهواء, and fuel system
• Selecting a generator whose rated output places the normal load in a more suitable operating range

A larger generator is not automatically more fuel-efficient. If normal demand is low, an oversized unit may add purchase cost and operate outside its most practical load range.

The first step should be improving the load and fuel plan, not simply increasing maximum output.

A Real Gasoline Specification Shows What to Check

A manufacturer’s specification can provide the inputs needed for runtime planning even when it does not state one simplified number of hours.

The NEWTOP NTGR6500H2 gasoline generator, for example, lists:

• 5.5 كيلوواط تصنيف الإخراج
• 6.0 kW maximum output
• 389 نسخة, 13 hp OHV engine
• Fuel consumption of no more than 370 g/kWh
• 25-liter fuel tank
• Electric starting
• Copper-wire alternator
• Low-oil and short-circuit protection

The model also uses a forged crankshaft and camshaft, a full steel frame, and vibration-absorbing mounts for extended outdoor, workshop, بناء, and backup operation.

These figures are more useful than a vague “long runtime” claim because they allow buyers to examine the relationship among tank capacity, rated output, واستهلاك الوقود.

They still do not justify one fixed runtime prediction.

Actual consumption changes with load, and the published fuel-consumption value must be interpreted using the manufacturer’s test method. Buyers who need a precise operating-hour estimate should request consumption data at several load levels, مثل 25%, 50%, 75%, and rated load.

NEWTOP’s gasoline generator range also includes compact 2.8 kW models, mid-range 5.5 كيلوواط و 7.8 kW units, and higher-output 10 kW configurations. This range illustrates why runtime cannot be separated from generator size: إزاحة المحرك, output demand, سعة الخزان, and intended workload change from one power class to another.

Runtime Information to Request from the Supplier

Instead of asking only, “How many hours will it run?", buyers should request the test information behind the number.

A supplier that provides the test basis makes it easier for distributors and end users to set realistic expectations. A single hour figure without fuel quantity and load percentage offers far less value.

Safety Comes Before Additional Runtime

Both gasoline and propane generators produce carbon monoxide. Portable units must operate outdoors and away from occupied buildings, with exhaust directed away from doors, windows, and vents. The U.S. Consumer Product Safety Commission advises placing portable generators at least 20 feet from the home whenever possible.

Gasoline should not be added while the generator is running or hot. Propane cylinders, regulators, خراطيم, and connectors must match the equipment instructions and applicable gas-safety requirements.

A longer hose, improvised fuel connection, indoor placement, or unsafe hot refueling is never an acceptable way to gain more operating time.

What Buyers Should Really Compare

Gasoline contains more energy per gallon than propane, so an equal-volume comparison generally favors gasoline. Real generator installations rarely use equal fuel volumes, لكن. A propane generator connected to a larger external supply may run longer than a gasoline model limited to its onboard tank.

A reliable propane vs gasoline generator run time comparison should place both fuels under the same conditions:

• Comparable electrical load
• Clearly stated rated output
• Known usable fuel quantity
• Matching runtime test conditions
• Suitable tank or cylinder capacity
• Realistic temperature and operating pattern
• Safe refueling or cylinder replacement plan

The most useful runtime figure is not the largest number in a catalog. It is the number of hours the generator can support the required equipment before the available fuel supply must be safely replenished.

The Diesel Generator vs Gasoline choice mainly depends on running hours, power demand, قابلية النقل, توافر الوقود, والميزانية. Diesel generators are generally better suited to frequent or extended operation, while gasoline generators are often more practical for shorter backup periods and mobile tasks.

لكن, fuel type alone does not decide whether a generator will perform well. Rated output, motor-starting demand, engine construction, fuel tank capacity, maintenance access, and the cost of downtime can be just as important. A correctly sized gasoline generator may serve a small workshop better than an oversized diesel unit, while a diesel generator may offer better long-term value on a site that needs power throughout the working day.

Diesel Generator vs Gasoline: Key Differences

Both generator types use an internal combustion engine to drive an alternator and produce electricity. The practical difference lies in how the engine delivers power and how the generator fits the intended workload.

Diesel generators are commonly selected for frequent use, sustained loads, and higher-capacity applications. Compared at a similar output and under extended operation, diesel models may offer more favorable fuel consumption. Their mechanical construction also tends to suit applications where the generator is expected to work regularly.

Gasoline generators are widely used where portability, lower initial investment, and intermittent operation matter more. Many compact gasoline models are easier to move between locations and are suitable for temporary work, small businesses, household backup, and outdoor use.

These are general tendencies rather than fixed rules. Actual performance depends on the generator model, إزاحة المحرك, load percentage, alternator, enclosure, cooling system, and maintenance condition.

Specifications from individual models should always take priority over general fuel-type comparisons. Buyers should compare rated output, maximum output, fuel consumption, سعة الخزان, noise level, and recommended operating conditions before ordering.

Which Generator Is Better for Commercial Use?

Commercial generator selection should begin with the expected duration and frequency of each power interruption.

For a small shop, office, restaurant, or service business that only experiences occasional short outages, a gasoline generator may provide sufficient backup at a more manageable initial cost. It can support selected lighting, communication devices, payment systems, fans, refrigeration, or other essential equipment, provided that the total running and starting loads remain within the generator’s rated capacity.

The priorities change when outages last for several hours or happen several times each week. Fuel consumption becomes more important, and the generator must maintain stable output for longer periods. A diesel generator may then offer a better fit, particularly for warehouses, larger workshops, مزارع, hospitality businesses, and facilities where power loss quickly affects revenue.

Commercial buyers should establish four points before choosing:

✅ Expected running time

Estimate how many hours the generator may operate during a normal outage rather than relying only on annual outage frequency.

✅ Essential electrical loads

Identify which equipment must remain active. Refrigeration systems, مضخات, air compressors, and other motor-driven equipment may require substantially more power during startup.

✅ Backup or primary operating role

A generator used only during grid failure has a different duty pattern from one used as a regular power source in an area with limited grid access.

✅ Cost of downtime

For businesses that lose products, production capacity, or customer transactions during an outage, operating reliability may matter more than the lowest purchase price.

Automatic transfer requirements should also be considered for fixed commercial installations. Where uninterrupted changeover is important, generator compatibility with the intended transfer and control system should be confirmed before purchase.

Which Generator Is Better for Construction Sites?

Construction sites place different demands on a generator. Loads change throughout the day, equipment may have high starting current, and the generator often operates around dust, vibration, heat, and frequent movement.

Diesel generators are commonly chosen for longer shifts and repeated jobsite use. They may be better suited to powering pumps, mixers, welders, compressors, lighting systems, and temporary site facilities over sustained periods. A heavier frame is also less of a disadvantage when the generator remains in a fixed work area or is mounted on a wheeled platform.

Gasoline generators remain practical for smaller crews and shorter assignments. Repair work, finishing tasks, temporary lighting, and mobile tools may only require power for a few hours. In those cases, a compact gasoline generator can be easier to load, unload, and move around the site.

The decision should reflect how the site actually works:

• Long daily shifts with sustained loads: diesel is often the stronger candidate.
• Short tasks across multiple work areas: gasoline may provide easier mobility.
• Tools with electric motors: starting wattage must be checked, not only normal running wattage.
• Dusty or hot conditions: filtration, cooling, frame strength, and maintenance access become more important.
• Noise-sensitive projects: compare enclosed and open-frame models using actual noise specifications.
• Remote sites: choose the fuel that can be supplied, stored, and managed reliably in that location.

Fuel type cannot compensate for poor sizing. An undersized generator may struggle during motor startup or trip under changing loads. An oversized unit adds cost and may operate inefficiently when the average load remains very low.

Which Generator Is Better for Emergency Use?

Emergency use includes several very different situations. A homeowner preparing for a short grid outage does not have the same requirements as a shelter, communication site, flood response team, or large commercial facility.

A gasoline generator is often practical for temporary emergency backup. Portable models can be deployed quickly and may provide enough power for lighting, communication equipment, fans, selected appliances, and small pumps. This makes them useful where ease of movement and lower upfront cost are priorities.

A diesel generator becomes more attractive when emergency power may be required for many hours or several days. Larger facilities and response operations may need more sustained output, longer service capability, or a silent enclosed structure that can remain in a fixed location.

Fuel planning must form part of the emergency plan. Gasoline can deteriorate during prolonged storage, while stored diesel also needs protection from water and contamination. Existing equipment can influence the decision as well. A contractor, farm, or emergency organization that already operates diesel machinery may find diesel storage and refueling easier to integrate.

Generator Safety Cannot Be Treated as Optional

Both diesel and gasoline generators produce carbon monoxide and must never be operated inside homes, garages, basements, sheds, or other enclosed spaces. The U.S. Consumer Product Safety Commission advises operating portable generators outdoors, at least 20 feet away from homes and buildings, with the exhaust directed away from doors, windows, and vents.

Electrical connection also requires care. OSHA advises against connecting a portable generator directly to a building’s electrical system unless a suitable transfer switch has been installed by a qualified electrician. Cables should be rated for the expected load, and grounding, bonding, weather protection, and ground-fault protection must follow the generator manufacturer’s instructions and local electrical requirements.

How to Choose the Right Generator Size

The required generator output should be calculated before deciding between diesel and gasoline.

Begin by listing the equipment that may run simultaneously. For each item, record its normal running wattage and, where applicable, its starting demand. Pumps, compressors, refrigerators, and power tools with electric motors may briefly draw several times their normal operating power during startup.

Three figures deserve particular attention:

Continuous Rated Output

This is the power the generator is designed to provide during normal operation. The planned continuous load should remain within this rating rather than relying on maximum output throughout the working period.

Maximum or Surge Output

This temporary capacity helps the generator handle short increases in demand, particularly when motor-driven equipment starts. It should not be treated as the normal operating rating.

Expected Average Load

A generator should have enough reserve capacity to manage load changes without being dramatically larger than necessary. Regular operation at either extremely high or very low load can reduce efficiency and create avoidable operating issues.

For commercial orders, buyers should also confirm:

• Required voltage and frequency
• Single-phase or three-phase output
• Number and type of receptacles
• Electric or recoil starting
• سعة خزان الوقود
• Continuous running time
• AVR or voltage regulation requirements
• Open-frame or silent enclosure
• Wheel kits, handles, or lifting requirements

What Generator Construction Changes in Real Use?

Two generators with similar rated output may behave differently once they begin powering tools or equipment. Engine materials, alternator construction, vibration control, protection systems, and frame design all influence long-term use.

NEWTOP offers both gasoline and diesel generator sets, including open-frame and silent configurations. The current range covers multiple output classes, from compact units for outdoor and backup power to higher-capacity diesel models for commercial and construction applications. Selected NEWTOP generators use copper-winding alternators, steel frames, reinforced engine components, and designs intended to operate in temperatures from -10°C to 50°C.

The differences are easier to understand through actual product configurations.

Gasoline Generator Construction

The NEWTOP NTGR6500H2 provides 5.5 kW rated output and 6.0 kW maximum output. Its engine uses a strengthened 42CrMo forged crankshaft and camshaft, while a SENCI copper-wire alternator supports stable voltage and overload performance. A full steel frame with vibration-absorbing mounts protects the machine during demanding work.

The model also includes a 25 L fuel tank, low-oil warning, and short-circuit protection. These features make the generator suitable for construction sites, small workshops, صيانة الممتلكات, and extended household backup where a gasoline model is still preferred.

Open-Frame Diesel Generator Construction

For medium-to-heavy power requirements, the NEWTOP NTDGR6500X(ه) combines a forged-steel crankshaft, nitrided gears, BOSCH-technology fuel injection, and a copper-winding alternator. The anti-vibration steel frame helps protect the engine and alternator during construction, الزراعية, and commercial operation.

This model provides 4.8/5.0 kVA rated output and up to 5.2/5.5 kVA maximum output, depending on frequency configuration. The product structure reflects the priorities often associated with diesel equipment: load handling, mechanical strength, and stable output over longer working periods.

Silent High-Power Diesel Construction

Where higher output and lower operating noise are needed together, a silent enclosure may be more appropriate than an open frame. The NEWTOP NTDGR16800T combines 11 kW rated output with a 12 kW maximum output, a 42CrMo forged crankshaft, nitrided gear components and a 100% copper SENCI alternator.

Its enclosed body reduces operating noise while providing additional protection for internal components. The model is designed for construction, commercial backup, and other demanding applications where both power capacity and operating environment matter.

These examples show why buyers should compare more than fuel type and horsepower. The alternator, crankshaft, gear structure, protection system, frame, and enclosure can determine how well a generator fits the intended market.

صيانة, أجزاء, and Local Technical Support

A well-maintained gasoline generator can perform more reliably than a neglected diesel unit. Engine type does not replace regular inspection and service.

Before operation, users should check:

• Engine oil level and condition
• Fuel quality and storage condition
• Air and fuel filters
• Cooling airflow
• Cable and receptacle condition
• Battery condition on electric-start models
• إطار, mounts, and fasteners
• Signs of fuel or oil leakage

Backup generators should be started and tested at scheduled intervals. Waiting until an actual power failure to check the generator can leave old fuel, a discharged battery, or an electrical fault undiscovered.

For distributors and commercial buyers, parts support also affects the total ownership experience. Filters, starting components, control panels, voltage regulators, alternator parts, and common engine components should be available without requiring the replacement of the complete generator.

NEWTOP supplies gasoline and diesel generators across multiple power ranges, along with product selection and spare-parts support for wholesale customers. This allows distributors to build a range for households, المقاولون, مزارع, ورش العمل, and commercial backup users rather than relying on one generator type for every application.

Diesel Generator vs Gasoline: Making the Final Decision

Choose a diesel generator when the application involves frequent operation, sustained loads, longer backup periods, or higher-capacity commercial and construction demand. Compare actual fuel consumption, rated output, enclosure, noise, and service access before deciding on a model.

Choose a gasoline generator when portability, lower initial investment, faster deployment, and occasional operation are the main priorities. It is often the more practical option for small businesses, mobile work, temporary construction tasks, and short emergency outages.

The final Diesel Generator vs Gasoline decision should be based on the hours the generator will run, the equipment it must start, the fuel available locally, and the level of downtime the user can accept. Once those requirements are defined, fuel type becomes one part of a much clearer selection process.

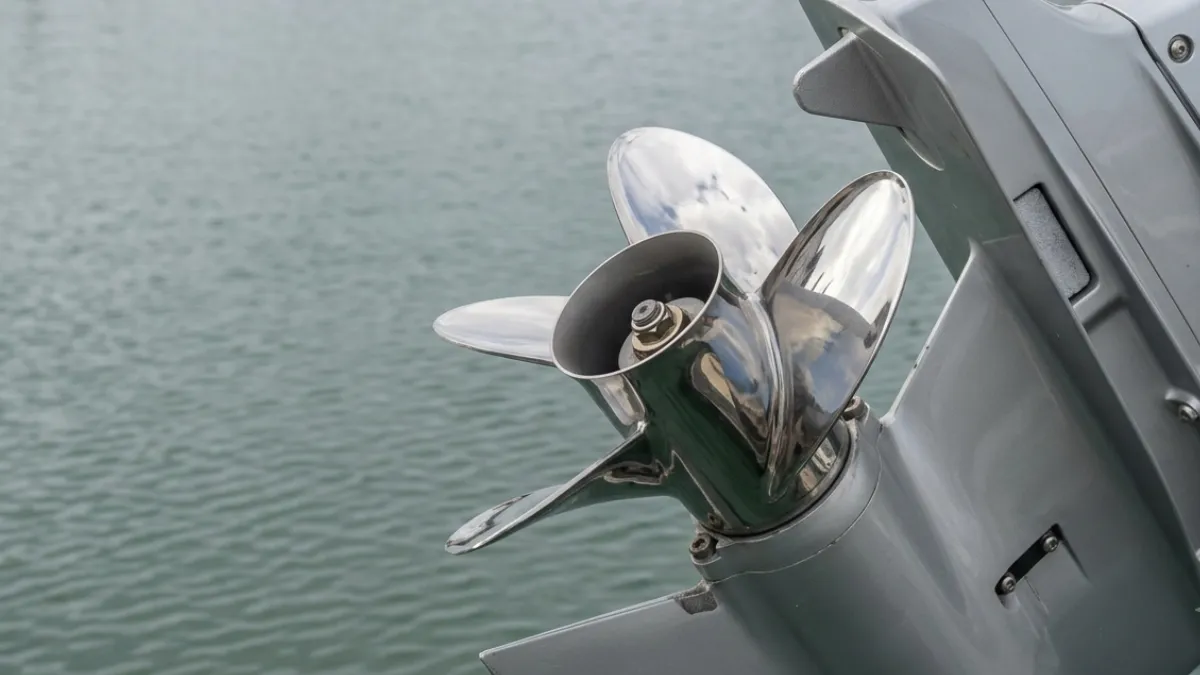

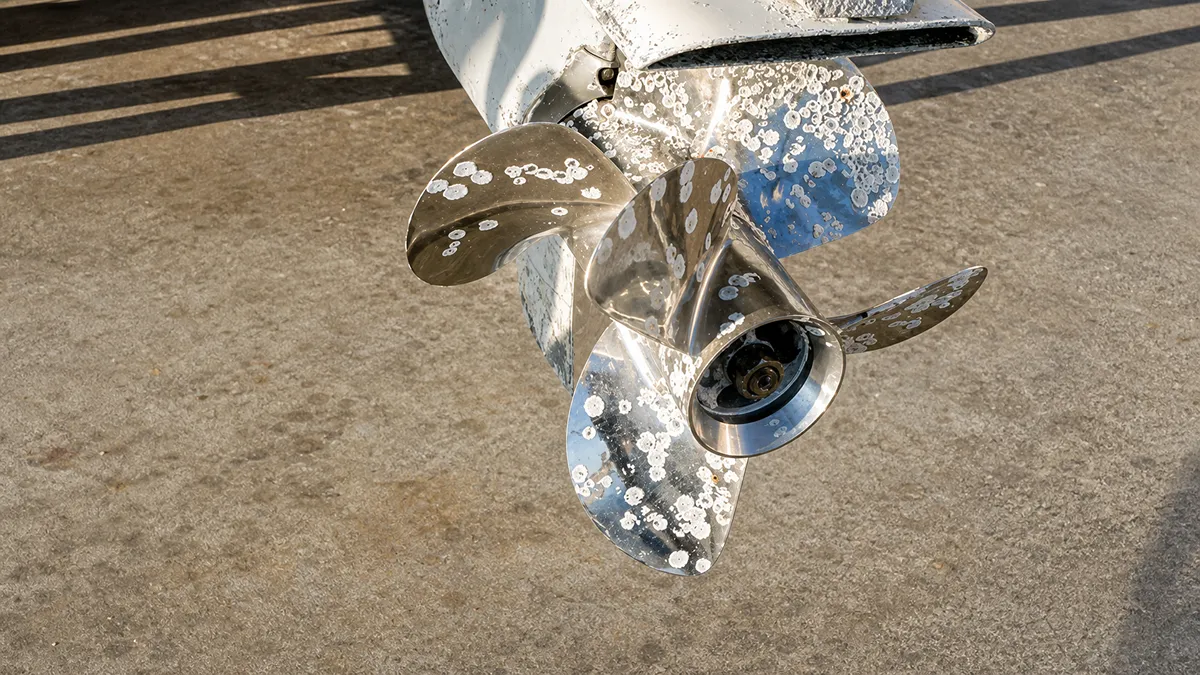

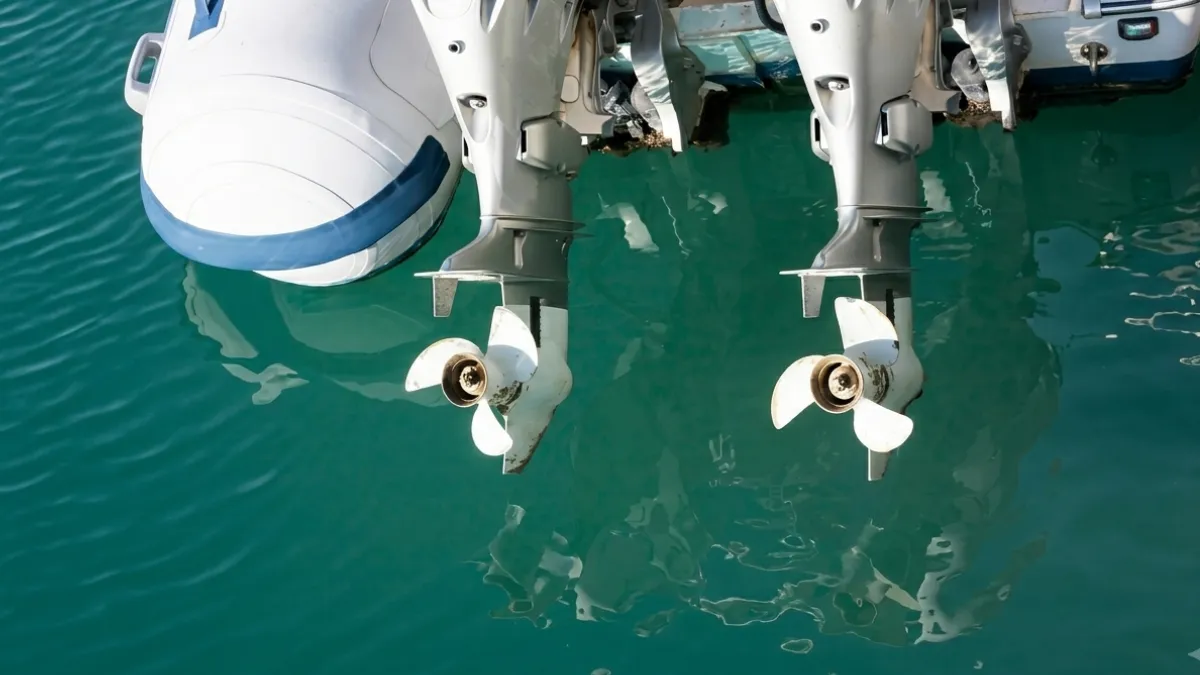

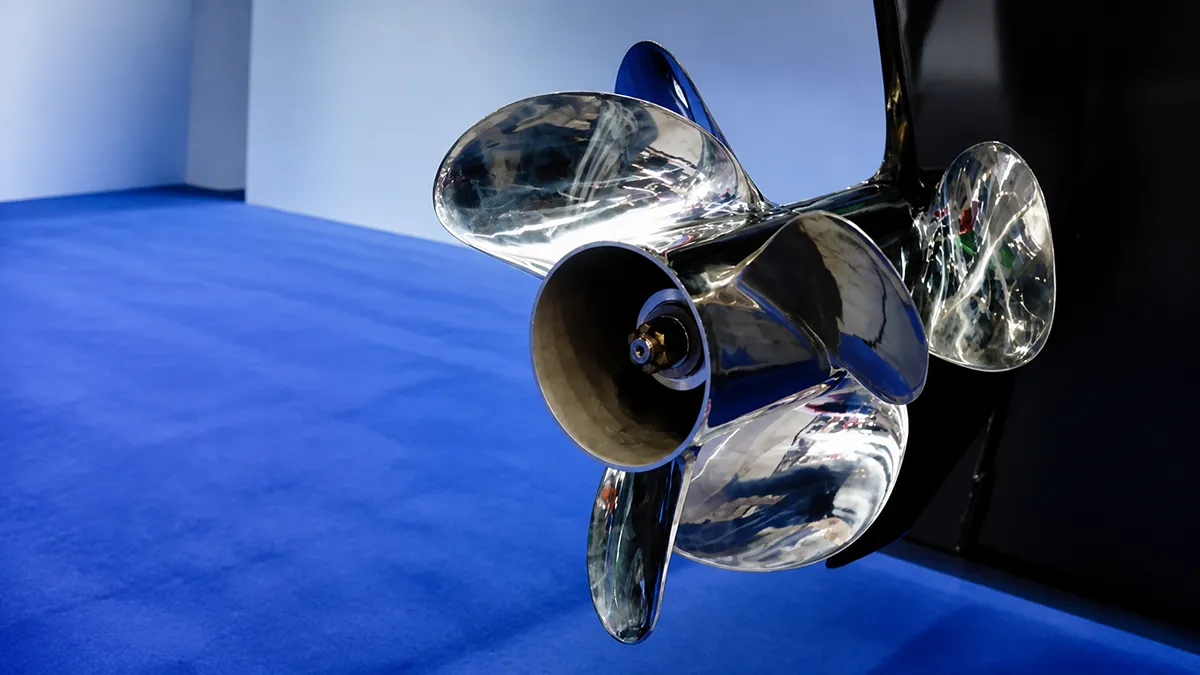

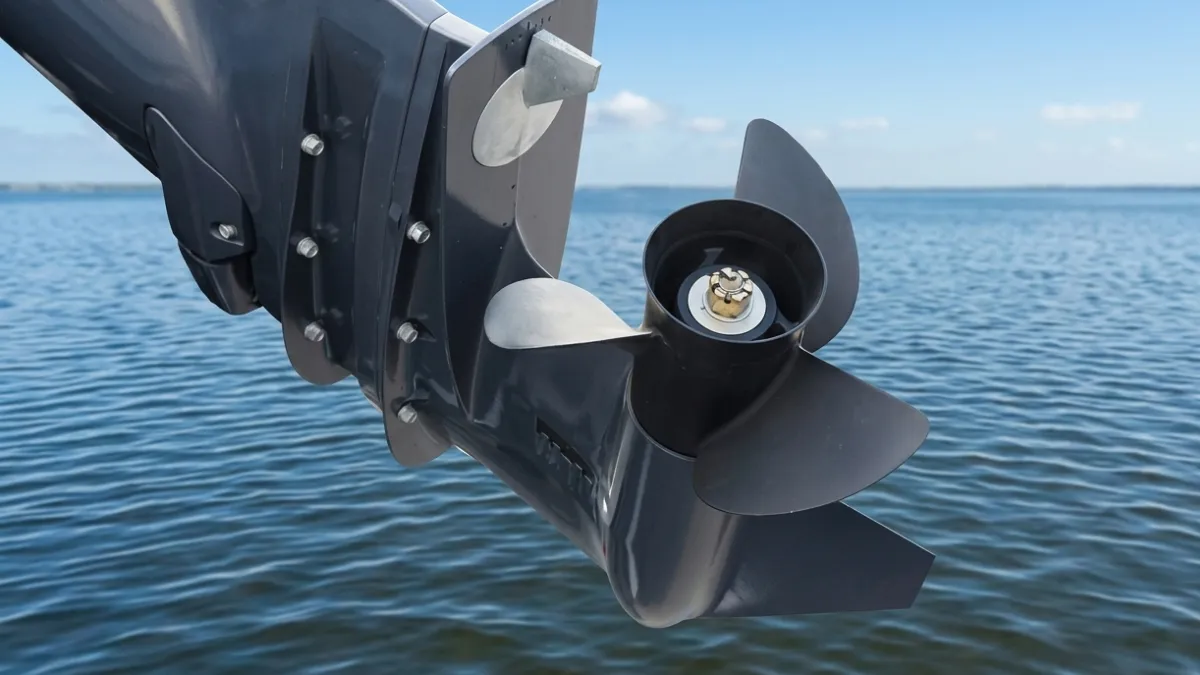

Choosing the right outboard propeller is not simply about finding a model that fits the engine shaft. A propeller directly affects acceleration, top speed, fuel consumption, engine load, وتجربة القوارب الشاملة.

For boat builders, الموزعين, and marine equipment buyers, selecting the wrong propeller can lead to poor performance, excessive vibration, higher fuel costs, and even long-term engine issues.

A reliable propeller selection process should consider several factors, including engine specifications, boat characteristics, ظروف التشغيل, blade design, material choice, and supplier capability.

This guide explains the key points buyers should check before purchasing an outboard propeller and how to make a more accurate selection for different applications.

What Key Information Should You Prepare Before Choosing a Propeller?

Before comparing propeller models, collect accurate information about the engine, boat, and daily use. This reduces fitting errors and gives the supplier enough data to recommend a suitable starting configuration.

Prepare the following details:

Data Category	Metrics to Record
Current Propeller	Diameter, يقذف, rotation, blade count, material, hub splines
Engine Details	Rated HP, gearcase size, target WOT RPM, actual WOT RPM
Boat Profile	طول (LOA), hull shape, operating weight, speed goals
Usage Environment	Primary activity, cruise speed, water conditions (fresh/salt/shallow)
Benchmarks	GPS speed at WOT, time to plane, ventilation in turns

Current Propeller Specifications

Your existing propeller serves as the baseline for any future adjustments. You need exact numbers off the current hub or blades to know which direction to adjust your pitch or diameter.

• Diameter and pitch: Record these numbers (usually stamped on the barrel, like 14 x 19) to establish your starting point.
• Rotation direction: Identify if the prop uses right-hand or left-hand rotation. This matters heavily for twin-engine setups.
• Blades and material: Note if you run a 3-blade or 4-blade design, and whether it is cast aluminum or stainless steel.
• Hub and shaft details: Count the splines on the prop shaft and measure the shaft diameter to ensure your replacement physically fits the gearcase.

Engine Details and WOT RPM Limits

Engine specifications define your operating envelope. Your motor has a specific RPM band where it makes peak power safely, and your prop must keep the engine inside that band.

• HP and gearcase size: Verify your rated horsepower and gearcase dimensions. These dictate which propeller families fit the outboard.
• Target WOT RPM: Find the manufacturer’s recommended Wide Open Throttle (WOT) RPM range. Modern outboards usually target 5,000 ل 6,000 RPM.
• Actual WOT RPM: Measure your current wide-open RPM under a normal load. This tells you if the engine is over-revving or lugging.
• Trim systems: Note if the boat has power trim or trim tabs. These systems dictate how you tune the hull attitude to reach optimal RPM.

Boat Characteristics and Load Profile

Hull design and operating weight directly influence thrust requirements. A heavy pontoon pushes water differently than a light bass boat, demanding a totally different blade geometry.

• Hull dimensions: Document the length overall (LOA), hull material, and bottom shape (like deep-V or flat-bottom). These dictate drag and required lift.
• Operating weight: Calculate your realistic load. Include fuel, الركاب, والعتاد, and livewells.
• Load frequency: Identify if you frequently run heavily loaded. Heavy loads often require stepping down in pitch or moving to a 4-blade prop to maintain thrust.
• Speed targets: Define your present top speed against your desired top speed. This guides the tradeoff between pitch and acceleration.

Usage Profile and Operating Environment

How and where you drive determines the optimal propeller style. You must align the design with your primary on-water activities to get the best efficiency.

• Primary use: Specify if you focus on high-speed cruising, heavy towing for watersports, or commercial work.
• Running speeds: Identify your typical throttle positions. This determines if you optimize for mid-range fuel economy or absolute top-end speed.
• ظروف المياه: Consider your environment. Abrasive, sandy, or shallow waters often demand the durability of stainless steel over standard aluminum.

Real-World Performance Benchmarks

Never buy a new propeller without testing the old one first. You need hard performance data to compare against your post-installation results.

• Baseline test runs: Take the boat out and record maximum RPM and GPS speed at wide-open throttle, trimming up just before the prop cavitates.
• Acceleration metrics: Evaluate your hole shot, the time it takes to get on plane, and the boat’s ability to hold a plane at lower speeds.
• Handling checks: Monitor the steering for signs of propeller ventilation, excessive slip during hard turns, or cavitation in rough chop.

How Do Diameter and Pitch Affect Propeller Performance?

Diameter and pitch are two of the most important measurements in propeller selection. They determine how efficiently an outboard propeller converts engine power into thrust and directly influence acceleration, top speed, كفاءة الوقود, and engine RPM.

Before choosing a replacement propeller, buyers should understand what these two specifications mean and how they work together. A propeller marked as 14 × 19, for example, indicates a 14-inch diameter and a 19-inch pitch. The first number represents diameter, while the second number represents pitch.

For a more detailed explanation of propeller markings and how these measurements affect performance, buyers can refer to our guide on what pitch and diameter mean on an outboard propeller.

Diameter refers to the distance across the full circle made by the rotating blades. A larger diameter generally produces more thrust because it moves more water with each rotation.

Large-diameter propellers are commonly used for:

• Heavy boats
• Commercial applications
• Boats that require strong pulling power
• Low-speed operation

A smaller diameter propeller usually allows higher RPM and may support better top-speed performance on lightweight boats.

يقذف refers to the theoretical distance a propeller moves forward in one complete rotation without considering slip. على سبيل المثال, a 19-inch pitch propeller is designed to move approximately 19 inches per rotation under ideal conditions.

The relationship between pitch and performance is:

Pitch Choice	Performance Effect
Lower pitch	Faster acceleration, stronger thrust, easier engine operation
Higher pitch	Higher potential speed, lower RPM, suitable for light loads

لكن, increasing pitch does not always increase speed. If the pitch is too high, the engine may struggle to reach its recommended RPM range, causing poor acceleration and increased stress.

A proper selection balances pitch, القطر, engine power, and boat load. Many buyers use factory recommendations as a starting point and then adjust based on real operating conditions.

How Does the Number of Blades Influence Speed, Thrust, and Fuel Efficiency?

Blade count dictates the balance between top speed and load capacity. Fewer blades reduce drag for maximum speed, while more blades provide necessary grip for heavy loads.

The Relationship Between Blade Area and Drag

Every propeller blade moving through water creates surface friction and pressure drag. Fewer blades result in a smaller total wetted area, directly translating to lower hydrodynamic drag and higher potential open-water efficiency.

Adding blades increases the Blade Area Ratio (BAR). A higher BAR gives the propeller significantly more grip on the water, reducing slip and ventilation. The trade-off is higher hydrodynamic interference between the blades, demanding more power to turn at the exact same RPM.

How Blade Count Affects Top Speed

Two-blade propellers theoretically offer the highest top speeds on lightly loaded hulls because they encounter minimal drag. For most recreational planing hulls, three-blade designs hit the sweet spot. A well-matched three-blade propeller consistently runs 5% ل 10% faster at wide-open throttle compared to a four-blade setup.

Upgrading to a four-blade propeller usually cuts peak speed by about 2 ل 3 ميلا في الساعة. Yet, these high-blade configurations maintain effective speed much better in rough water or high-trim conditions by actively resisting blowout.

Thrust Capabilities and Load Management

Total thrust depends heavily on the total blade area. A propeller with fewer blades forces each blade to carry a higher unit thrust. Push a low-blade-count prop too hard under a heavy load, and you risk severe cavitation or structural stress at the blade root.

Four-blade and high-BAR three-blade propellers excel at managing demanding workloads. You need these configurations for:

• Heavy Boats: Lifting heavy hulls onto plane quickly.
• Towing Applications: Delivering strong mid-range acceleration.
• Limited Clearances: Maximizing thrust when gearcase size limits the maximum diameter.

Fuel Efficiency and Optimal Engine Loading

For standard recreational setups, a correctly sized three-blade propeller delivers the best steady-cruise fuel economy. The minimal drag allows the outboard to run efficiently near its peak torque band.

Adding a fourth blade increases the physical load on the engine. You almost always need to drop the pitch to keep the wide-open throttle RPM within the manufacturer’s optimal range. On heavily loaded boats, a four-blade propeller can actually improve real-world fuel efficiency. By drastically reducing slip, it holds the boat on plane at lower RPMs, burning less fuel than a three-blade prop struggling to grip the water.

Should You Choose an Aluminum or Stainless Steel Propeller?

Aluminum offers budget-friendly protection for shallow waters and lower horsepower, while stainless steel delivers speed, grip, and durability for high-performance outboards and saltwater environments.

For buyers who want to understand the detailed differences between these two materials, including strength, متانة, صيانة, and application scenarios, our guide on aluminum vs stainless steel outboard motor propellers provides a complete comparison.

Matching Material to Outboard Horsepower

Outboard horsepower directly dictates the ideal propeller material. For motors under 30 حصان, manufacturers almost exclusively equip factory aluminum propellers. Stainless steel options in this range remain scarce and offer little practical performance benefit.

Mid-range engines between 30 و 70 hp pair perfectly with aluminum for general recreational boating. The power output at this level rarely causes severe blade flex, keeping performance stable for everyday use. Once you step up to outboards producing 75 hp and above, the operating dynamics change. These engines generate high torque and push heavier loads, making stainless steel the standard choice to handle the increased thrust without losing blade shape.

Durability and Lower Unit Risk

How a propeller reacts to underwater impacts determines the safety of your lower unit gears. You must evaluate your primary operating environment before making a choice.

• Sacrificial protection: Aluminum acts as a sacrificial component, bending or cracking upon impact to absorb shock and protect lower unit gears.
• Impact transfer: Stainless steel withstands normal wear and minor impacts, but transfers heavy strike forces directly to the prop shaft.
• Shallow hazards: Boaters navigating shallow, stump-filled, or rocky rivers should select aluminum to minimize expensive gearcase repairs.
• Saltwater endurance: Marine environments heavily favor stainless steel due to its superior long-term corrosion resistance.

Hydrodynamic Performance and Handling

Material stiffness heavily influences thrust efficiency. Manufacturers cast aluminum blades thicker to achieve necessary strength, but they still flex under heavy loads. This flexing slightly reduces top-end speed and high-RPM stability. Stiff, thin stainless steel blades maintain their precise pitch and shape under pressure, improving thrust efficiency and maximizing water displacement.

Upgrading to a stainless steel model often yields a 2 ل 3 mph speed gain alongside stronger acceleration for heavy loads. Stainless steel also holds cupping better than aluminum. This structural advantage ensures reliable grip during tight turns and drastically reduces ventilation issues on the water.

Cost Comparison and Lifespan Value

An aluminum propeller costs roughly one-third the price of a comparable stainless steel model. Budget-conscious buyers and boaters who frequently replace damaged props benefit the most from this low upfront cost. The inexpensive replacement strategy makes sense when striking rocks or stumps is a routine risk.

Stainless steel requires a much higher initial investment. It provides exceptional lifespan in deep, obstruction-free waters where impact damage is rare. The long-term value quickly shifts to stainless steel for performance rigs, as the durable material eliminates the need for frequent replacements and maintains optimal fuel efficiency over thousands of hours of use.

How Do Engine Horsepower and Gear Ratio Affect Propeller Selection?

Horsepower dictates the maximum propeller size an engine can efficiently turn, while gear ratio determines shaft speed. معاً, they establish the exact pitch required to hit target WOT RPM.

The Role of Engine Horsepower in Propeller Sizing

Engine horsepower sets the baseline power budget for moving a boat efficiently. A higher horsepower rating allows an outboard to turn a larger diameter or a higher-pitch propeller without struggling. Buyers must match the propeller to the engine’s usable horsepower at the intended operating RPM, rather than looking strictly at peak horsepower marketing numbers.

If you choose an oversized or over-pitched propeller, the engine will lug and fail to reach its intended power band. Undersize the propeller, and the engine will over-rev, leaving valuable performance unused and risking mechanical damage.

How Gear Ratio Determines Propeller Shaft Speed

Gear ratio acts as a primary input that fundamentally changes the final propeller load. It is not just a secondary detail. You calculate propeller shaft RPM directly by dividing the engine RPM by the gear ratio.

A higher numerical gear ratio reduces the prop shaft speed and multiplies torque. To restore the desired boat speed, this setup requires a higher-pitch propeller. على العكس من ذلك, a lower numerical gear ratio spins the propeller faster at a given engine RPM, requiring reduced pitch to prevent the engine from over-revving.

Balancing Pitch and Final RPM for Optimal Performance

Adjusting the gear ratio triggers a chain reaction in pitch selection. Increasing a gear ratio numerically usually requires stepping up the propeller pitch by two to four sizes. Since a single pitch size change typically alters engine speed by 250 ل 350 RPM, pitch adjustments serve as the ideal mechanism for fine-tuning wide-open-throttle (WOT) RPM.

Operating conditions also alter this power dynamic. Heavy boat loads and high elevations demand less pitch to keep the engine from dropping below its optimal power band. For high-RPM outboard designs, manufacturers frequently use reduction ratios of 2.3:1 or higher to properly manage the aggressive propeller shaft speed and hydrodynamic load.

Practical Selection Steps for Outboard Buyers

Start the selection process by identifying the engine’s rated horsepower, gear ratio, and recommended WOT RPM range. From there, execute a systematic testing sequence to dial in the correct specifications:

• Baseline Selection: Select a propeller size that lets the engine reach target RPM under expected load, elevation, and water conditions.
• Pitch Adjustment: Reduce pitch if the engine fails to reach target RPM, or increase pitch if the engine over-revs during initial testing.
• Sea Trial Verification: Conduct a final loaded test run to account for specific real-world variables like hull drag, running weight, and ventilation behavior.

How Does Boat Type Influence the Right Propeller Choice?

Hull design and typical boat load dictate required thrust and RPM. Matching pitch and diameter to your specific vessel type prevents engine lugging and maximizes hydrodynamic efficiency.

High-Speed Planing and Performance Boats

ضوء, performance-focused hulls like bass boats or sport rigs require setups that minimize drag once on plane. Your primary goal is converting engine torque directly into top-end speed while keeping the outboard near its maximum RPM limit.

To achieve this, operators utilize higher pitch and moderate-to-smaller diameter profiles. High-speed setups rely heavily on 3-blade stainless steel propellers, which deliver the durability and thin-blade efficiency needed to push past 50 mph without flexing.

Watersports and Tow-Sport Configurations

Pulling wakeboarders, skiers, or heavy tubes demands a massive initial surge of thrust. Absolute top speed takes a backseat to a strong hole shot and smooth mid-range pulling power.

Tow boats require lower pitch and larger diameter profiles to move heavily ballasted setups without dropping below the engine’s power band. Owners frequently utilize 4-blade propellers to improve low-speed handling, reduce slip, and keep the boat securely on plane.

طوافات, Tritoons, and Heavy Cruisers

These vessels push a massive amount of water. High frontal drag and heavy, variable passenger loads mean your propeller must maximize water displacement rather than chase speed.

Pontoons and heavy cruisers benefit from larger diameter and moderate-to-low pitch to generate adequate low-speed thrust. This exact configuration prevents engine lugging and ensures the motor reaches its specified WOT RPM despite the heavy structural drag.

General Fishing and All-Purpose Vessels

Aluminum fishing boats and versatile center consoles operate across diverse conditions. The ideal setup balances rapid acceleration, mid-range cruise efficiency, and precise low-speed maneuverability around docks or structure.

Most operators pair moderate pitch with 3-blade designs to achieve versatile performance during long runs. When conditions dictate, shifting to 4-blade setups provides better grip offshore or improves shallow-water stern lift on flats boats.

Sailboats and Displacement Hulls

Displacement hulls cannot exceed their theoretical hull speed regardless of applied power. Propeller selection must focus entirely on low-speed thrust and reliable maneuvering in tight quarters.

Operators use large-diameter, low-pitch profiles to push displacement hulls efficiently at modest engine speeds. This approach protects auxiliary outboards from overloading when fighting strong currents or heavy headwinds.

What Operating Conditions Should Buyers Consider?

Propeller selection requires analyzing actual boat weight, typical water conditions, engine RPM limits, and horsepower output to prevent drivetrain damage and maximize fuel efficiency.

Boat Load and Usage Patterns

Evaluating typical operating loads is the first step in propeller selection. A boat behaves entirely differently when running solo compared to a hull weighed down by passengers, heavy gear, full fuel tanks, or towing duties.

Always prop the boat so the engine reaches the upper end of its wide-open-throttle (WOT) rpm range when lightly loaded. This rpm buffer prevents the engine from lugging once you introduce heavy weight.

• Variable Usage: Boats shifting between light solo fishing trips and fully loaded family cruising require either a compromise propeller or a dedicated two-prop setup.
• Heavy-Duty Operations: Towing, ينقذ, and workboats demand high, continuous thrust. These roles favor larger diameter, lower-pitch propellers designed to run efficiently at lower rpm.

Engine RPM Matching and Performance Goals

The propeller acts as the final gear ratio between the engine and the water. It must keep the outboard operating inside the manufacturer-specified WOT rpm range. Operating outside this band degrades fuel efficiency and accelerates mechanical wear.

Pitch adjustments directly dictate engine speed. Increasing pitch by one inch typically decreases WOT rpm by approximately 200 دورة في الدقيقة, while decreasing pitch raises it by the same amount.

• Planing Hulls: These setups require rapid hole shot and target a controlled slip factor of 8-15% at WOT for peak efficiency.
• Displacement Hulls: Slow-speed vessels ignore top-end speed to focus entirely on generating maximum low-end torque.
• Real-World Validation: Empirical WOT testing with proper trim adjustments is the only reliable way to validate rpm matching and fuel burn under actual operating conditions.

Water Environment and Surface Conditions

The physical water environment dictates blade geometry. Rough water causes the hull to pitch, increasing the risk of the propeller breaking the surface. Propellers with increased blade area or aggressive cupping hold water better and reduce ventilation in heavy chop.

Calm water applications allow operators to take the exact opposite approach, prioritizing higher pitch and lower drag designs to push top-end speed.

• Hazardous Environments: Shallow or debris-filled waters guarantee eventual bottom strikes. These areas require durable materials and responsive motor trim capabilities to protect the drivetrain.
• Water Flow Quality: Propellers require clean, undisturbed water to generate optimal thrust. Poor mounting heights or excessive hull turbulence will cause aeration and immediate power loss.

Outboard Horsepower and Structural Demands

Engine output strictly determines the required material strength. High-horsepower outboards, typically rated at 140 hp and above, exert extreme torque that overwhelms weaker metals and causes aluminum blades to flex.

Rigid stainless steel propellers are the primary choice for high-output engines. Stainless maintains its exact designed geometry under heavy loads and high speeds, providing predictable thrust and maximum traction.

• Lower-Horsepower Applications: General-purpose and lower-hp engines perform exceptionally well with aluminum propellers. They offer a cost-effective, impact-forgiving alternative that acts as a sacrificial part during bottom strikes.
• Exhaust Compatibility: You must verify the propeller design integrates correctly with the lower unit’s specific exhaust routing, particularly for through-hub exhaust systems.

What Common Propeller Selection Mistakes Should Buyers Avoid?

Avoiding common propeller selection mistakes—like guessing pitch, ignoring typical loads, or neglecting lower unit fitment—saves fuel, protects the engine, and prevents costly on-water failures.

Misjudging RPM, يقذف, and Load Requirements

Buyers often sabotage outboard performance by selecting a propeller without validating how it impacts the engine’s actual operating range.

• Ignoring the WOT RPM range: Failing to match the propeller to the engine’s recommended Wide Open Throttle (WOT) limits causes the engine to lug under heavy load or over-rev at top speed.
• Prioritizing theoretical top speed: Selecting pitch just to hit a high top-speed number ignores the inverse effect pitch has on RPM and low-end acceleration.
• Testing on an empty boat: Finalizing a prop choice with a light hull gives false data. The boat will struggle to plane once fully loaded with passengers, والعتاد, والوقود.

Treat the manufacturer’s specified WOT RPM as a hard constraint. You must hit this target under normal, real-world operating loads to ensure efficient running and long engine life.

Overlooking Blade Count and Material Trade-Offs

Many buyers mistakenly believe that simply adding blades or buying the cheapest material will fix performance issues. Every design change shifts the performance curve.

• Assuming more blades equal better performance: Buyers often switch from three to four blades hoping for an outright upgrade, not realizing the extra drag typically drops WOT RPM by 50 ل 150 دورة في الدقيقة.
• Shopping by material price: Choosing aluminum over stainless steel strictly to save money ignores your actual environment. Soft aluminum deforms under high load, while stainless steel maintains its shape and efficiency at high speeds.
• Ignoring the primary use case: Buying a propeller designed for fast, solo runs fails if you spend 80% of your time towing wakeboarders or carrying a heavy crew.

Match the blade geometry and material to your actual daily environment. A high-performance stainless steel prop shines in open water but transfers severe shock to the gearcase if you strike a submerged stump in shallow rivers.

Using Flawed Testing and Adjustment Methods

Troubleshooting a sluggish boat requires a systematic approach. Guessing at propeller specs without proper baseline data leads to wasted money and unresolved engine strain.

• Changing multiple variables at once: Swapping pitch, blade count, and material in a single step makes it impossible to isolate which change improved or hurt performance.
• Ignoring GPS boat speed: Focusing strictly on tachometer readings without verifying actual speed hides secondary issues like extreme prop slip.
• Blaming the prop prematurely: Buyers often fault the propeller for sluggish planing when the real culprit is excessive hull drag, the wrong engine mounting height, or poor trim angle.

Establish a clear baseline with your current setup first. Make single, incremental adjustments—usually starting with pitch—and test the results on the water before changing another variable.

Neglecting Fitment, صيانة, and Spares

Even the perfectly pitched propeller fails if it does not physically integrate with the outboard gearcase or lacks basic maintenance.

• Guessing hub compatibility: Buying a prop without checking spline counts, hub system types, or matching thrust washers leads to stripped splines and lower unit damage.
• Ignoring physical damage: A slightly bent blade or fishing line wrapped around the prop shaft mimics the symptoms of incorrect pitch.
• Running without a spare: Operating without a backup prop leaves you stranded after a severe strike and eliminates your ability to swap to a lower-pitch prop for unexpectedly heavy loads.

Verify fitment against the engine transom tag before purchasing. Inspect the prop hub assembly periodically to catch early signs of slippage or corrosion.

الأفكار النهائية

Buyers should evaluate engine specifications, boat type, ظروف التشغيل, blade design, material choice, and supplier reliability when bulk buying outboard motor propellers.

The right propeller improves acceleration, كفاءة الوقود, handling, and engine performance, while the wrong choice can reduce efficiency and increase operating costs.

للموزعين, boat manufacturers, and marine equipment companies, working with an experienced outboard propeller supplier provides better product consistency and long-term support.

With advanced manufacturing capability, precision-balanced aluminum and stainless steel propellers, and OEM/ODM production experience, NEWTOP helps global partners develop reliable propeller solutions for different marine applications.

الأسئلة المتداولة

An outboard propeller works in one of the harshest environments on a boat. Every trip exposes it to sand, rocks, floating debris, shallow water, and continuous high-speed rotation. The challenge is that propeller damage often develops slowly. A tiny chip today may become a crack tomorrow, while slight vibration can eventually damage bearings, الأختام, or even the lower unit. Learning how to recognize the early warning signs helps boat owners avoid expensive repairs, improve fuel economy, and maintain safe performance on the water.

في هذا الدليل, you’ll learn the most common signs of outboard propeller damage, how to inspect your propeller correctly, when repairs are practical, and when replacement is the better long-term solution.

Why Early Propeller Damage Detection Matters

Direct Performance and Efficiency Impacts

A compromised propeller immediately degrades how your vessel moves through the water. Minor blade distortions force the engine to work outside its optimal load range, dragging down overall performance.

• Disrupted hydrodynamics: Damaged blades alter water flow, resulting in lower top speeds and weaker acceleration.
• RPM restrictions: Altered effective يقذف prevents the engine from hitting its designated wide-open throttle RPM.
• Fuel waste: Reduced propeller efficiency forces the outboard to work harder, significantly increasing fuel consumption.
• Vibration and handling: Imbalanced blades induce vibration that impairs steering precision and degrades overall ride comfort.

Preventing Secondary Mechanical Failures

Ignoring a damaged propeller transfers stress directly to your outboard’s internal drivetrain. What starts as a bent blade quickly compromises seals and bearings deep inside the lower unit.

• Contaminated gear oil: Unnoticed cracks near the submerged fin often cause water ingress and gear oil contamination.
• Engine stress: Deformed propellers alter engine load, causing harmful under-revving or over-revving that stresses internal components.
• Accelerated fatigue: Continuous vibration from an imbalanced prop accelerates structural fatigue in gearcase bearings, driveshafts, and engine mounts.
• Overheating risks: Combined with restricted water inlets, poor propeller condition elevates the risk of severe engine overheating.

Vessel Safety and Operational Reliability

Propeller condition dictates your physical control over the vessel. Failing to spot damage early puts both crew and cargo at risk during critical maneuvers.

• Sudden propulsion loss: A progressively failing hub or weakened blade can fracture under load, causing an immediate loss of usable propulsion.
• Collision hazards: Degraded handling and delayed acceleration reduce maneuverability around obstacles, increasing collision risks.
• Schedule integrity: Timely detection minimizes unscheduled downtime, protecting schedule integrity for commercial, charter, and rescue operations.

The Economic Case for Early Intervention

The financial logic is straightforward. Swapping a damaged propeller costs a fraction of the repair bills required if you leave a compromised unit attached to your motor.

• Low-cost intervention: Propeller inspection and replacement represent a fraction of the cost of total engine or lower unit repairs.
• Halting financial bleed: Catching damage early halts compounding financial losses from excess fuel burn and accelerated part wear.
• Avoiding major rebuilds: Ignoring early indicators frequently leads to expensive gearcase rebuilds, seal replacements, and powerhead repairs.

The First Visible Signs of Outboard Propeller Damage

Early detection of outboard propeller damage—like minor nicks, paint wear, or slight bends—prevents escalating fuel costs, vibration-induced drivetrain wear, and sudden propulsion failure.

Paint Deterioration and Superficial Scratches

We often dismiss worn paint as normal wear and tear, but localized paint wear on the blades or hub points to frequent minor impacts with sand or small debris. It acts as the first warning sign before structural bending occurs.

You will typically notice fine scratches appearing on the leading edge first. These surface abrasions usually precede deeper structural wear. Once the protective coating strips away, the exposed bare metal patches create immediate vulnerabilities for accelerated corrosion in saltwater environments.

Nicks, Chips, and Minor Dents

A perfectly smooth edge is essential for hydrodynamic efficiency. Small chips along the leading edge disrupt water flow and increase the risk of cavitation. This turbulent water causes pressure drops that erode the surrounding metal.

Shallow dents on the blade surfaces serve as the earliest structural deformities detectable without specialized tools. Look closely at the trailing edge during inspections. Early material loss at the trailing edge directly impacts the grip and lift of the propeller, which reduces your acceleration and top-end speed.

Subtle Blade Deformation and Bending

Propellers operate under immense load, and even a slight geometric change throws off the balance of the entire drive system. Slightly bent blade tips clearly indicate previous contact with rocks or a hard bottom.

To spot these issues, view the propeller straight from the front. Visible asymmetry suggests uneven deformation from one-sided impacts. Micro warping or twisting alters the pitch and load distribution across the blades. This forces the engine to burn more fuel to maintain your normal cruising speed.

Localized Corrosion and Cavitation Pitting

Material degradation compromises the strength of the unit. Small corrosion pits or powdery white oxidation on aluminum propellers mark areas of material weakening. These spots quickly expand if left unchecked.

Rough, sandblasted patches near high-load regions indicate early cavitation erosion. As vapor bubbles collapse against the metal, they blast away the surface layer. Repeated erosion gradually thins out sections near the leading edge, making them prone to cracking during high-RPM operation.

Visible Hub Misalignment and Scoring

The hub absorbs shift shock and acts as the critical link between the engine and the blades. Scoring or distortion around the hub collar hints at abnormal stress or improper installation. You can test the integrity of the internal rubber bushing with a quick visual diagnostic.

Draw a straight line across the hub and barrel, run the boat under load, and check the marks. Misaligned diagnostic marker lines visually confirm internal hub slippage. You should also check for flattened or peened edges, which reflect a history of running the outboard through shallow, rocky water.

How Vibration, ضوضاء, and Poor Acceleration Reveal Damage

Propeller damage rarely announces itself with a catastrophic failure. It subtly degrades hydrodynamics, sending mechanical warnings through vibration, unusual noise, and sluggish performance that operators must decode.

The Mechanics of Propeller-Induced Vibration

Even minor propeller damage immediately disrupts hydrodynamic balance. When blades hit underwater objects, bent edges or missing metal shift the center of mass off the rotational axis. This mechanical imbalance forces the driveline to absorb cyclical stress.

• Center of mass shift: Bent blades or chipped edges create a mechanical imbalance away from the rotational axis.
• Hydrodynamic distortion: Altered blade geometry changes lift and thrust, placing uneven loads on the shaft and gears.
• RPM sensitivity: Vibrations peak at low to mid RPMs when the propeller works hardest to push the boat onto plane.
• Feedback transmission: Cyclical imbalances travel straight through the propshaft into the steering wheel, transom, and deck.

Translating Noise into Specific Driveline Issues

An outboard should produce a steady acoustic profile under load. When a propeller sustains damage, it introduces turbulence and mechanical interference that change the sound signature completely.

• Cavitation sounds: Damaged blades create low-pressure zones that spawn cavitation bubbles, producing distinct crackling, buzzing, or hissing noises.
• Engine stutter: Uneven thrust generation forces the motor to pulse audibly during hard acceleration runs.
• Lower unit rattle: Impact forces transfer directly into the lower unit, making gears and bearings rumble as they absorb the shock.
• Secondary wear indicators: Prolonged operation with an unbalanced prop causes propshaft bearings to grind or gearcases to emit a high-pitched whine.

Recognizing Performance Loss and Sluggish Acceleration

Physical damage directly compromises grip in the water. This hydrodynamic inefficiency forces the engine to burn more fuel while delivering less forward momentum.

• Increased propeller slip: Physical damage stops the efficient conversion of engine torque into actual forward thrust.
• Weak hole shot: A sluggish transition to plane serves as the primary indicator of blade distortion.
• Speed reduction: Minor imperfections trigger measurable drops in top speed and alter operating RPMs at specific throttle settings.
• Baseline comparison: Comparing current speed and wide-open throttle (WOT) RPM against historical metrics isolates propeller inefficiency from actual engine power loss.

Diagnostic Steps to Confirm the Root Cause

You cannot fix a driveline issue based purely on operator feel. Technicians rely on a strict diagnostic sequence to separate propeller damage from internal engine faults.

• Visual inspection: Check the blades thoroughly for bends, nicks, gouges, cracks, or unequal marine growth.
• Shaft examination: Look at the prop shaft for visible bends, binding during manual rotation, or fishing line cutting into the seals.
• Isolation test: Run the engine safely in gear without the propeller installed to see if the vibration stops.
• Secondary component check: Evaluate engine mounts and fuel delivery systems if symptoms persist after installing a known-good propeller.

How to Inspect Blade Edges, Hub Area, and Shaft Contact

A systematic inspection of blade geometry, hub integrity, and shaft contact points prevents catastrophic lower unit failures, stops vibration, and ensures peak propulsive efficiency.

Inspection Zone	Key Defect Indicators	Functional Impact
Blade Edges	Nicks, inward cracks, flattened cup	Hydrodynamic imbalance, التجويف, thrust loss
Hub Assembly	Extruded rubber, misaligned marker lines	Spun hub, complete loss of drive under load
Shaft & Hardware	Twisted splines, worn thrust washer	Fretting, gearcase vibration, thread damage

Blade Edges and Surface Integrity

The geometry of the propeller blade dictates thrust generation and fuel efficiency. Technicians must examine leading edges, trailing edges, and tips for nicks, chips, gouges, or inward-radiating cracks. A damaged or flattened cupped trailing edge directly reduces water hold and increases the risk of early cavitation.

• Profile Consistency: Verify uniform rake angle and pitch across all blades to identify uneven bending or impact damage.
• Balance Check: Mount the propeller horizontally on a hub rod to identify heavy or off-plane blades.
• Clearance Limits: Ensure a minimum 3 mm tip clearance from the anti-cavitation plate to prevent contact under heavy load or blade flex.

Hub Area and Spun Hub Detection

The hub handles the brutal torque transfer from the engine to the water. A compromised rubber bushing acts as a failed mechanical fuse, dropping propulsion completely. Inspectors should check the outer hub barrel and blade roots for dents, ovalization, أو الشقوق شعري. Extruded, melted rubber or heat staining clearly signals a failed bushing.

• Slippage Diagnostic: Draw a marker line across the outer housing, rubber zone, and inner hub, then run the boat under load to check for misalignment.
• Exhaust Path: Inspect internal routing for carbon build-up or structural obstructions that could disturb exhaust flow.

Prop Shaft and Hardware Contact Zones

The connection between the propeller and the driveline must remain perfectly aligned to avoid transferring destructive vibrations into the gearcase. Assess the propeller shaft for straightness, runout, الصدأ, and signs of pitting. Spline teeth on both the shaft and the hub bore require close inspection for rounding, chipping, or twisted profiles.

• Thrust Washer Integrity: Examine seating surfaces for cracks, uneven wear, or deep grooves that throw off propeller alignment.
• Torque Application: Apply the proper manufacturer-specified torque—commonly 40-60 ft-lbs—to prevent fretting or thread damage.

Integrated Inspection Workflow

A standard inspection workflow brings these discrete checks into a repeatable process. You must disable the engine ignition, remove the locking hardware, and safely slide the propeller off the shaft. Cleaning the shaft and hub bore with a degreaser is critical to accurately assess the splines and thrust washer without old marine grease hiding the defects.

• Component Evaluation: Systematically check the hub for spun bushing signs and the blade edges for profile consistency.
• Reassembly Protocol: Reinstall using fresh marine grease, pushing the prop forward until it clicks firmly against the thrust washer.
• Final Securing: Torque the nut to spec and verify the locking hardware is properly engaged.

When Minor Damage Can Still Be Repaired

Minor propeller damage like edge burrs and shallow nicks can be repaired with basic filing, provided the blade geometry remains intact and no cracks or vibration are present.

Identifying Repairable Minor Damage

Before breaking out the tools, you need to confirm the damage is actually minor. Repairable defects are strictly surface-level flaws that do not compromise the structural integrity or hydrodynamic shape of the propeller.

• Surface-level dings: Small burrs, leading-edge nicks, and dents that leave the original blade geometry intact.
• Isolated edge wear: Damage limited entirely to the blade edges, meaning the overall diameter and pitch remain unchanged.
• Smooth operation: Propellers that continue to push the boat efficiently without inducing unusual vibration.
• Structural soundness: A complete absence of visible cracks or physical deformation during visual inspection.

If the propeller still performs well and the shaft runs true, you are likely dealing with cosmetic or minor edge wear.

Indicators of Severe Damage

Not all impacts result in a quick fix. Some structural flaws demand immediate professional intervention or a complete replacement to protect your gearcase.

• Visible cracks: Fractures in the blade or hub area, which usually require professional welding or replacement.
• Blade deformation: Noticeable bending or twist across one or multiple propeller blades.
• Severe vibration: Shaking immediately following an impact, signaling a potential mass imbalance.
• Drivetrain impact: Damage extending to the prop shaft, seal, or gear case after a hard strike.
• Die-cast limitations: Die-cast propellers displaying structural flaws, as marine professionals routinely classify these as non-repairable.

Operating with any of these severe defects transfers immense stress directly to your lower unit bearings and seals.

DIY Repair Methods and Discipline

Fixing minor edge damage requires precision and restraint. The goal is to smooth the water flow, not redesign the blade.

• Clean the propeller: Remove all marine growth, الأوساخ, and oil to accurately assess the damage profile.
• File flat: Gently use a coarse or mill bastard file, keeping the tool flat to avoid reshaping the blade.
• Minimize removal: Take off only the absolute minimum amount of metal necessary to smooth out the burr or nick.
• Know when to stop: Cease filing the exact moment the raised metal disappears to preserve blade balance and efficiency.
• Polish the edge: Refine the filed area with fine sandpaper and polish it to reduce hydrodynamic drag and resist corrosion.

Over-filing a single blade shifts the center of mass, transforming a simple nick into a permanent vibration problem.

Deciding Between Repair and Replacement

Knowing when to stop trying to salvage a damaged propeller saves money and prevents unexpected breakdowns on the water.

• Owner repairs: Best suited for slight burrs and minor dings that need only light, controlled filing.
• Professional shops: Necessary for straightening bends, balancing, and checking for hidden cracks using dye or probe scanning.
• Replacement threshold: The smarter financial choice if repair costs exceed 50% of the propeller’s total replacement value.
• Spare recovery: Keeping a spare propeller onboard acts as the ultimate fail-safe if minor damage rapidly worsens during a trip.

Treat your propeller as a consumable wear part. Upgrading to a new unit is significantly cheaper than rebuilding a blown gearcase caused by running an unbalanced prop.

When Early Replacement Is the Safer Choice

Certain types of damage should not be repaired because they increase the risk of sudden failure.

Replacement is usually recommended under the following conditions.

Damage Type	Replace Immediately?	Reason
Large blade cracks	نعم	High risk of blade separation
Missing blade section	نعم	Severe imbalance
Bent propeller shaft	نعم	Can damage gearbox
Multiple damaged blades	نعم	Difficult to restore accurately
Severe corrosion	نعم	Reduced structural strength
Repeated repaired cracks	نعم	Metal fatigue continues to grow

Choose NEWTOP for Reliable Outboard Propeller Performance

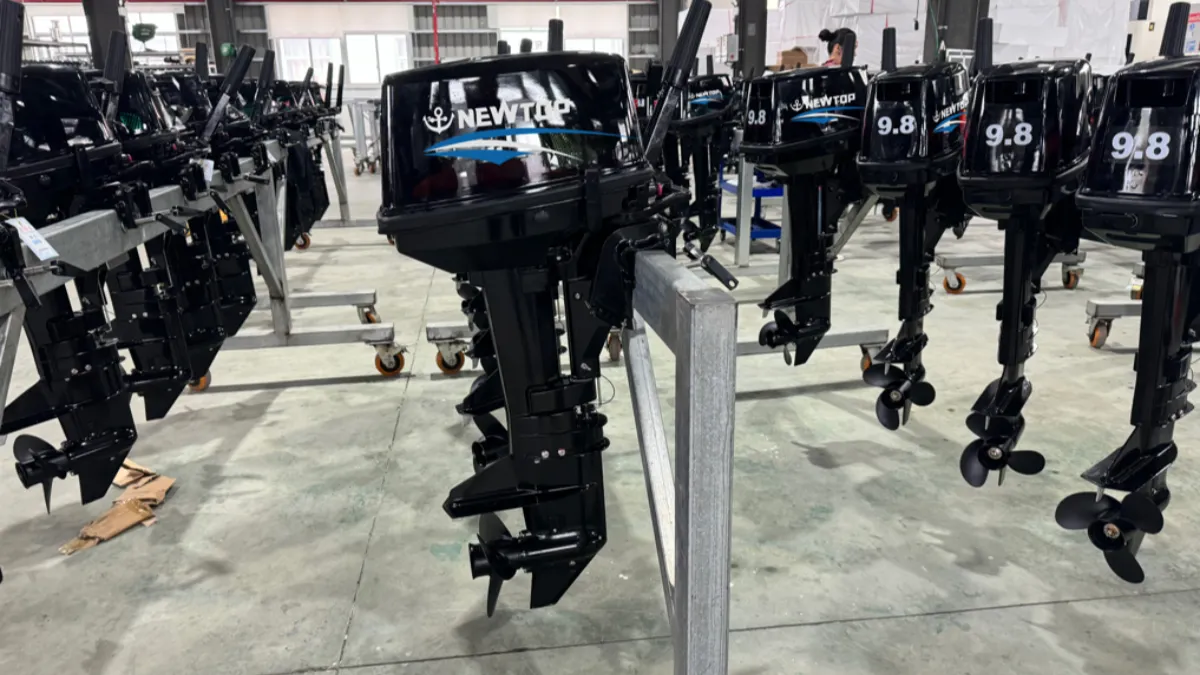

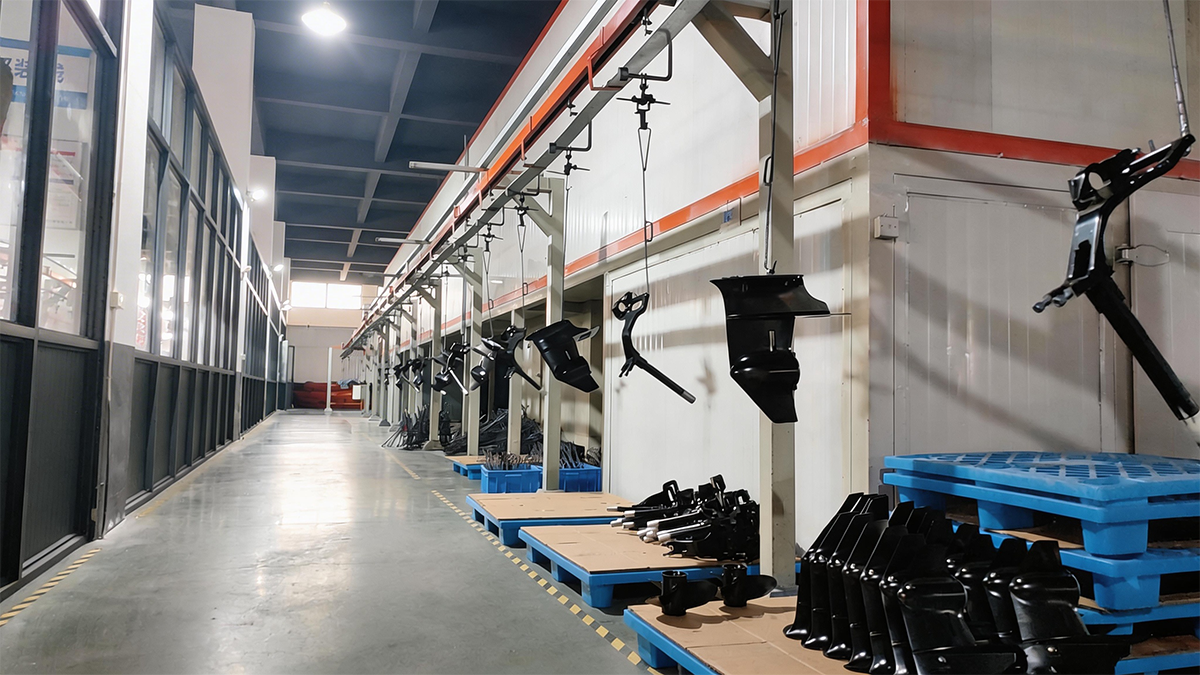

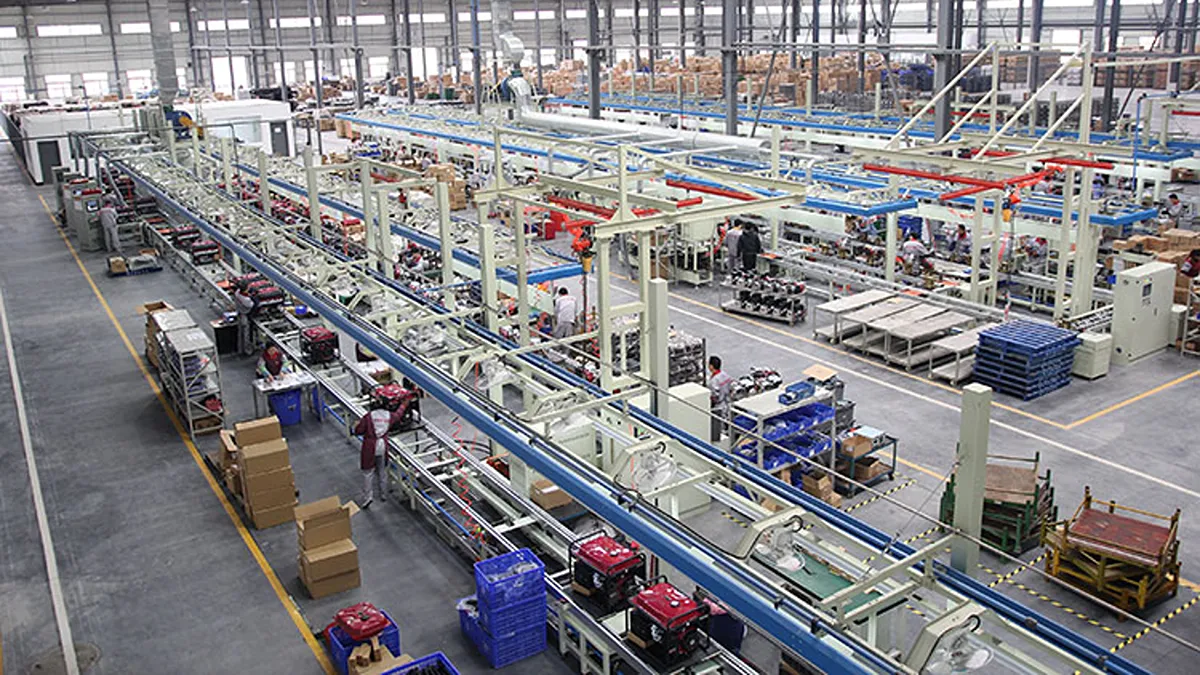

A durable propeller begins with dependable manufacturing. في نيوتوب, we produce precision-balanced aluminum and stainless steel outboard propellers designed to deliver stable performance, عملية سلسة, and long service life across a wide range of marine applications.

Our manufacturing process combines advanced CNC machining, strict dimensional inspection, dynamic balancing, and comprehensive quality testing to ensure every propeller meets consistent performance standards before shipment. Whether you need replacement propellers for aftermarket distribution or OEM production for your own brand, NEWTOP offers flexible manufacturing solutions backed by reliable production capacity and global export experience.

وتشمل المزايا الرئيسية:

• CCS and ECE certified quality for reliable performance and international market requirements.
• Premium materials — aluminum propellers use specially formulated aluminum-magnesium alloy for high strength and toughness, while stainless steel propellers use duplex stainless steel with better yield strength and corrosion resistance.
• Integrated molding technology — propeller blanks are formed with dedicated molds without welding, improving structural strength and durability.
• Precision hub pressing and CNC machining — one-piece pressed hubs improve dynamic balance, while CNC-machined blades ensure consistent geometry and stable thrust performance.

If you’re looking for a trusted outboard motor propeller manufacturer for wholesale supply or customized production, contact NEWTOP today. Our engineering and production teams are ready to help you select the right propeller solution for your market while ensuring consistent quality and long-term supply.

الأسئلة المتداولة
