Choosing the right string trimmer head can affect cutting performance, line consumption, machine load, オペレーターの効率性. A head designed for light lawn trimming may not be suitable for dense weeds or brush, while a heavy-duty blade system can be unnecessary for simple grass edging.

Broadly speaking, string trimmer heads can be classified in several ways, including feeding mechanism, line loading method, cutting medium, line outlet configuration, and blade design. Understanding these differences helps users select a cutting system that matches the machine and the job.

This guide explains the main types of trimmer heads, how they work, what applications they suit, and how to check compatibility before replacing one.

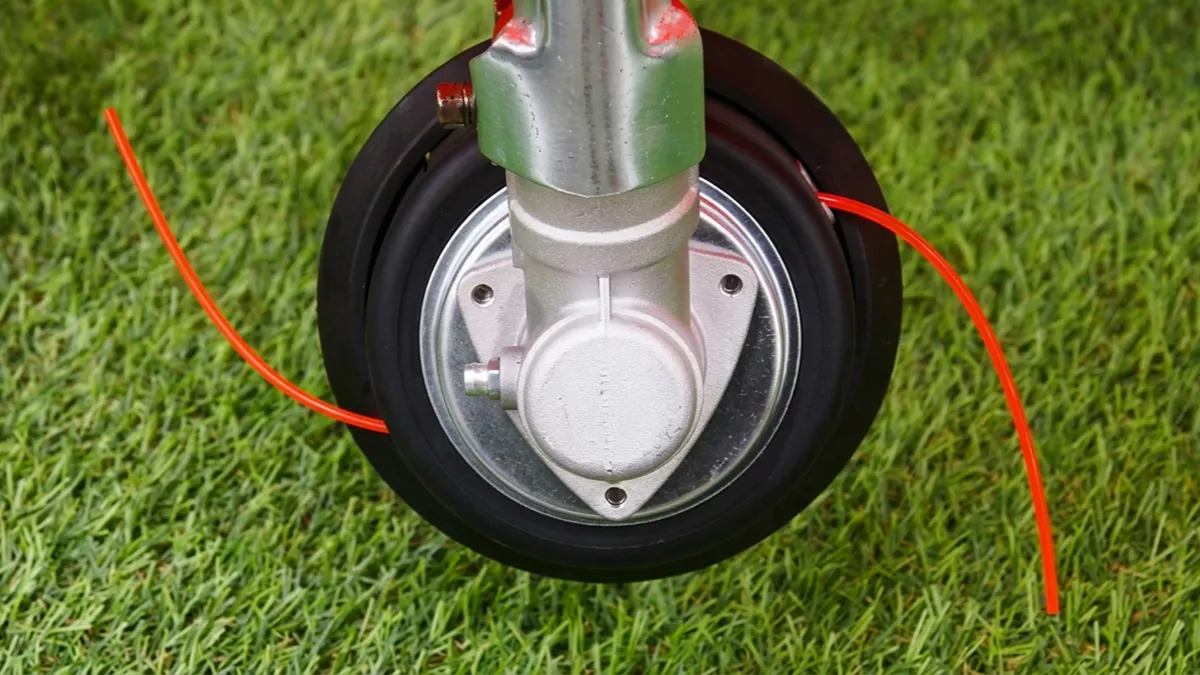

What Is a String Trimmer Head?

あ string trimmer head is the cutting assembly installed at the bottom of a string trimmer or brush cutter shaft. It holds the cutting line and controls how the line is released as the head rotates. When the engine or motor drives the shaft, the trimmer head spins at high speed, causing the nylon line to extend outward and cut grass, 雑草, and other light vegetation.

Main Components of a String Trimmer Head

A typical string trimmer head consists of several key components. The exact structure depends on the head type, but the main parts usually include:

• Housing: The outer body protects the internal components and holds the cutting system together.
• Spool: Used in spool-type heads to store the wound nylon line.
• Trimmer Line: The nylon cutting material that contacts and cuts grass and weeds.
• Feed Mechanism: Controls how additional line is released. Bump feed heads use a bump mechanism, while automatic-feed designs use an internal release system.
• Bump Knob: Found on many bump feed heads. It allows the operator to release more line by tapping the head against the ground.
• Cover or Cap: Holds the spool and internal parts in place and allows access for line replacement.
• Mounting Nut or Adapter: Connects the trimmer head to the machine’s drive shaft. The thread and mounting system must match the trimmer.
• Eyelets or Line Openings: Guide the nylon line from the inside of the head to the outside during operation.

How Are String Trimmer Heads Classified?

String trimmer heads can be classified from several different angles because one head can belong to more than one category at the same time.

The most common classification methods are:

• By feeding mechanism: bump feed, automatic feed, and fixed line.
• By line loading method: manual wind, easy-load/speed-feed, and pre-wound spool.
• By cutting medium: nylon line, metal blade, wire, or wire brush.
• By line outlet configuration: single-line, dual-line, and multi-line.
• By blade design: 2-tooth, 3-tooth, 4-tooth, circular saw, and cut-out blade designs.

Different Types of String Trimmer Head Comparison

注記: The recommended line diameter ranges shown below are industry reference values only. Actual line compatibility may vary depending on the trimmer head design, machine power, and manufacturer specifications. Always check the user manual or product specifications before selecting a trimmer line.

Types of String Trimmer Heads by Feeding Mechanism

The feeding mechanism determines how the cutting line is released during operation. It directly affects user convenience, line consumption, and maintenance requirements. Different feeding systems are designed for different working conditions, from occasional lawn trimming to frequent professional landscaping tasks. The most common feeding methods include bump feed, automatic feed, and fixed line systems, each offering a different balance between control, 効率, and simplicity.

Bump Feed Trimmer Heads

あ bump feed trimmer head uses a spool system that releases additional nylon line when the operator taps the rotating head against the ground. The impact activates a mechanical feeding mechanism, allowing centrifugal force to pull more line through the outlet holes. This design provides good control because users can decide when to extend the line. Its advantages include simple operation, wide compatibility, メンテナンスも簡単. しかし, the bump knob and internal components may wear after frequent ground contact, especially in commercial applications. Bump feed heads are widely used for general grass cutting, lawn edging, and weed trimming.

Explore NEWTOP’s trimmer head solutions for brush cutters to find the right replacement option for your application.

Automatic Feed Trimmer Heads

アン automatic feed trimmer head uses an internal mechanism to release cutting line automatically during operation without requiring the operator to bump the head. Depending on the design, the system may use centrifugal force, a spring mechanism, or a preset feeding structure to maintain the correct line length. The main advantage is improved convenience, especially when covering large areas where frequent manual adjustment is inefficient. しかし, automatic feed systems may consume more line if they release excessive length, and their internal mechanisms usually require more precise manufacturing compared with bump feed designs.

Fixed Line Trimmer Heads

あ fixed line trimmer head works differently from spool-based systems because it uses individual pre-cut pieces of nylon line inserted directly into the head. 動作中, the fixed line rotates with the head and cuts vegetation through high-speed impact. This structure eliminates spool winding problems and allows quick line replacement, making it suitable for users who prefer simple maintenance. Fixed line heads are often used with thicker line for tougher grass and weeds. The main limitation is that the operator must manually replace worn line sections instead of extending line automatically during cutting.

Types of String Trimmer Heads by Line Loading Method

The line loading method describes how new cutting line is installed into the trimmer head. While all line-based heads perform the same basic cutting function, their loading designs can greatly affect replacement speed and user experience. Traditional manual winding systems focus on simple structure and reliability, while modern easy-load and pre-wound spool designs are developed to reduce downtime and make maintenance easier.

Manual Wind Trimmer Heads

あ manual wind trimmer head requires the operator to manually wrap nylon line around an internal spool before installation. The line must be wound evenly and in the correct direction to ensure smooth feeding during operation. This design is one of the most traditional and widely used systems because of its simple structure, low manufacturing cost, and reliable performance. しかし, replacing line takes more time compared with modern easy-load systems, and incorrect winding can cause line jams or uneven feeding. Manual wind heads are commonly used in residential and professional-grade trimmers where durability and cost efficiency are important.

Easy Load / Speed Feed Trimmer Heads

アン easy load or speed feed trimmer head is designed to simplify the line replacement process by reducing the need to disassemble the spool or manually wind the entire line. In many designs, the operator inserts the line directly through the head and rotates the spool to load it evenly. This system improves maintenance efficiency and reduces downtime, making it popular among professional landscapers and commercial users. The main advantage is faster line installation, while the disadvantage is that the structure is usually more complex and may require higher manufacturing precision compared with traditional manual wind heads.

Pre-Wound Spool Trimmer Heads

あ pre-wound spool trimmer head uses a replacement spool that has nylon line already installed by the manufacturer. When the line is exhausted, users simply remove the old spool and install a new one instead of winding fresh line manually. This provides the fastest and easiest replacement process, especially for occasional users who prioritize convenience. しかし, pre-wound spools usually have higher replacement costs and require users to purchase compatible spool sizes. This type is commonly found on consumer-grade electric and battery-powered trimmers where ease of use is a major purchasing factor.

Types of String Trimmer Heads by Cutting Medium

The cutting medium is the actual material that contacts and removes vegetation. Different materials provide different levels of cutting strength, 柔軟性, 耐久性, そして安全性. Nylon line is commonly used for general grass trimming, while metal blades and wire-based systems are designed for tougher vegetation or specialized applications.

Nylon Line Trimmer Heads

Nylon line trimmer heads are the most common cutting systems used for grass trimmers and 刈払機. They rely on flexible nylon line rotating at high speed to cut grass and weeds through impact force. Different line diameters, shapes, and materials can affect durability, cutting efficiency, and resistance to breakage. Nylon heads offer excellent safety because the flexible line is less likely to cause damage when contacting hard surfaces. しかし, they are less effective against thick brush, woody stems, or dense vegetation. They are ideal for lawn maintenance, trimming edges, and general landscaping applications.

Blade Trimmer Heads

あ blade trimmer head uses rigid metal blades instead of flexible nylon line to provide stronger cutting performance. The rotating blade cuts vegetation through direct contact, making it suitable for thick grass, heavy weeds, and small brush that may quickly wear down nylon line. Blade systems offer higher cutting power and longer service life in demanding applications, but they require stronger machines, proper safety guards, and correct installation. Because metal blades generate higher impact forces, they are mainly used with professional brush cutters rather than lightweight residential string trimmers.

Wire and Wire Brush Trimmer Heads

Wire and wire brush trimmer heads use metal wire elements or brush-style cutting materials to remove tough vegetation, moss, 雑草, and surface growth. Instead of cutting with a sharp edge, the rotating wire creates an abrasive cleaning and cutting action. These heads can be useful for specialized tasks such as removing weeds between paving stones or cleaning hard surfaces.

Types of String Trimmer Heads by Line Outlet Configuration

The line outlet configuration refers to the number and arrangement of cutting line ends extending from the trimmer head. This design affects cutting coverage, 効率, and the load placed on the trimmer motor or engine. Single-line systems are usually designed for lighter applications, while dual-line and multi-line heads provide increased cutting performance for larger areas and heavier grass conditions.

Single-Line Trimmer Heads

あ single-line trimmer head uses one piece of nylon line extending from the head during operation. Because it has fewer moving components and lower rotating resistance, it is often used on lightweight trimmers designed for residential lawn care. Single-line systems provide stable operation, lower line consumption, and easier maintenance compared with multi-line designs. しかし, they generally provide less cutting coverage and lower cutting efficiency when dealing with dense vegetation. They are suitable for light trimming, lawn edges, and areas where precision is more important than maximum cutting speed.

Dual-Line and Multi-Line Trimmer Heads

あ dual-line or multi-line trimmer head uses two or more cutting line ends extending from the head, increasing the number of cutting points during rotation. This design improves cutting efficiency and allows the machine to remove more vegetation with each rotation. Multi-line heads are commonly used for heavier grass and professional landscaping applications. しかし, additional line increases air resistance and places more load on the engine or motor. したがって, these heads require sufficient machine power and proper line diameter selection to maintain performance and avoid excessive wear.

Types of Metal Blade Trimmer Heads by Blade Design

Metal blade heads are mainly used on brush cutters and heavy-duty trimming equipment where nylon line cannot provide enough cutting force. The blade shape, tooth number, and overall structure determine how efficiently the blade cuts different types of vegetation.

2-Tooth Straight Blades

あ 2-tooth straight blade features two cutting edges positioned opposite each other on the blade disc. Its simple design provides good balance, low rotating weight, and efficient cutting performance for lighter vegetation. Because it has fewer teeth, it can maintain high rotational speed with less power demand compared with multi-tooth blades. These blades are commonly used for grass cutting and soft weeds. しかし, they are not designed for dense brush or woody plants because the limited number of cutting edges reduces their ability to handle tougher materials.

3-Tooth Blades

あ 3-tooth blade is one of the most commonly used brush cutter blades because it provides a balance between cutting strength, コントロール, and versatility. The three cutting edges distribute impact force more evenly while maintaining efficient rotation. This design is suitable for medium-density grass, 雑草, and general vegetation management. Compared with 2-tooth blades, 3-tooth designs offer improved cutting coverage, while remaining lightweight enough for many brush cutters.

4-Tooth Blades

あ 4-tooth blade provides additional cutting edges compared with 2-tooth and 3-tooth designs, improving cutting consistency when working through thicker vegetation. The increased number of teeth allows more frequent contact with plants during rotation, which can improve cutting efficiency. しかし, the additional material also increases blade weight and requires appropriate machine power. Four-tooth blades are often used for heavier grass and tougher weeds where users need stronger performance than standard nylon line systems but do not require a circular saw blade.

丸鋸刃

あ circular saw blade uses multiple sharp teeth around the outer edge, similar to a traditional saw. Unlike grass-cutting blades, it is designed to handle much tougher vegetation, including thick brush, small woody stems, and young saplings. The large number of teeth provides aggressive cutting performance, but it also requires higher engine power, correct blade mounting, and professional operating practices. Circular saw blades are typically used with heavy-duty brush cutters and should only be installed on machines specifically designed to support this type of cutting attachment.

Cut-Out and Hollowed Blade Designs

Cut-out and hollowed blade designs use openings or reduced material areas in the blade body to decrease weight while maintaining cutting strength. These designs help reduce rotating mass, improve machine balance, and lower operator fatigue during extended use. The cut-out structure can also improve handling by reducing resistance during rotation. Different opening patterns are developed for specific vegetation conditions, from grass management to heavier brush cutting. As with all metal blades, performance depends on matching the blade design with the brush cutter power, guard system, and intended working environment.

How to Choose the Right Trimmer Head for Your Yard

Start with the vegetation, then consider the machine.

For normal lawn grass and edging, a nylon-line head is usually the most practical choice. A bump-feed or automatic-feed design can make frequent line adjustment easier.

For thick weeds and tall grass, choose a stronger head and a suitable line diameter. If the vegetation becomes woody or brush-like, a compatible metal blade may provide better cutting performance.

You should also consider:

• Machine power: Heavy heads and blades require suitable engine power.
• Cutting material: Nylon line is suitable for general trimming; blades are better for tougher vegetation.
• Line diameter: Thicker line provides greater durability but increases machine load.
• Working frequency: Commercial users may benefit from easy-load or speed-feed systems.
• メンテナンス: A simple head can be preferable when fast servicing is important.

How to Match a Trimmer Head With Line Diameter

Line diameter should match both the trimmer head and machine power.

Thin line is generally suitable for light grass and requires less power to accelerate. Thicker line provides better resistance to wear and breakage and is more suitable for dense grass and weeds.

しかし, using the thickest possible line is not always better. Oversized line can increase engine load, reduce rotational speed, and interfere with the feeding mechanism.

Always check the string trimmer head manufacturer’s recommended line diameter before changing from the original specification.

How to Know if a Trimmer Head Fits Your String Trimmer

A replacement head must match the machine’s mechanical and operating specifications. Check:

• Mounting thread and shaft connection
• Adapter requirements
• Rotation direction
• Maximum line diameter
• Maximum cutting diameter
• Engine or motor power
• Head weight
• Machine model compatibility

The term “universal trimmer head” does not mean that one head fits every string trimmer. Universal products usually support several common mounting systems through adapters.

For wholesale buyers and equipment distributors, checking the exact compatibility list is safer than selecting a head based only on appearance or thread size.

NEWTOP String Trimmer Heads for Different Applications

ニュートップ supplies string trimmer heads and brush cutter cutting accessories for different grass, weed, and vegetation applications. The product range includes different head structures and mounting configurations to support various brush cutter models.

代理店・輸入業者様向け, selecting a cutting head is not only about the individual accessory. The head, nylon line, blade, brush cutter, and application should work as one complete cutting system.

NEWTOP can support customers looking for outdoor power equipment and replacement cutting components for different market requirements, including product selection and wholesale sourcing.

Looking for string trimmer heads or brush cutter cutting systems for your market? Contact NEWTOP to discuss suitable models, 仕様, and sourcing options.

よくある質問

Choosing the right string trimmer line size can make yard work faster, cleaner, and much easier. Use a line that is too thin, and it may snap repeatedly when cutting thick grass or weeds. Choose one that is too thick, and your trimmer may lose cutting speed, use more power, or put extra load on the trimmer head.

それで, what diameter should you use? Is 0.080″ enough for normal grass, or is 0.095″ better for weeds? When does it make sense to move up to 0.105″ or 0.130″?

This guide breaks down common string trimmer line diameters, explains which sizes work best for different yard conditions, and compares popular line shapes. Whether you are maintaining a small lawn or tackling dense weeds and heavy vegetation, you will learn how to match the line to both the job and your trimmer.

What Is String Trimmer Line?

String trimmer line, also called trimmer cord or weed eater line, is the flexible cutting material used by string trimmers and brush cutters. It rotates at high speed around the trimmer head and cuts grass and weeds through impact and friction.

関連書籍: ストリングトリマーヘッドの種類

Most trimmer lines are made from durable nylon or nylon-based materials. Some professional-grade lines use reinforced or co-extruded materials to improve wear resistance and reduce breakage.

The line diameter is one of the most important specifications. Common sizes range from about 0.065 (1.65 mm) inches to 0.155 インチ (3.94 mm), although some heavy-duty machines can use larger diameters.

A larger diameter generally provides:

• Better durability
• Higher resistance to breaking
• Better performance in thick vegetation
• More cutting power for demanding jobs

しかし, thicker does not always mean better. The trimmer head and engine must be designed to handle the selected line.

What String Trimmer Line Sizes Are Available?

String trimmer line is commonly sold by diameter in inches. The most widely used sizes include 0.065″, 0.080″, 0.095″, 0.105″, and 0.130″.

Smaller diameters are suitable for light grass and residential trimming. Medium diameters provide a balance between cutting performance and durability. Larger diameters are designed for thick weeds, dense vegetation, and heavier-duty work.

The table below gives a quick overview:

How to Choose String Trimmer Line Size for Different Grass Types

For soft lawn grass, a smaller line can provide fast cutting with less engine load. For thick, dry, or tough grass, a medium or large diameter is usually more suitable because it can withstand repeated impacts.

Consider three factors:

Grass density: Dense grass creates more resistance against the line.

Stem toughness: Tough weeds and dry vegetation require a stronger cutting line.

Machine power: A larger line needs more rotational energy. A small trimmer may struggle with oversized cord.

短い, Soft Turf and Light Edging

Fine turf species like Kentucky bluegrass, fescue, and ryegrass require a gentle touch to avoid scalping. A thinner diameter protects delicate flower beds, sprinkler heads, and patio edges during routine maintenance.

Using a lightweight cord prevents small electric trimmers from bogging down while spinning. For these manicured areas, rely on the following specifications:

• Recommended diameter: 0.065″ to 0.080″ round line
• Target vegetation: Soft turf kept at standard mowing heights
• Key benefit: Minimizes tearing of thin grass blades

Standard Residential Lawns and Mixed Weeds

Most typical suburban yards feature a mix of regular turf and common weeds like dandelions, clover, and young crabgrass. You need a versatile cord that handles weekly perimeter maintenance along fences, driveways, and trees without breaking every five minutes.

This category hits the sweet spot for mid-range gas and 40-56V battery trimmers, offering a perfect balance between cutting strength and flexibility.

• Recommended diameter: 0.080″ to 0.095″
• Primary application: Default all-purpose residential use
• Optimal equipment: Mid-range gas and 40-56V battery units

Thick Turf, Mature Grass, and Tough Weeds

Neglected yard corners and overgrown sections quickly outmatch standard homeowner line. When facing thick-stemmed weeds like mature plantain or coarse sedges, you need a cord with enough physical mass to maintain its momentum.

A heavier cord slices straight through dense clumps instead of folding over on impact. It also resists rapid fraying and snapping when making repeated contact with retaining walls or concrete foundations.

• Recommended diameter: 0.085″ to 0.110″
• Target vegetation: Mature grass and tough, fibrous stems
• Durability advantage: Survives heavy impact with hard landscape obstacles

Tall Grass, Dense Brush, and Heavy Vegetation

Clearing coarse pasture grass, drainage ditches, nettles, and brambles demands serious cutting power. This rough terrain pushes string trimmers to their absolute limits, often requiring heavy-duty lines to tear through small woody saplings.

Operators working in these extreme conditions frequently switch from round lines to square, serrated, or twisted profiles. These aggressive shapes bite directly into fibrous stems for faster clearing.

• Recommended diameter: 0.110″ and above (often 3.0 mm to 3.3 mm+)
• Equipment requirement: Commercial-grade trimmers or walk-behind brush cutters
• Preferred profiles: Square, serrated, or twisted shapes

Aligning Line Size with Trimmer Power

Matching your cord thickness to the vegetation is only half the battle; the machine must actually possess the torque to spin it. Installing a line thicker than the manufacturer’s maximum rating reduces RPMs, resulting in battered, torn grass instead of clean cuts.

Engine displacement and battery voltage strictly dictate what your machine can handle safely.

• Under 40V Electric/Battery: Requires 0.065″ to 0.080″ line to prevent motor strain and overheating.
• Mid-Power Units (20-30 cc gas or 40-56V battery): Optimized to efficiently spin 0.080″ to 0.095″ line.
• Commercial Units (30 cc+ gas): Built to operate 0.095″ to 0.130″+ line without losing critical tip speed.

What Size Trimmer Line Is Best for Light Grass and Small Yards?

For light grass and small yards, stick strictly to 0.065 or 0.080-inch trimmer line. This range maximizes RPMs on low-voltage equipment while preventing damage to delicate hardscapes.

The Core Size Range: 0.065 に 0.080 Inch

The industry-standard size for light grass and small residential trimming falls strictly between 0.065 そして 0.080 インチ (1.65–2.03 mm). Manufacturers build lightweight consumer trimmer heads specifically around these tolerances to ensure smooth feeding.

A 0.065-inch line is the optimal choice for very light-duty tasks. It excels at touching up short grass and executing clean edges around delicate flower beds without tearing the turf.

A 0.080-inch line provides a slightly more robust, versatile option. It tackles yards requiring regular maintenance and holds up better against minor impacts with garden borders.

Why Thinner Line Suits Small Yard Equipment

Thinner line is highly aerodynamic. This minimal drag allows low-power electric and battery trimmers operating under 40V to maintain high RPMs without overloading the motor.

Using oversized line on small-yard tools causes immediate mechanical stress. It triggers faster battery drain, excessive vibration, and premature wear on drive components.

Round line under 0.080 inches also offers high precision around tight obstacles. You can maneuver close to borders, reducing the risk of scarring tree bark or damaging expensive hardscapes.

Choosing Between 0.065 そして 0.080 Inch

Select 0.065-inch line for small, regularly mowed yards featuring soft turf. It pairs perfectly with low-voltage, lightweight trimmers handling basic detail work.

Upgrade to 0.080-inch line if the yard occasionally features taller grass or small weeds. This diameter performs much better for frequent edging against concrete walkways, where thinner cords snap on contact.

Small gas trimmers under 25 cc handle 0.080-inch line comfortably. It offers better resistance to fraying and snap-offs than thinner alternatives, keeping your workflow steady.

What Size Trimmer Line Is Best for Thick Grass and Weeds?

For thick grass and heavy weeds, the 0.095-inch line is the versatile standard. Step up to 0.105-inch for overgrown stalks, provided your equipment has the power.

The Optimal Range: 0.095″ vs. 0.105″ Line

The 0.095-inch (2.4 mm) line acts as the most versatile option for thick turf and heavy residential yard work. It strikes a balance between cutting power and flexibility, allowing you to clear dense patches without immediately bogging down standard landscape equipment.

The 0.105-inch (2.7 mm) line offers superior strength for overgrown grass, thick-stemmed weeds, and intense fence line clearing. Users should start with the 0.095-inch line and only upgrade to the 0.105-inch variant if the line snaps frequently against dense stalks or hard borders.

Matching Line Size to Equipment Power

Mid-range gas trimmers in the 20 に 30 cc category and 40V+ battery units generate enough torque to run 0.095-inch lines efficiently. These machines can maintain the high rotational speeds required to cut cleanly through tough vegetation.

Low-voltage battery models struggle with heavy lines, often resulting in sluggish performance or severe motor strain. Operators must verify the maximum supported diameter in the equipment manual before installing a thicker string to prevent drive system failure.

How Diameter Affects Cutting Efficiency and Durability

String trimmers rely on tip velocity and weight to perform work. Larger diameters carry more physical mass, delivering the momentum needed to slice right through coarse, fibrous vegetation instead of just bending it over.

Upgrading to a 0.095-inch or 0.105-inch size drastically reduces breakage when striking hard surfaces like concrete walls or wood retaining posts. Selecting the smallest effective diameter for your specific terrain prevents unnecessary engine drag and optimizes battery runtimes for long shifts.

What Size Trimmer Line Is Best for Heavy-Duty Brush?

Heavy-duty brush requires line diameters between 0.110 そして 0.155 インチ. To maintain cutting speed and protect the clutch, always match these thicker lines to commercial-grade engine displacements.

Recommended Line Sizes by Brush Density

Thick, woody brush destroys standard residential trimmer line on impact. To clear dense undergrowth efficiently, you need mass and rigidity. Operators categorize heavy-duty string trimmer line into three primary bands based on vegetation density.

• 0.095 に 0.105 インチ: Suited for heavy weeds, thick grass, and light brush using high-powered residential trimmers.
• 0.110 に 0.130 インチ: Ideal for thick brush, woody shrubs, and dense vegetation in commercial-grade clearing work.
• 0.155 inch and above: Reserved for extreme-duty clearing and heavy commercial applications.

Matching Line Diameter to Engine Displacement

Pushing a thick line through dense brush creates massive drag. Thicker lines resist breakage but demand significantly more engine torque to maintain cutting speed. If your engine lacks the output to spin a heavy line at peak RPM, the trimmer bogs down and batters the vegetation.

• 25 に 35 cc engines: Perform best with 2.7 に 3.0 mm (約. 0.110 インチ) line.
• 40 cc engines: Provide the necessary torque for 3.0 に 3.5 mm (約. 0.130 インチ) line.
• 40 に 50 cc or larger engines: Required to effectively spin 3.5 に 4.5 mm (0.155 inch and thicker) line.

Choosing the Right Line Shape for Heavy Brush

Profile geometry dictates how the line interacts with woody stems. You must weigh raw cutting power against material wear and motor strain.

• Round line: Offers high durability and resists breaking against hard stems, making it a reliable choice for everyday heavy clearing.
• Square, serrated, or twisted line: Delivers a more aggressive cut through thick brush but tends to wear faster.

Aggressive line profiles place higher drag on the trimmer head. You need adequate engine power to prevent the machine from bogging down when those sharp edges bite into thick stalks.

Equipment Limitations and Capacity Bounds

Manufacturers engineer trimmer heads and clutches for specific load limits. Forcing an oversized line into a head not rated for it guarantees mechanical failure.

• Poor cutting performance: Using a line thicker than the trimmer’s rating causes poor cutting performance and accelerates head wear.
• Mechanical overload: Excessive line weight puts unnecessary strain on the engine and clutch system.
• Strict upper limits: Always treat the manufacturer’s specified maximum line diameter as a strict upper limit to protect the equipment.

Round vs Square vs Star-Shaped Trimmer Line

Round line is the most common type. Its smooth surface provides good durability and works well for general grass and weed trimming. It is also less likely to wear unevenly.

Square line has sharper edges that can provide more aggressive cutting on thick grass and weeds. It may be useful for demanding vegetation but can wear differently depending on the working conditions.

Star-shaped or multi-sided line has multiple cutting edges. It is designed to improve cutting efficiency and can perform well on tougher vegetation.

The best shape depends on the job. For everyday lawn maintenance, round line is a reliable choice. For heavier vegetation, square or multi-sided line may provide more aggressive cutting.

Best Applications and Diameter Selection

Match the line shape and diameter directly to the yard conditions and your specific equipment capacity.

• Round Line (0.065-0.095 インチ): Use for regular weekly maintenance on typical residential yards using battery or small gas trimmers.
• Square Line (0.080-0.105 インチ): Step up to this size for tackling overgrown fence lines, ditch banks, and medium-to-heavy vegetation.
• Star-Shaped Line (0.090+ インチ): Reserve these large diameters for heavy-duty cleanup of coarse grasses, thick weeds, and neglected lots.

How to Know Which Trimmer Line Size Your Machine Needs

Match your trimmer line size to your machine’s manual, power output, and the target vegetation. Getting this right maximizes cutting performance and prevents equipment damage.

Check the Owner’s Manual or Trimmer Head

The fastest way to find your required line size is to consult the original documentation. Open your owner’s manual and scan for specifications labeled as cutting line, line diameter, spool capacity, or recommended line size. Manufacturers engineer the trimmer head to operate within these exact tolerances.

If you lost the manual, inspect the equipment directly. You can often find the printed or molded dimensions on the trimmer head, spool cover, or housing. Once you find this number, treat it as a hard limit. Stay strictly within the manufacturer’s specified range rather than choosing by appearance or feel at the hardware store.

Match Line Size to Trimmer Power and Type

Trimmer power directly dictates how thick of a line the motor can spin efficiently. Mismatching the line thickness overloads the drive system and slows down the RPMs.

• Electric and battery-powered trimmers: Generally require smaller diameters, commonly between 0.065 そして 0.080 インチ (1.6 に 2.0 mm).
• Residential gas trimmers: Support mid-range to thicker lines, often ranging from 0.080 に 0.110 インチ.
• Commercial brush cutters: Handle the thickest lines, starting at 0.110 inches and scaling up to 0.155 inches for high-power units.

Matching the line to the motor ensures the tip speed stays high. High tip speed is exactly how the tool slices cleanly through grass instead of just battering it.

Select the Right Diameter for the Vegetation

Once you know what sizes your machine accepts, select the specific diameter based on your yard conditions. Thicker lines deliver more impact force, but they also create more drag.

• 0.065 to 0.080-inch line: Use for light grass, エッジング, sidewalks, and fences.
• 0.080 to 0.095-inch line: Choose for general lawn maintenance and thicker grass.
• 0.095 to 0.110-inch line (or higher): Opt for heavy weeds, dense growth, and woody stems.

The smartest approach is to apply the smallest line size that reliably completes the task. A thinner line cuts cleaner and minimizes mechanical strain on your machine.

Common Mistakes to Avoid

Many operators try to force a heavier line to do a job the machine wasn’t built to handle. This creates a cascade of mechanical and performance issues.

• Overloading the head: Installing a thicker line than the trimmer is designed for drops cutting performance and damages the head assembly.
• Copying old spools blindly: Buying replacement line based solely on the size of the old spool causes errors, especially if a previous owner modified or replaced the trimmer head.
• Ignoring the limits: Exceeding the maximum allowed diameter just because a thicker line physically fits into the spool housing will overheat the motor.

Stick strictly to the manufacturer specifications. A fast-spinning thin line always outcuts a slow, bogging thick line.

Common String Trimmer Line Problems and Solutions

Even the correct diameter can perform poorly if the line is installed or used incorrectly.

How to Replace String Trimmer Line

Replacing trimmer line requires matching the exact diameter to your head style, winding it tightly in the designated direction, and testing the feed mechanism before operation.

Safety Checks and Trimmer Preparation

Preparation ensures you do not accidentally trigger the equipment while working near the cutting head. Securing the tool properly speeds up the replacement process.

• Power disconnection: Disconnect the power source by unplugging the cord, removing the battery, or detaching the spark plug.
• Tool positioning: Place the trimmer on a flat surface with the head facing up to provide clear access to the spool.
• Head identification: Identify the specific head style, such as a standard manual-wrap reel, a bump-feed head, or a quick-load system.

Removing the Old Line and Cleaning the Head

Old debris causes friction and stops new line from feeding properly. You need to clear the housing completely before loading fresh cord.

• Head opening: Open the trimmer head by pressing the side release tabs or twisting off the central bump knob.
• Spool removal: Pull the spool out of the housing and completely unravel any leftover string.
• Debris clearance: Wipe away accumulated grass, dirt, and mud from the spool and housing to prevent future jamming.

Selecting and Cutting the New Trimmer Line

Using the wrong line thickness or leaving ragged edges will cause immediate feed issues. Cut the cord cleanly to match your specific equipment ratings.

• Diameter selection: Select the appropriate diameter for the job, typically ranging from 0.065 inches for light grass to 0.095 inches for heavy weeds.
• Length measurement: Measure and cut the manufacturer-recommended length, which usually falls between 10 そして 25 feet per spool.
• Clean cuts: Use sharp cutters to create clean ends, preventing fraying that makes threading difficult.

Winding the Line Onto the Spool

Loose or crossed lines trap heat and melt together during operation. Winding requires consistent tension and correct alignment.

• Anchor location: Locate the starting anchor hole and the directional arrow printed on the spool.
• Tension application: Wind the line tightly and evenly side-to-side in the direction of the arrow to avoid overlapping or binding.
• End securing: Stop winding when about six inches remain, securing the loose ends into the holding slots on the spool rim.

Reassembling the Trimmer Head

The spool must seat perfectly into the housing for the bump mechanism to function without jamming or failing under high RPMs.

• Eyelet threading: Thread the free ends of the line through the exit eyelets located on the sides of the trimmer head housing.
• Spool seating: Push the wound spool down onto the central spindle until it seats firmly into place.
• Cover locking: Replace the outer cover or bump knob, snapping or twisting it until securely locked.

Final Testing and Adjustments

Before returning to active yard work, verify the feed system operates correctly under normal operating speed.

• Power restoration: Reconnect the battery, power cord, or spark plug.
• System testing: Turn on the trimmer and activate the feed mechanism, such as tapping the bump head on the ground, to verify smooth operation.
• Length calibration: Allow the line cutter blade on the trimmer guard to automatically trim any excess length as the head spins.

最終的な考え

Choosing the right string trimmer line size is a balance between cutting performance, 耐久性, and machine compatibility.

For light grass and small yards, 0.065″–0.080″ line is often enough. For general grass and weeds, 0.080″–0.095″ provides a useful balance. Tough weeds and heavy vegetation may require 0.105″–0.130″ line, provided that the trimmer is designed for it.

The most important rule is simple: do not choose line diameter based on thickness alone. Match the line to the vegetation and the specifications of the trimmer head and engine.

Looking for a reliable outdoor power equipment partner? ニュートップ provides complete trimmer and brush cutter solutions for manufacturers, 販売代理店, and professional users. Contact NEWTOP today to discuss your product requirements and develop the right cutting system for your market.

よくある質問

Water pump manufacturing involves a series of precise engineering, 機械加工, 組み立て, and testing processes. Every component—from the pump housing and impeller to the shaft, mechanical seal, and engine—must meet defined requirements before the complete unit can deliver stable flow and pressure in the field.

For gasoline and diesel water pumps used in irrigation, 排水, 工事, and water transfer, manufacturing quality directly affects flow rate, リフト, 燃費, vibration, 耐久性, and operating reliability.

それで, how are water pumps manufactured in a factory? The process typically covers engineering design, raw material selection, component machining, impeller manufacturing, pump and engine assembly, surface treatment, performance testing, final inspection, and packaging.

このガイドでは, we’ll walk through each stage of the water pump manufacturing process and explain the key quality controls used to produce reliable equipment for distributors, 輸入業者, and professional users.

What Are Water Pumps Made Of?

Water pump materials range from cost-effective cast iron to specialized alloys and engineered plastics, selected strictly based on fluid chemistry, system pressure, and abrasive wear conditions.

Primary Metals Used in Pump Housings and Impellers

Metal components form the main structural and hydraulic parts of most gasoline and diesel water pumps. Manufacturers select materials according to the required strength, 重さ, wear resistance, および動作環境.

• Cast iron: Commonly used for pump housings and impellers where strength, 耐久性, and wear resistance are important. It is especially suitable for heavy-duty water transfer applications.
• Aluminum alloy: Widely used for portable water pump housings because it provides a good balance between strength and low weight. Reducing housing weight makes the complete pump easier to transport and handle.
• Stainless steel: Used for shafts, fasteners, and selected hydraulic components where higher corrosion resistance is required.
• Carbon steel and alloy steel: Common choices for shafts and other load-bearing components because they provide the strength needed for continuous rotation and mechanical loads.

For portable gasoline water pumps, material selection often involves balancing durability with portability. A cast-iron component may provide excellent wear resistance, while an aluminum housing can help reduce the total weight of the machine. 例えば, ニュートップズ NTWP30 uses a cast-iron impeller and aluminum pump body, combining a durable rotating component with a relatively lightweight housing.

Non-Metallic Components and Sealing Materials

Metal components provide structural support, but non-metallic parts are equally important for reliable pump operation. シール, ガスケット, Oリング, and other polymer components help prevent water leakage and protect internal parts.

Common materials include:

• Ceramic and carbon: Frequently used as mechanical seal faces because they provide good wear resistance and sealing performance.
• Nitrile rubber (NBR): Commonly used for seals and O-rings in general water pump applications.
• EPDM: Offers good resistance to water, 熱, and weathering and can be used in suitable sealing applications.
• PTFE: Provides strong chemical resistance and low friction, making it useful for specific sealing requirements.

The correct sealing material depends on the water temperature, fluid characteristics, shaft speed, および動作条件. A high-quality mechanical seal is particularly important because leakage around the rotating shaft can quickly affect pump performance.

9 Steps of the Water Pump Manufacturing Process

Manufacturing Phase	Key Components Involved	Critical 品質管理 Check
エンジニアリング & Forming	Casing, Volute, Core Shafts	Material composition and draft geometry
Machining & Preparation	Housings, Shaft seats, インペラ	CNC dimensional accuracy and static balance
Assembly & Sealing	Bearings, Mechanical seals, Motor	Fastener torque and shaft alignment
テスト & Dispatch	Fully assembled pump unit	Hydraulic load testing and leak detection

Step 1: Water Pump Design and Engineering

Engineers initiate the manufacturing cycle using advanced CAD software to establish the pump’s core geometry and performance targets. This digital blueprint dictates the physical architecture and maps out major part interfaces, which directly guides the downstream casting and machining operations.

Design teams calculate and account for critical operational variables from the start:

• Flow rate and head: Setting the baseline for hydraulic capacity.
• Fluid type: Adjusting for viscosity, corrosiveness, or abrasive solid content.
• Operating environment: Factoring in extreme ambient temperatures or submerged conditions.

Step 2: Raw Material Selection and Component Manufacturing

Factories select industrial-grade metals like cast iron, aluminum, or stainless steel based on the specific tensile strength and corrosion resistance the application demands. Foundries then form the major structural elements, including the pump body and volute, through heavy casting, forging, or smelting.

Simultaneously, specialized production lines manufacture the supporting internal mechanics. This includes:

• Drive shafts and rotors
• Stators and bearing assemblies
• Mechanical seals and gaskets

Step 3: Pump Body and Engine Component Machining

Rough castings rarely exit the mold ready for assembly. They undergo CNC precision machining to cut, drill, and face critical surfaces so they hit exact dimensional tolerances. This removes any casting flaws and guarantees a tight mechanical fit between mating parts.

Operators focus heavily on finishing essential structural points. Flawless machining is non-negotiable for housings, shaft seats, cover faces, and primary mounting surfaces to prevent future vibration or seal failure.

Step 4: Impeller and Internal Component Manufacturing

The impeller serves as the hydraulic heart of the pump. Technicians cast, machine, and precisely balance each impeller to eliminate erratic vibration and stabilize high-speed rotation. Engineers carefully optimize the impeller and diffuser geometry to maximize fluid pressure and flow output while minimizing mechanical strain.

Workers also prepare separate internal components prior to final assembly. They stage shaft pipes, balanced rotors, and wound stators so the production line maintains a steady workflow.

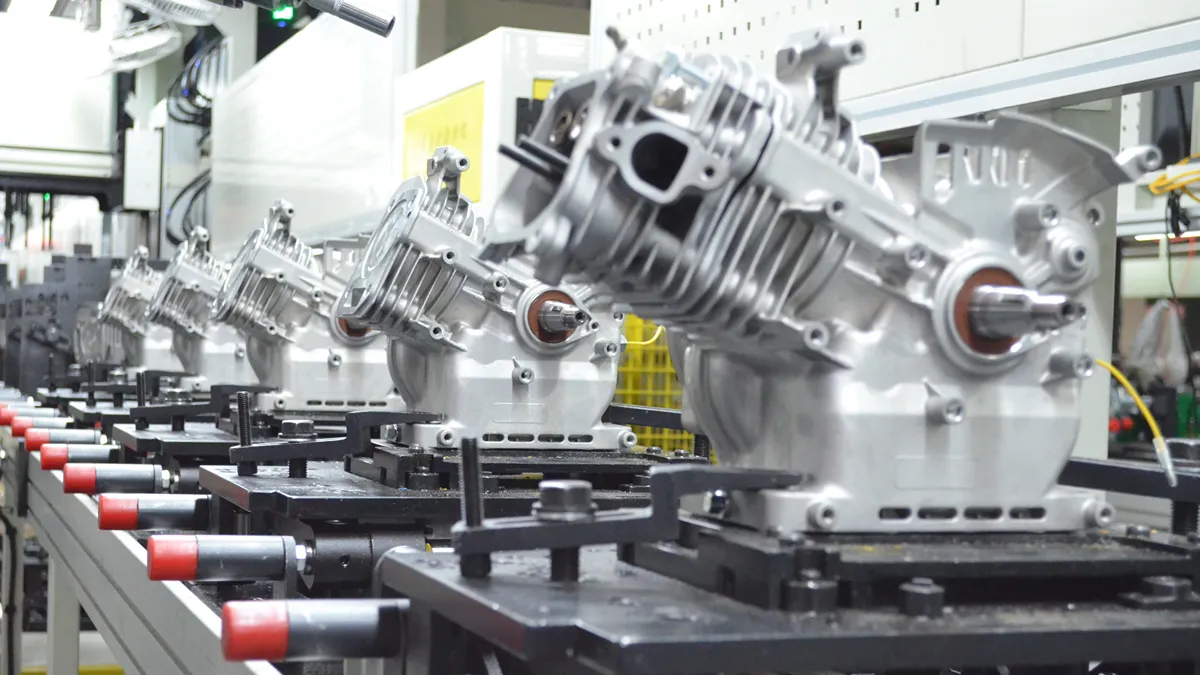

Step 5: Engine and Pump Assembly

Assembly lines merge the machined casing, balanced impeller, drive shaft, and prepared internals into a complete operational unit. For engine-driven configurations, technicians install and align the motor, securely fastening all heavy-duty drive components to prevent torque distortion.

This stage requires exact handling to avoid misalignment or pressure drops. Workers carefully press-fit bearings and install mechanical seals, lock nuts, and mating flanges to establish a reliable, leak-proof barrier.

Step 6: Surface Treatment and Finishing

Bare metal requires defense against harsh industrial or outdoor environments. Technicians apply specialized surface treatments like anti-rust paint, heavy powder coating, or protective enamel to shield the exterior from corrosion and physical wear.

Preparation goes beyond the exterior housing. Workers clean, dry, and apply specific pre-coats to internal cavities and bearing boxes to prevent internal degradation before the pump ever sees liquid.

Step 7: Water Pump Performance Testing

Performance testing acts as the primary proof of build quality. Technicians mount the fully assembled pump on a closed-loop hydraulic test bench and run it under load to verify it hits guaranteed operational standards.

Inspectors monitor and record these critical parameters:

• Hydraulic output: Checking exact flow rate and discharge pressure.
• Integrity: Scanning for housing leaks and seal weeping.
• 力学: Measuring operational noise and detecting abnormal vibration.

Step 8: Quality Control and Final Inspection

Final inspection serves as the last barrier before dispatch. Quality control teams conduct strict visual and dimensional checks, confirming the physical product aligns perfectly with the original engineering drawings. They also verify cleanliness to keep debris out of the internal fluid path.

Inspectors aggressively hunt for defects. They will catch and reject any units showing surface damage, pinhole leaks, poor shaft alignment, or uneven coating. They also validate batch tracking codes to maintain full manufacturing traceability.

Step 9: Packaging and Shipment

The factory floor cleans, labels, and securely packs the approved water pumps using impact-resistant protective materials. Proper packaging prevents transit damage during rough freight handling and long-distance hauling.

Logistics teams insert necessary accessory kits, user manuals, and final batch tracking documents into the crates. The packaged units are then dispatched to industrial users, 地域の代理店, or direct retail channels.

How Does a Factory Ensure Water Pump Quality?

Factory quality assurance for water pumps is an integrated system. It combines strict incoming material checks, precision CNC machining, controlled assembly, and rigorous hydraulic testing before final shipment.

Engineering Design and Material Inspection

Quality control starts long before parts hit the production floor. Engineers use CAD and 3D modeling software to define exact pump geometry, tight tolerances, and strict performance targets. This upfront design dictates the required strength and corrosion resistance, leading to the selection of core materials like cast iron, aluminum, and stainless steel. Once the raw materials arrive, the factory conducts thorough incoming inspections. Technicians verify the chemical and physical properties of all metals, copper windings, rubber components, plastics, and seals to guarantee only approved materials enter the manufacturing line.

Casting, Molding, and Machining Controls

Structural integrity relies on highly controlled casting and molding processes. Foundries manage melting, pouring, and cooling times to prevent hidden defects like porosity or cracking in the rough casings. After casting, the components move to the machining phase. Operators use CNC machines, drills, and lathes to cut proper fits for bearings and shafts. The goal here is maintaining exact dimensional tolerances. This precision ensures correct impeller clearances, which directly prevents internal friction and maximizes hydraulic efficiency.

Motor Assembly and Verification

電動ウォーターポンプ用, mechanical and electrical reliability are inseparable. Technicians focus heavily on copper winding density, precise rotor balancing, and thorough insulation resistance checks before motor integration. On the assembly line, workers install pump housings, シール, ベアリング, and fasteners following strict fit-up and torque control protocols. Factories set up dedicated inspection points throughout this sequence. These checks verify component alignment at every stage, preventing hidden assembly defects from moving down the line and reaching the customer.

Comprehensive Performance Testing

Performance testing acts as the primary proof of build quality. Finished units undergo rigorous evaluations on closed-loop test benches to validate their operational metrics against the original engineering targets.

• Hydraulic Performance: Technicians confirm the pump delivers the exact head, flow rate, and power consumption required by the specification.
• Pressure and Leakage: Hydrostatic tests check the casing integrity and mechanical seal effectiveness under heavy load.
• Noise and Vibration: Monitoring equipment detects abnormal running behavior caused by rotor imbalance or internal misalignment.

Final Inspection and Traceability

The last quality gate happens right before the pump leaves the factory. Quality control teams conduct final visual inspections to check surface cleanliness, correct labeling, and accurate documentation. They also verify packaging standards to reduce the risk of transit damage. Factories log every unit with batch tracking and inspection data. If a field defect occurs, the manufacturer can quickly isolate the specific production lot. This traceability extends into after-sales support, where factories analyze field performance data to refine future testing standards and engineering designs.

Looking for a Reliable Water Pump Manufacturer? Talk to NEWTOP

Choosing a water pump supplier means looking beyond flow rate and engine power. Consistent quality, 信頼できるパフォーマンス, and stable production are equally important for long-term business.

ニュートップ manufactures gasoline and diesel water pumps for irrigation, 排水, 工事, and general water transfer. With different flow, 頭, and port configurations, NEWTOP can provide suitable solutions for different applications and market requirements.

If you are sourcing water pumps for wholesale, 分布, or OEM/ODM projects, talk to NEWTOP about your required specifications and order volume. Our team can help you select the right pump for your market and application.

Need a reliable water pump supplier? NEWTOPに今すぐ連絡してください.

よくある質問

If you are sourcing a portable diesel water pump for irrigation, 排水, 工事, firefighting support, or resale, price is only one part of the buying decision. Engine power, pump size, flow rate, 全頭, pump materials, 始動システム, 注文数量, and customization can all affect the final cost.

で 2026, basic portable diesel water pumps from Chinese manufacturers can start at around US$130–US$180 per unit. Standard 2-inch to 4-inch models commonly range from about US$160–US$400, depending on engine power, flow rate, 頭, pump construction, and order quantity. High-pressure, heavy-duty, large-flow, and customized models can cost significantly more.

For distributors and OEM buyers, the key question is not simply “How much does a diesel water pump cost?」 but rather “What level of flow, 頭, 耐久性, and service life can I get within my target purchase price?」

ポータブルディーゼルウォーターポンプの価格はいくらですか?

A practical 2026 price range for portable diesel water pumps is:

Pump Category	Typical China Supplier Price*	Target Application
2-inch standard diesel pump	US$130–US$220	Small-scale irrigation, 排水, and general water transfer
3-inch standard diesel pump	US$160–US$250	Farm irrigation, construction drainage, and commercial water transfer
3-inch high-pressure pump	US$190–US$350+	Long-distance water transfer, uphill pumping, and high-head applications
4-inch standard diesel pump	US$190–US$350	High-volume irrigation, 工事, and drainage
4-inch high-flow or high-pressure pump	US$300–US$600+	Large-volume irrigation, demanding drainage, and high-pressure applications
6-inch portable diesel pump	US$190–US$600+	Large-area irrigation, flood drainage, and high-volume water transfer

*Prices are indicative China supplier or factory-level prices for standard configurations in 2026. Actual quotations may vary depending on engine power, flow rate, 頭, pump materials, 始動システム, MOQ, certifications, Incoterms, and OEM customization. Larger engineered, trailer-mounted, firefighting, or specialized pump systems may cost substantially more.

What Affects the Price of a Portable Diesel Water Pump?

The final price of a portable diesel pump depends on discharge capacity, エンジン馬力, construction materials, and whether you buy factory-direct or through a retail dealer.

Pump Capacity and Engine Performance

Flow rates and inlet diameters establish the baseline cost for any portable pump. A basic 4-inch transfer pump moves a modest volume and sits near the lower end of the pricing ladder. Step up to a 6-inch model, and manufacturers must use a larger pump housing, bigger impellers, and a heavier frame to handle the increased water volume.

Engine horsepower scales exactly with capacity. You pay progressively more to jump from a small engine to a 10 hp or 13 hp model capable of maintaining high flow rates under load. Maximum head lift also shifts the engineering requirements. Pushing water 30 meters vertical demands much higher pressure tolerances than a standard 13-meter lift, driving up the production cost.

• Discharge size: Larger 6-inch inlet/outlet diameters cost more to manufacture than standard 4-inch models.
• 馬力: Units rated at 10 hp to 13 hp carry a higher premium than entry-level low-flow engines.
• Maximum head: High-pressure agricultural models built for steep lifts add significant engineering costs.

Build Quality, 材料, and Brand Value

Materials dictate how well a pump survives harsh environments. Standard clean-water pumps use basic alloys and keep production costs low. Trash pumps built to handle mud, slurry, and solid debris require heavy-duty cast iron, specialized seals, and corrosion-resistant materials. Upgrading these internal components immediately raises the retail price.

Brand recognition acts as a major multiplier on the invoice. Unbranded entry-level import units use standard components and keep costs close to the $225 に $300 range. Recognized retail brands charge a premium because they bundle proven durability, 排出ガスコンプライアンス, local dealer support, and warranty coverage into the sticker price.

Starting Systems and Included Accessories

Buyers often overlook the hardware outside the pump head and engine. Manual recoil starts are cheap and standard on smaller units. Upgrading to an electric-start system requires a battery, a wiring harness, and a starter motor. This upgrade alone usually adds around $90 to the base price of a portable pump.

Add-ons dictate the final package cost. Bare pump sets offer the lowest entry point, while fully equipped packages command a premium.

• Electric start: Adds cost through required batteries, 配線, and specific starter hardware.
• Mobility kits: Robust roll frames and wheel kits for easy job site transport increase the total package price.
• 燃料タンク: Expanded fuel tanks built for long continuous runtimes add material cost.
• Bundled accessories: Specialized suction hoses, strainers, and quick-connect fittings factor heavily into the final equipment cost.

Market Channels: B2B vs. Retail Pricing

The supply chain determines the final number on the quote. B2B factory direct channels offer the lowest entry pricing. Buying straight from the manufacturer removes the middleman, making it the most cost-effective route for bulk orders or OEM purchases.

Retail storefronts price identical units higher. They must cover import duties, distribution overhead, local warehousing, and immediate after-sales support. A high-spec industrial B2B pump might land between $2,700 そして $3,500 per unit direct from the factory, while a heavily branded retail model built to similar specs can reach over $22,000 MXN in local markets.

Portable Diesel Water Pump Price by Pump Size

Pump size sets the base price tier, but engine horsepower and industrial-grade construction drastically shift the final cost within each category.

2-Inch and 3-Inch Pumps: Entry-Level and Mid-Range Pricing

Small 2-inch basic portable units form the lowest-cost segment of the market. Buyers typically find these entry-level systems priced between US$51 and US$185.

Stepping up to a 3-inch pump offers a common balance of portability and flow rate. Standard models in this size sit between US$167 and US$800. If you require higher output, upgraded engine configurations ranging from 10 HP to 15 HP will push costs toward the upper end of the US$600 to US$800 bracket.

4-Inch Pumps: The Transition to High-Output Systems

The 4-inch category represents a major step up in water-moving capacity. This performance jump requires heavier frames and stronger engines. Basic 4-inch portable agricultural pumps usually range from US$182 to over US$1,300, depending on the engine output.

Pricing escalates sharply when buyers configure these systems for heavy-duty applications. Fully equipped trailerized 4-inch trash pumps frequently cost between US$7,000 and US$15,000.

6-Inch to 12-Inch Pumps: Commercial and Industrial Systems

Standard 6-inch portable transfer pumps often list between US$300 and US$1,300 on wholesale marketplace platforms. Once you specify industrial-grade, mobile, and self-priming 6-inch units, prices start around US$2,500 to account for the robust construction.

Large 8-inch to 12-inch mobile systems serve intensive flood control or wastewater management projects. These massive units command the highest prices, ranging from US$4,800 to well over US$20,000.

Portable Diesel Water Pump Price by Flow Rate and Head

Pump capacity dictates cost, but flow rate and head height aren’t the only variables. Expect to pay more for higher horsepower engines, self-priming features, and heavy-duty towable frames.

Pricing Based on Flow Rate Capacity

How much water you need to move directly anchors your starting budget. Small-scale tasks rely on low-flow transfer pumps operating around 30 L/分, which represent the budget tier. You will typically spend between $30 そして $100 for these compact units.

As you scale up to standard agricultural or construction dewatering, prices shift. Standard mid-range units, such as 3-inch pumps delivering 25 に 48 cubic meters per hour, generally range from $225 に $400. Industrial jobs require high-volume models pushing 540 GPM or 960 LPM. These heavy-duty configurations scale significantly higher, spanning from $2,000 to over $8,000.

Cost Variations Driven by Pump Head

Flow rate tells only half the story. The vertical distance you need to move that water—the pump head—forces major engineering changes. Pumps requiring higher lift capacity demand more robust engine output and stronger internal pump stages, directly increasing the final cost.

Entry-level models built for basic flat-ground transfer duty handle low head applications. These remain the most affordable options on the market. If your site requires moving water out of deep trenches or up steep inclines, you need units engineered for moderate to high lift. Pumps achieving 25 に 30 meters of head command a strict premium over standard transfer equipment.

Combined Impact of Engine Size and Pump Type

Pumping specs do not exist in a vacuum. A 3-inch pump with a basic engine costs vastly different than a 3-inch pump built for raw site work. Several specific hardware and purchasing variables dictate the final invoice.

• Engine Horsepower: Flow rate alone does not dictate price. Engine size plays a major role, with 13 HP models costing substantially more than 5 HP alternatives built for the same pipe diameter.
• Specialized Configurations: Adding self-priming mechanisms, trash-handling capabilities, and towable highway frames adds significant cost to the base unit.
• Order Volume: Purchasing volume immediately alters the pricing structure. Wholesale B2B orders lower the per-piece rate heavily compared to single-unit retail listings.

Buyers must lock down their exact engine and frame requirements before comparing quotes, or they risk matching a cheap transfer pump against a commercial trash unit.

Diesel vs Gasoline Water Pump: Which Costs More?

Diesel water pumps cost more upfront than gasoline models due to heavy-duty engineering, but their durability offsets replacement costs in continuous, rugged applications.

Initial Purchase Price Differences

Gasoline-powered portable pumps generally offer the lowest upfront purchase cost in the market. When you compare units in the exact same size and performance tier, diesel water pumps demand a higher initial investment.

Retail data and supplier listings consistently place gasoline units in lower-cost entry tiers. Manufacturers build gas models for lighter duty cycles, keeping raw material and production costs low compared to equivalent diesel packages.

Current Price Bands for Diesel Models

Diesel unit pricing scales heavily based on flow capacity, エンジン馬力, and structural features.

• Entry-level small diesel pumps: US$137 to US$369
• Mid-range portable models (2-inch to 6-inch self-priming units): US$253 to US$500
• Heavy-duty industrial diesel systems (high-horsepower engines): US$1,280 up to US$20,900 or more

Manufacturing Factors Driving Diesel Costs

The price gap between diesel and gasoline comes directly from engineering requirements and the intended operating environment.

• Engine construction: Compression-ignition diesel engines demand stronger, heavier materials to safely handle higher internal pressures.
• Hardware upgrades: Manufacturers often equip diesel pumps with heavy-duty frames, wheel kits, and trash-handling components built for demanding environments.
• Complete systems: Package configurations, including trailers and specialized hoses, add significantly to the total unit price.

Matching Budget to Application Needs

Gasoline pumps suit buyers prioritizing immediate cost savings and intermittent operation. They work well for fast, temporary water transfer jobs where the equipment sits idle for long periods between uses.

Diesel units serve applications requiring continuous runtime, high-volume flow, and proven reliability in remote locations. The higher purchase price of diesel systems directly offsets long-term replacement costs in rugged agricultural or commercial construction settings.

What Is Included in the Price of a Diesel Water Pump?

Before accepting a quotation, confirm exactly what the supplier’s price includes.

A standard factory quotation may include the diesel engine, pump body, frame, fuel tank, basic controls, inlet/outlet fittings, and standard packaging. しかし, accessories such as hoses, strainers, couplings, wheels, electric-start batteries, or special connectors may be optional.

You should also confirm whether the quoted price includes:

• Standard spare parts
• 保証
• User manual
• Product testing
• Export packaging
• Logo or label
• Certification documents
• Replacement parts
• Shipping costs

For international buyers, the difference between EXW, FOB, CIF, and other trade terms can also significantly change the final landed cost.

OEM and Custom Portable Diesel Water Pump Costs

OEM pricing depends heavily on what is being customized.

Simple customization, such as a brand logo, 色, label, carton design, or nameplate, normally adds less cost than changing the pump’s engineering.

More complex OEM requirements may include:

• Different diesel engine
• Electric-start configuration
• Special pump body
• Different inlet/outlet size
• Higher head or flow requirement
• Customized frame
• Special fuel tank
• Market-specific certification
• Customized packaging

販売代理店様向け, it is usually better to provide the manufacturer with a complete specification before asking for an OEM quotation. This avoids receiving a low initial price that later increases because of additional components.

MOQ also matters. A water pumps factory may offer a lower unit price for 100 または 500 units than for a trial order of 10 単位. Current China supplier listings show MOQs ranging from one piece to 50 pieces or more depending on the supplier and model.

How to Get the Best Price From a China Water Pump Manufacturer

To get the best price from a China water pump manufacturer, lock in exact specifications, stick to standard configurations, and leverage larger order volumes to reduce per-unit costs.

Request Quotes Using Identical Specifications

Ambiguous requests lead to distorted pricing. If you ask five suppliers for a quote on a 3-inch pump, you will receive five vastly different numbers unless you define the exact mechanical parameters.

• Base mechanics: Compare pricing using the exact same pump size, エンジン馬力, and start type to ensure accuracy.
• Physical build: Ensure frame style, wheel configuration, and self-priming capabilities match across all supplier quotes.
• Equipment class: Avoid comparing standard 2-inch or 4-inch agricultural models with high-capacity industrial dewatering pumps.

Leverage Order Volume and Standard Configurations

Factories optimize for production efficiency. Every time you change a color or request a non-standard engine brand, the manufacturer passes that setup cost directly back to you.

• Scale the MOQ: Increase the Minimum Order Quantity (MOQ) to batch, pallet, or carton sizes to secure a lower per-unit cost.
• Reject custom upgrades: Stick to standard factory configurations, as custom colors, specific engine brands, or upgraded branding usually raise the price.
• Negotiate total value: Negotiate based on the total order value and packaging simplifications rather than focusing strictly on the single-unit price.

Clarify Shipping Terms and Included Accessories

A low headline price often hides missing components or excludes freight entirely. You must strip away the ambiguity to uncover the true landed cost of the equipment.

• Isolate logistics: Ask suppliers to separate EXW, FOB (例えば, FOB Tianjin), and CIF pricing to calculate accurate landed costs.
• Confirm the bundle: Verify exactly what is included in the unit price, such as inlet/outlet fittings, wheels, or an electric start system.
• Account for adders: Account for common cost adders upfront; 例えば, an electric start on a 2-inch model typically adds about US$90.

Cross-Check Factory Sourcing Channels

Real manufacturers display stable pricing strategies. You can filter out trading companies and middlemen by observing how a supplier prices their equipment across the open market.

• Platform check: Compare the same pump class across multiple platforms like Alibaba, Made-in-China, and direct factory websites.
• Pricing consistency: Look for suppliers that maintain consistent, stable pricing across different marketplaces, indicating a reliable direct manufacturer.
• Quote transparency: Target transparent factory or FOB quotes rather than vague listings that obscure the base price.

NEWTOP Portable Diesel Water Pumps

NEWTOP portable diesel water pumps operate in the low-cost import segment, providing budget-friendly utility and agricultural transfer options positioned below premium industrial brands.

ニュートップ offers a range of diesel water pumps designed for agricultural irrigation, 排水, 工事, emergency pumping, and other outdoor applications.

Explore NEWTOP Water Pumps

の NTDWP30 is a 3-inch diesel water pump powered by a 4 kW NTDE178F diesel engine. It combines a precision-machined pump body, 42CrMo forged crankshaft, BOSCH-technology fuel injection, nitrided gears, and a full-frame vibration-control structure.

For higher-volume applications, の NTDWP40 delivers up to 96 m³/h with a 6.3 kW diesel engine, while the NTDWP60 reaches up to 150 m³/h with an 8.5 kW engine.

This range allows distributors and equipment buyers to select a pump according to the actual combination of flow, 頭, engine power, and application, rather than choosing by pump size alone.

If you are planning an OEM order, NEWTOP can also discuss model selection, 仕様, 梱包, ブランディング, and quantity requirements before quotation.

Looking for a reliable portable diesel water pump supplier for your market? Contact NEWTOP with your required pump size, flow, 頭, application, and order quantity to receive a model recommendation and quotation.

よくある質問

Water pumps are designed for different working conditions, and the right choice depends on how the water needs to be delivered. A high pressure water pump is designed to provide higher head for applications such as uphill irrigation, long-distance water delivery, and sprinkler systems. A general purpose water pump is typically selected for moving larger volumes of water in applications such as drainage, 工事, and general irrigation.

The difference becomes clearer when you look at two key pump specifications: flow rate and head. Understanding how these two values affect pump performance can help you select the right water pump for your application, avoid insufficient pressure or flow, and get more reliable performance in the field.

What Is a High Pressure Water Pump?

A high pressure water pump generates forceful head rather than sheer volume. It pushes water against gravity, long distances, or high-resistance nozzles to perform physical work.

Core Definition and Purpose

A high pressure water pump is designed to generate a higher head, allowing water to overcome greater resistance in the discharge system. This makes it useful when water must travel a long distance, move uphill, or pass through smaller pipes, sprinklers, or other restrictive equipment.

Common Pump Types for High Pressure

Manufacturers build several distinct pump configurations to handle elevated pressure demands across different industrial and agricultural sectors.

• Centrifugal high-pressure pumps: Frequently configured for demanding water-transfer tasks and large-scale agricultural irrigation systems.
• Positive displacement pumps: Capable of producing significantly higher pressures and operating with extreme efficiency during continuous, demanding duties.
• Multi-stage pumps: Utilize multiple internal impellers to generate and sustain higher head, commonly found in heavy industrial applications.

Typical Applications and Use Cases

Any application requiring water to act as a physical tool or travel against heavy mechanical resistance demands a high pressure setup.

• 農業: Powering large irrigation sprinklers and managing consistent long-distance water delivery across uneven terrain.
• Cleaning: Supplying steady, forceful streams for commercial pressure washing, surface preparation, and heavy industrial washdowns.
• Fire suppression: Delivering emergency water streams safely and effectively over distances to reach active hazards.
• Industrial processing: Handling internal tasks like deep well water injection, machinery descaling, and high-pressure boiler feed operations.

What Is a General Purpose Water Pump?

A general-purpose water pump handles routine liquid transfer, prioritizing a practical balance of flow, 頭, and cost rather than specialized extreme-duty performance.

Core Definition and Function

A general purpose water pump is typically designed to move water efficiently rather than generate maximum pressure. These pumps are commonly used for irrigation, 排水, water transfer, construction sites, 池, tanks, and other everyday pumping tasks.

Water pumps can also be classified by how they handle air during startup. If you are comparing pump designs for different installation conditions, it is useful to understand the difference between centrifugal and self-priming pumps. 遠心式ウォーターポンプと自吸式ウォーターポンプ explains how these two pump types differ in priming requirements, startup performance, and typical applications.

主な用途

You will find general-purpose units operating across multiple sectors where steady volume matters more than extreme discharge force.

• Commercial and municipal: Handles building water supply, baseline pressure boosting, and HVAC chilled-water circulation.
• Agricultural and construction: Supports field irrigation, bulk water transfer, and site dewatering operations.
• Industrial and wastewater: Manages light-duty process water movement and solid-handling sewage tasks when configured properly.

Industry Standards and Compliance

Broad applicability requires strict adherence to standardized manufacturing and testing protocols. This ensures buyers can swap out units across different brands without redesigning entire piping systems.

• Hydraulic Institute (HI): Sets the baseline guidelines for nomenclature, design specifications, and performance testing.
• ISO and ANSI: Dictate dimensional standards to guarantee broad equipment interchangeability across global markets.
• AWWA and UL 778: Provide evaluation frameworks for electrical safety, operational reliability, and public water system compliance.

高圧ウォーターポンプ vs 汎用ウォーターポンプ: 主な違い

The main difference is the balance between head and flow. In simple terms, a high pressure water pump is designed to push water farther and higher, while a general purpose water pump is designed to move larger volumes of water efficiently.

特徴	High Pressure Water Pump	General Purpose Water Pump
Main purpose	Overcome high resistance and lift water higher	Move large volumes of water efficiently
頭	より高い	適度
Flow rate	Often moderate	Often higher
Typical applications	Sprinklers, long hoses, uphill pumping, irrigation systems	排水, flood control, water transfer, general irrigation
Discharge system	Suitable for longer or more restrictive systems	Best for shorter, less restrictive systems
優先度	Pressure/head	Water volume/flow
Typical fuel options	Gasoline or diesel	Gasoline or diesel
Best selection factor	Required head and system resistance	Required flow and total head

Flow Rate vs Head: Understanding the Main Difference

Flow rate is the volume of water moved, while head is the resistance it overcomes. Higher head limits flow, dictating actual pump performance in real-world systems.

Flow rate describes how much water the pump can move over a period of time. It is commonly measured in m³/h (cubic meters per hour) or L/min (liters per minute).

The Tradeoff Between Pressure and Volume

A pump’s flow rate is not a constant value. It decreases as the resistance it works against increases. Higher head requirements generally result in a lower flow rate at a given operating point.

This tradeoff dictates equipment selection across different applications. High-pressure water pumps prioritize head to achieve longer discharge distances and overcome extreme resistance. General-purpose models take the opposite approach, focusing on maximizing flow for basic transfer tasks where lift and friction stay low.

How System Head Affects Actual Output

System head calculates the total resistance your equipment faces in the field. This calculation combines static elevation lift, dynamic energy, and friction losses. As flow increases, friction losses from pipes, バルブ, and bends also increase, which restricts the delivered volume.

The true operating point occurs exactly where the pump performance curve intersects the specific system head curve. This intersection represents the actual volume the pump will deliver in a live installation, completely overriding theoretical maximums.

Practical Selection Guidelines

Selecting the right equipment requires matching your primary specification to the actual site demands.

• Prioritize head: Choose this path for applications requiring long vertical lifts, extended horizontal pipe runs, or high discharge pressure.
• Prioritize flow rate: Focus here when moving large volumes of water quickly with minimal elevation changes.
• Avoid the free-flow trap: Never buy a pump based solely on its maximum free-flow rating at zero head. Real-world resistance will lower the actual output on site.

When Should You Use a High Pressure Water Pump?

Use a high-pressure pump when you need force, not just volume. If your system requires pushing water upward, spraying, or overcoming resistance, standard transfer pumps will fall short.

Common Scenarios Requiring a Pressure Boost

High-pressure pumps step in when gravity and friction work against your water supply. A standard utility pump handles basic flow, but you need a dedicated pressure boost when fixtures fail to operate correctly due to low force.

• Low municipal pressure: Fixes weak incoming flow at taps, showers, and household appliances.
• Vertical lift: Pushes water upward to elevated fixtures, higher floors, or rooftop tanks in multi-story buildings.
• Simultaneous demand: Prevents noticeable pressure drops when multiple outlets, such as a shower and a washing machine, run at the same time.

Specific Applications and Setups

Beyond basic household plumbing, specific mechanical setups demand high pressure to function. You need a pump built to handle resistance and maintain a usable discharge pressure all the way to the end of the line.

• Underground sources: Drawing supply from shallow wells, underground cisterns, or buried storage tanks where self-priming is necessary.
• Sprinkler networks: Operating pressure-dependent irrigation systems that require a steady, forceful supply to achieve the correct spray reach.
• Line supplementation: Acting as a compact domestic booster to supplement an existing utility line without replacing the entire supply system.

When to Avoid High-Pressure Pumps

Higher pressure is not a universal fix. Forcing a high-pressure unit into the wrong application wastes energy, damages pipe fittings, and creates unnecessary maintenance costs. Know when to stick to a general-purpose model.

• Bulk transfer: Moving large volumes of water quickly. A standard centrifugal or high-flow transfer pump handles this much more efficiently.
• Deep source extraction: Pulling water from deep underground requires specialized deep-well or submersible pumps, not surface-mounted pressure models.
• Contaminated fluids: Pumping dirty water or liquid with heavy sediment will destroy high-pressure seals. Standard pressure pumps are built specifically for clean water applications.

主要な選択基準

Buying the right pump means matching its performance curve to your exact system requirements. Never size a pump based on a single metric like horsepower or maximum flow.

• Flow and force balance: Evaluating pressure and flow rate together to ensure the pump supports both the force needed and the volume for simultaneous users.
• Total vertical lift: Calculating the exact height from the pump installation level to the highest water fixture in the system.
• Intake limits: Checking the suction depth requirements if you draw water from a below-ground source.
• System controls: Selecting the right control mode, such as automatic start/stop or constant-pressure drives, to ensure consistent household comfort.

When Is a General Purpose Water Pump a Better Choice?

Choose a general-purpose pump when moving large volumes of water efficiently matters more than extreme discharge pressure. It cuts unnecessary costs and simplifies system maintenance.

Moderate Pressure and High Flow Requirements

General purpose centrifugal pumps thrive in environments operating well below 300 psi. Equipment following standards like ANSI/ASME B73.1 focuses entirely on efficient liquid movement. Instead of generating extreme outlet force, these units prioritize raw volume and steady transfer rates.

You should deploy them for clean or lightly treated water. They are not built for hazardous, high-temperature, or highly specialized industrial fluids. When your primary goal is shifting liquid from point A to point B without battling extreme pipe resistance, standard utility pumps handle the workload perfectly.

Ideal Applications and Use Cases

These pumps fit naturally into everyday fluid movement scenarios. Engineers specify them across commercial and industrial sites where volume throughput dictates system success.

• Water transfer: Moving liquid between tanks, 貯水池, or different process stages.
• HVAC and circulation: Running cooling or heating loops that need stable, dependable flow rather than extreme discharge pressure.
• Standard irrigation: Handling open-field or landscape watering where specialized high-pressure nozzles are absent.
• Utility services: Managing routine wastewater and general industrial facility water needs.

Cost and Maintenance Advantages

Specifying a general purpose pump keeps capital expenditure grounded. You avoid the premium price tags attached to high-pressure components and specialized industrial ratings that your system simply does not need.

This approach streamlines the specification process and removes the risk of overdesigning a basic utility setup. Because these units integrate perfectly with standard piping and normal system pressures, your team faces significantly less maintenance complexity over the equipment’s lifespan.

Situations That Require High-Pressure Alternatives

While versatile, standard transfer pumps fail under heavy resistance. You must step up to specialized equipment when the job demands sheer force rather than simple volume.

• Industrial cleaning: Standard models cannot support water jetting or hydrotesting that demands sustained pressure from 500 to over 1,500 psi.
• Fire protection: Emergency systems require certified, instant-on performance and massive lift that general utility models cannot guarantee.
• Critical process loads: Avoid standard models for demanding processes that require API-level construction to survive extreme operational stress.

High Pressure vs General Purpose Water Pump for Irrigation

Choose a high-pressure pump to push water across long distances and uneven terrain. Rely on a general-purpose pump to move large volumes efficiently for standard, flat-field irrigation.

Core Differences in Pressure and Flow

A high-pressure pump generates strong discharge pressure to overcome significant friction or elevation losses. This design inherently delivers lower flow rates. General-purpose centrifugal pumps prioritize moving large volumes of water efficiently at moderate pressures. In agricultural settings, these units commonly operate in the 15 に 60 psi range.

Upgrading to a high-pressure system introduces greater physical stress to your infrastructure. The added force places higher demands on your entire irrigation network. You must specify stronger pipes, heavy-duty fittings, and premium seals to prevent leaks or blowouts under load.

Ideal Use Cases and Applications

Matching the pump to the field layout dictates your system’s reliability. High-pressure pumps handle demanding environments where resistance restricts water delivery, especially when running pressure-compensating drip networks that require sustained inlet pressure for multiple active emitters.

Deploy a high-pressure pump for these challenging layouts:

• Long-distance conveyance: Pushing water through extensive pipe networks.
• Uneven hillside fields: Overcoming steep elevation changes.
• Filtration-heavy setups: Forcing water through restrictive filter media.

General-purpose pumps excel in straightforward, low-resistance layouts. Rely on them for:

• Surface irrigation: Flooding fields or feeding low-head systems.
• Standard field watering: Moving water across flat, accessible crop rows.
• Short-distance transfer: Pumping directly from holding tanks or nearby canals.

Operational Trade-offs and System Impact

High-pressure models successfully maintain uniform emitter performance across difficult terrain. The direct trade-off is heavy energy consumption. Forcing water at high pressures requires significantly more power, driving up your daily operating expenses.

General-purpose pumps offer a more economical solution for standard water movement. They feature lower installation costs and run much cheaper over a long growing season.

You should never oversize pressure unnecessarily. Installing a high-pressure unit on a low-resistance field leads to increased energy bills, premature component wear, and a much higher risk of pipe failure.

Key Sizing and Selection Criteria

Your selection must map directly to the required pressure at the point of use, specifically the sprinkler or emitter inlet. You cannot buy an irrigation pump based on horsepower alone.

To size the system correctly, calculate the total dynamic head (TDH). This requires combining several specific system losses:

• Static lift: The vertical distance from the water source to the pump.
• Pipe friction: The resistance created by water moving through the pipe diameter.
• Elevation changes: The vertical rise from the pump to the highest irrigation point.
• Filter losses: The pressure drop caused by screens or media filters.
• Required nozzle pressure: The exact operating pressure your sprinklers or emitters need.

Once you calculate the total dynamic head, compare these system demands against the manufacturer’s pump curve. This ensures the pump operates within its most efficient range at your target duty point.

High Pressure vs General Purpose Water Pump for Drainage and Construction

Choose general-purpose pumps to quickly move large volumes of accumulating water. Reserve high-pressure pumps for tasks demanding concentrated force, like site cleaning or overcoming extreme pipe resistance.

Core Differences: Pressure vs. Volume

The primary distinction between these two equipment categories comes down to how they handle water. High-pressure water pumps focus on generating maximum force and high discharge head. In industrial construction, they frequently operate above 500 psi using multi-stage or plunger designs.

General-purpose water pumps prioritize moving high volumes of water efficiently at modest pressures. Manufacturers typically rely on centrifugal or submersible designs for these tasks. The flow profile differs significantly based on the pump’s internal mechanics.

• High-pressure systems: Deliver lower flow rates at significantly higher pressure.
• General-purpose systems: Move high flow rates at much lower pressure.

The type of water being pumped is also important. Clean water and water containing sand, mud, leaves, or other solid particles can require different pump designs. If you need to choose between pumps for clean or contaminated water, see Trash Pump vs Clean Water Pump for a detailed comparison of their construction, handling capacity, and suitable applications.

Drainage Applications: When Flow Rates Matter Most

Site drainage success depends heavily on clearing water faster than it accumulates. General-purpose pumps are the standard choice for floodwater removal, trench dewatering, and emptying excavation pits. In these scenarios, the priority is moving massive volumes quickly.

Actual drainage performance depends primarily on the flow rate and the total dynamic head rather than raw pressure output. A pump rated for extreme pressure will underperform if it lacks the capacity to process hundreds of gallons per minute.

You only need high-pressure pumps for drainage when the site forces you to overcome specific system resistance. Common examples include pushing water through exceptionally long discharge lines or pumping it up steep vertical elevations where a standard centrifugal pump would stall.

Construction Use Cases: Dewatering vs. Site Cleaning

Construction sites demand different equipment for different phases of the project. Standard dewatering, temporary bypass pumping, and stormwater management rely on general-purpose pumps designed for high throughput and muddy water handling.

Other site activities require concentrated water force rather than simple volume transfer. You need a high-pressure pump for specific, force-driven workloads.

• Equipment washdown: Blasting dried mud and grease from heavy machinery.
• Concrete cleanup: Preparing surfaces and removing slurry.
• Hydroblasting: Stripping materials or cutting surfaces.
• Dust suppression: Forcing water through misting nozzles.

Contractors often deploy both pump types simultaneously on complex sites. Pressure-oriented and flow-oriented designs are optimized for entirely different tasks, making a single pump highly inefficient for both jobs.

Practical Selection Rules and Trade-Offs

General-purpose pumps offer simpler site deployment and better economy for routine water transfer. They run cheaper and require less maintenance, but they struggle immediately if the application demands strong outlet pressure.

High-pressure pumps easily overcome pipeline resistance and deliver aggressive cleaning power. The trade-off is their cost. They require larger capital investment, demand careful setup, and operate far less efficiently for simple volume dewatering.

The baseline rule for site use is matching the pump exactly to the primary problem. Use flow-focused equipment to remove accumulating water. Use pressure-focused equipment to perform physical work at the discharge point.

How to Choose Between a High Pressure and General Purpose Water Pump

Choose a high-pressure pump to force water through restrictions or up steep elevations, and a general-purpose pump to move large volumes quickly at a lower cost.

Core Technical Differences: Pressure vs. Flow

High-pressure models generate intense force, typically ranging from 100 psi to over 40,000 psi, to push water through system restrictions. General-purpose pumps operate at lower pressures, usually between 10 そして 100 psi, prioritizing the rapid movement of large water volumes. Pressure and flow share an inverse relationship. Optimizing a pump for high pressure generally reduces its overall flow rate.

Matching the Pump to Your Application

Buyers must assess whether the water needs to do work at the outlet or simply relocate. Select a high-pressure pump for tasks demanding force, such as operating sprinklers, executing industrial wash-downs, firefighting, or pushing water up steep elevations. Choose a general-purpose pump for moving water efficiently from point A to point B. This includes draining flooded areas, filling pools, or handling basic household water transfer.

Critical Performance Factors to Evaluate

Identifying the correct pump requires matching equipment capabilities against specific site conditions.

• Discharge pressure and total dynamic head: Verify the pump can overcome specific elevation changes and pipe friction.
• Target flow rate: Match the output directly to the volume requirements of the specific task.
• Fluid quality: Identify debris levels, as contaminated water requires specialized handling designs rather than standard clean-water pumps.
• Power source: Favor engine-driven pumps for off-grid portability and electric models for stationary setups.

料金, Energy, and Maintenance Trade-offs

General-purpose pumps require smaller motors, making them highly energy-efficient and less expensive to purchase upfront. High-pressure pumps utilize robust, precision-engineered materials to withstand operational stress. This specialized construction leads to higher initial costs and greater energy consumption. The complexity of high-pressure systems also results in a more demanding maintenance schedule compared to standard transfer pumps.

Common Selection Mistakes to Avoid

Failing to align pump specifications with the main operational goal leads to system failures and wasted capital.

• Using a high-pressure pump for simple transfer jobs: This wastes electrical or fuel energy and reduces flow efficiency.
• Underestimating pressure requirements: System performance drops rapidly when buyers ignore friction from spray nozzles, long hose runs, or restrictive fittings.
• Over-specifying specifications: Ensure the chosen pump aligns strictly with the primary objective rather than chasing unnecessary maximum ratings.

NEWTOP Water Pump Options for Different Applications

よくある質問
