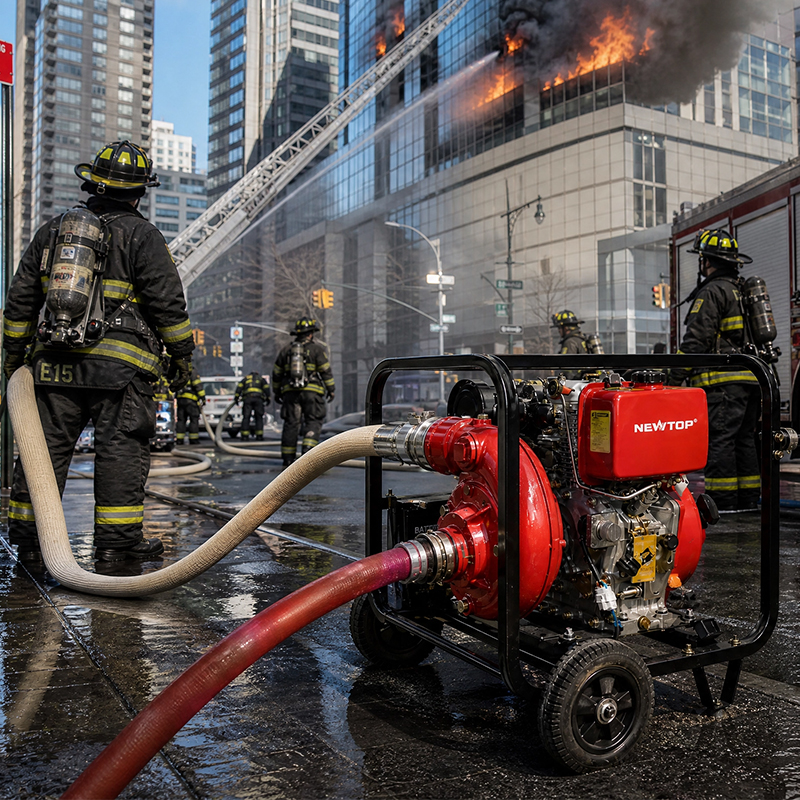

The NEWTOP NTDWP30CI-B is the stronger 3-inch diesel cast iron model for buyers who need both water volume and high-head delivery. Powered by an 8.6kW NTDE192F diesel engine, this pump delivers 44m³/h maximum discharge capacity, 90m Max. head lift, and 6m maximum suction head for demanding firefighting support, industrial emergency water supply and remote field pumping.
The NTDWP30CI-B is the stronger 3-inch diesel cast iron model, designed for applications where both water volume and lift height matter. It delivers 44m³/h maximum discharge capacity and 90m Max. head lift.
Its NTDE192F diesel engine provides 8.6kW rated power, making this model suitable for heavier water transfer tasks. The engine structure uses a 42CrMo forged steel crankshaft, BOSCH-technology fuel injection, and nitrided thickened gears to support stable performance under higher load.
This model is better suited to industrial buyers, emergency service suppliers, and municipal users who need stronger output from a 3-inch diesel fire water pump. Compared with the 30CI-A, it offers more power, higher lift, and stronger high-pressure delivery for demanding field work.
| Inlet/Outlet Dia.(in/mm) | 3"(80) |
| Lift H.max(M) | 90 |
| Flow Q.max(m³/h) | 44 |
| Suction H.max(M) | 6 |
| Motormodell | NTDE192FA |
| Broke x Stroke(mm) | 92x75 |
| Verschiebung(cc) | 499 |
| Rated Rotation Speed(U/min) | 3600 |
| Nennleistung(kW) | 8.6 |
| Loading Quantity(20"/40") | 173/318 |
