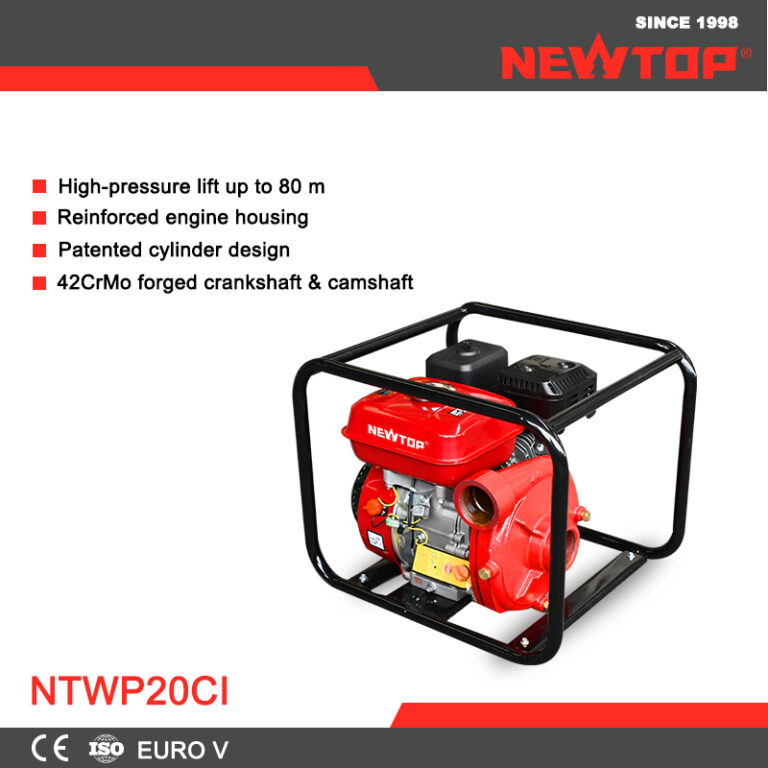

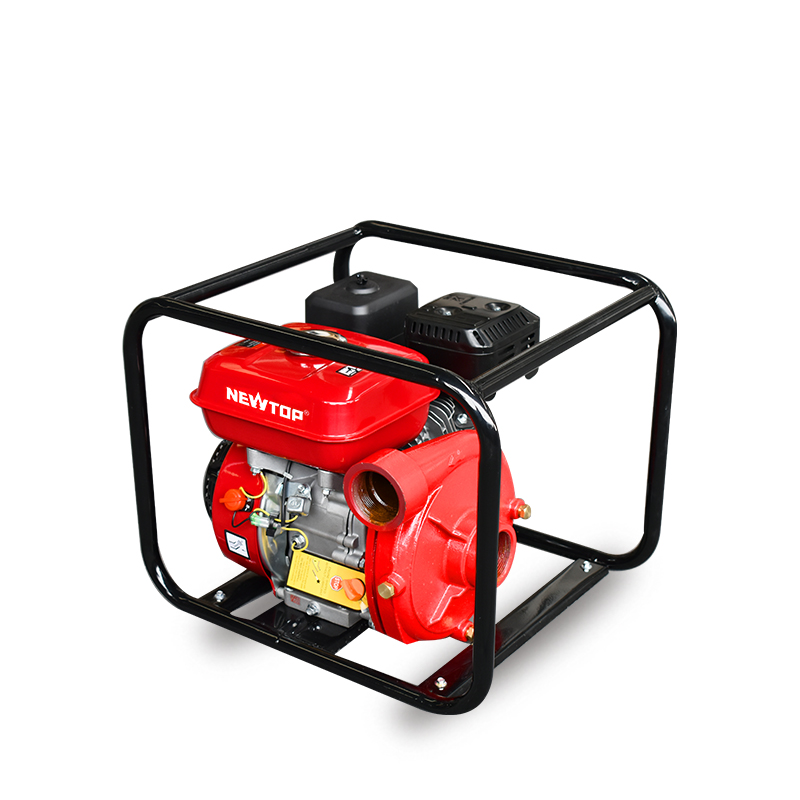

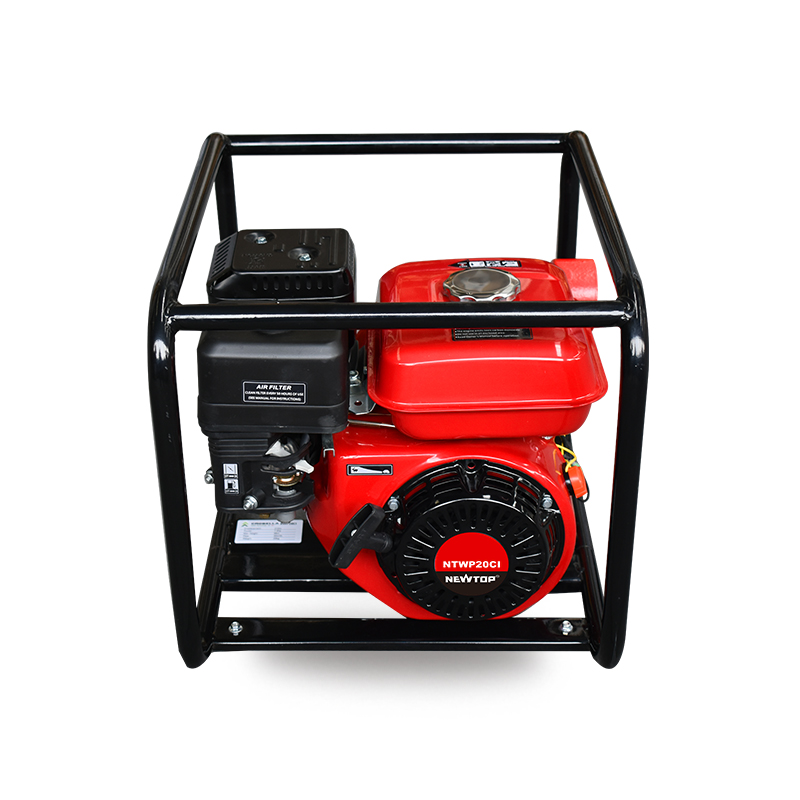

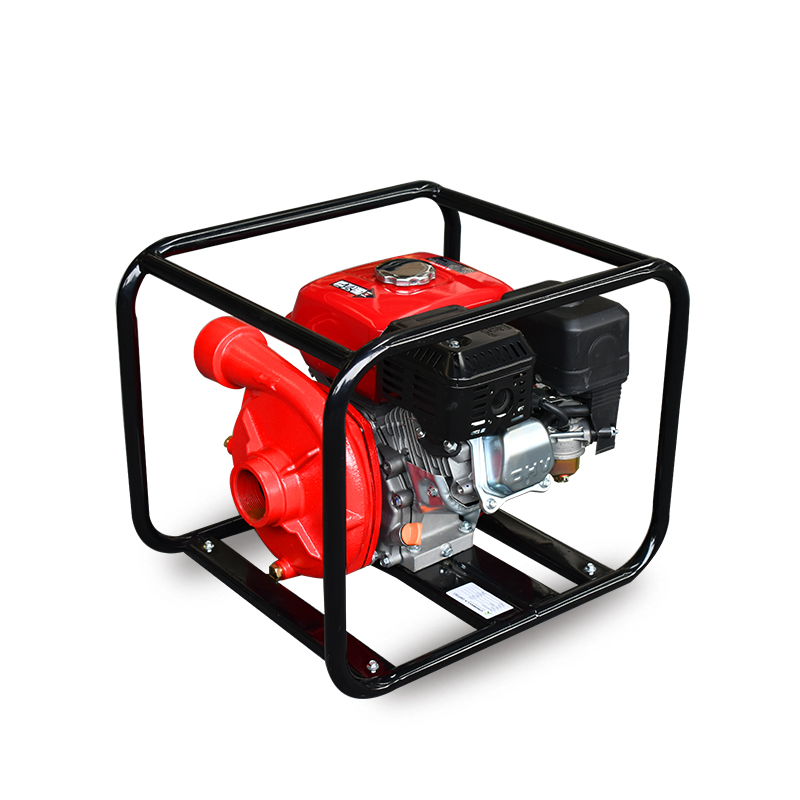

With a cast-iron centrifugal structure and NEWTOP’s reliable engine performance, the NTWP20CI delivers strong water-lifting capability and dependable operation even in demanding outdoor conditions. Its reinforced construction, smooth running, and stable high-pressure output make it suitable for irrigation, drenagem de emergência, and a wide range of professional applications.
The NTWP20CI is engineered around a cast-iron centrifugal pump system, combining high structural strength with excellent hydraulic efficiency. Isso é 175 mm cast-iron impeller and precisely machined flow-optimized body enable outstanding lift height, suction capability, and consistent flow—ideal for tasks that require sustained high-pressure output.
At the core is a NEWTOP 170F gasoline engine built with 42CrMo forged steel components, including the crankshaft and camshaft, ensuring exceptional durability and smooth torque delivery. The patented cylinder structure increases heat efficiency while reducing fuel consumption, and the strengthened engine casing enhances resistance to shock and vibration during long working hours. Every unit undergoes prolonged high-intensity endurance testing, ensuring stable operation across a wide temperature range from -5°C to 45°C.

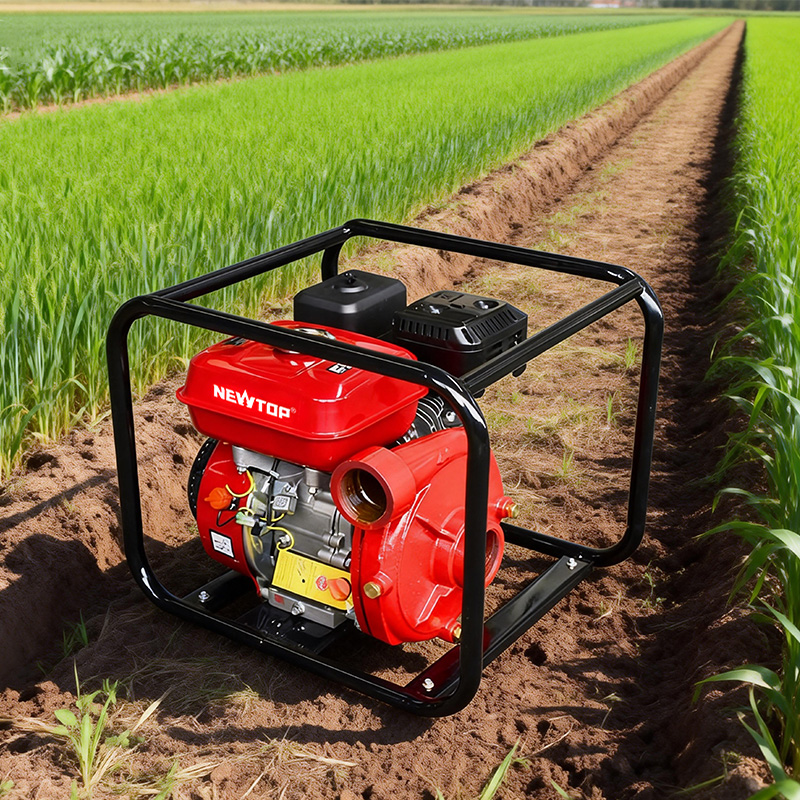

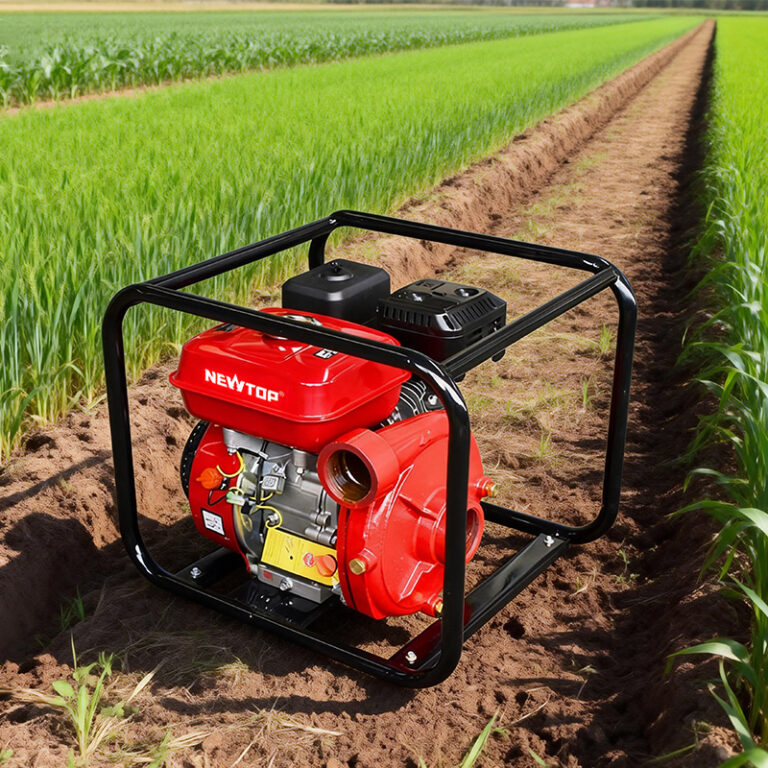

A dedicated full-frame chassis with an integrated damping structure significantly minimizes vibration, improving handling and long-term reliability. Início fácil, simple maintenance, and robust design make the NTWP20CI a dependable choice for agricultural irrigation, apoio ao combate a incêndios, emergency flood control, abastecimento de água doméstico, and marine-related pumping needs. Its performance and durability also make it a strong offering for gasoline water pump suppliers, fornecedores de máquinas de jardim, and outdoor power equipment dealers seeking a high-pressure cast-iron pumping solution.
| Tamanho da entrada | 50milímetros(2") |
| Tamanho da saída | 50milímetros(2") |
| Máx.. fluxo | 30m³/h |
| Altura de elevação | 80eu |
| Elevador de sucção | 6eu |
| Tipo de bomba | Centrifugal Pump |
| Material do impulsor | 175mm Cast Iron Impeller |
| Material do corpo da bomba | Cast iron |
| Modelo do motor | 170F |
| Tipo de motor | Cilindro único,Resfriamento de ar,4 AVC,OHV |
| Furo x Curso(milímetros) | 70x55 |
| Taxa de compressão | 8.5:1 |
| Máx.. Saída | 7.0HP |
| Torque Máx. | 13.5Nm |
| Deslocamento | 212CC |
| Material do virabrequim | Aço de queda |
| Material da árvore de cames | Aço de queda |
| Consumo de combustível(g/kw.h) | ≤395 |
| Tipo inicial | Manual |
| Capacidade do tanque de combustível | 3.6eu |
| Capacidade de óleo | 0.6eu |
