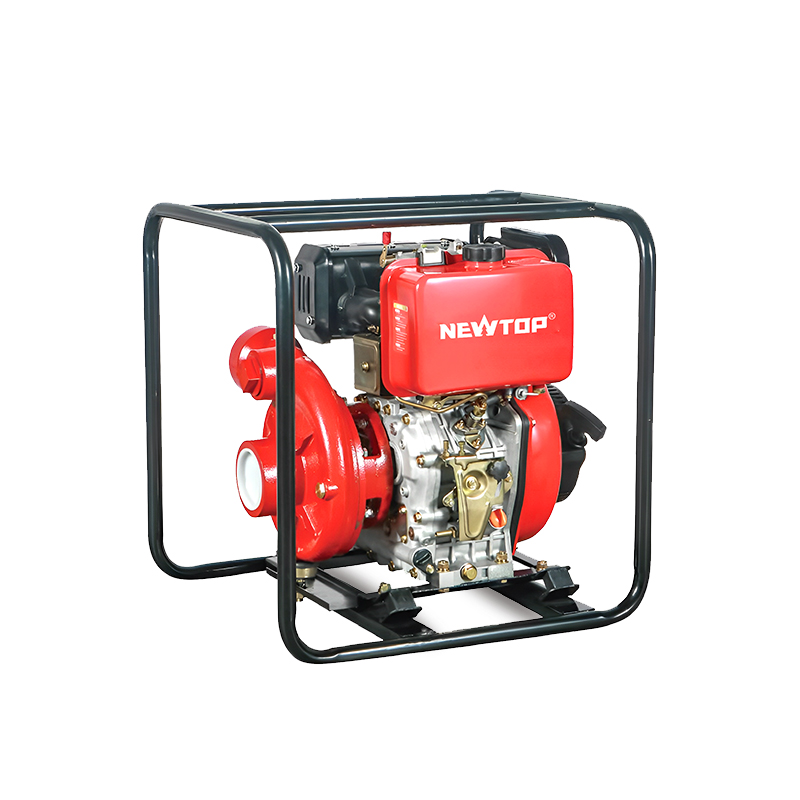

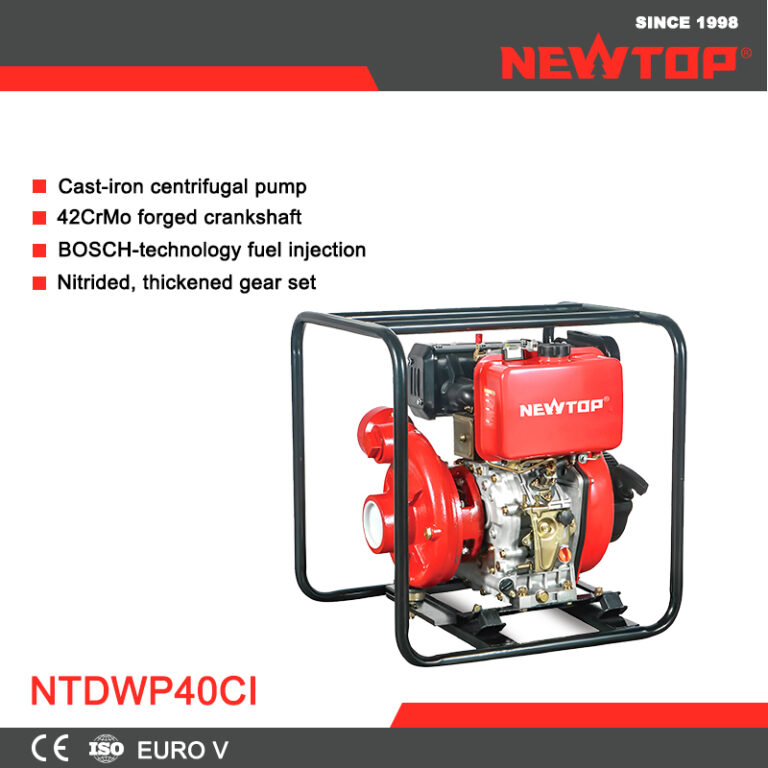

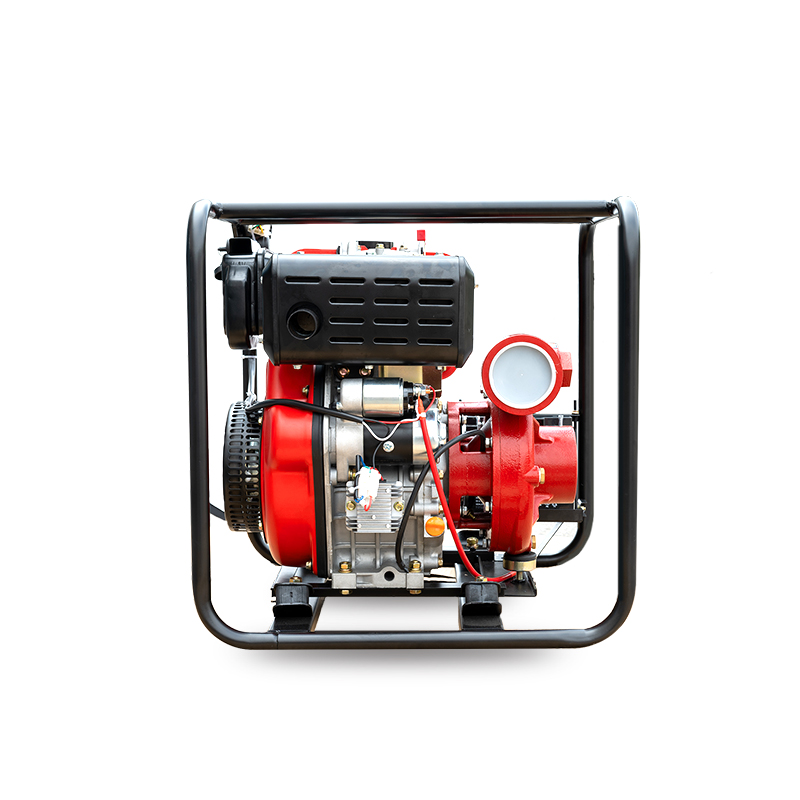

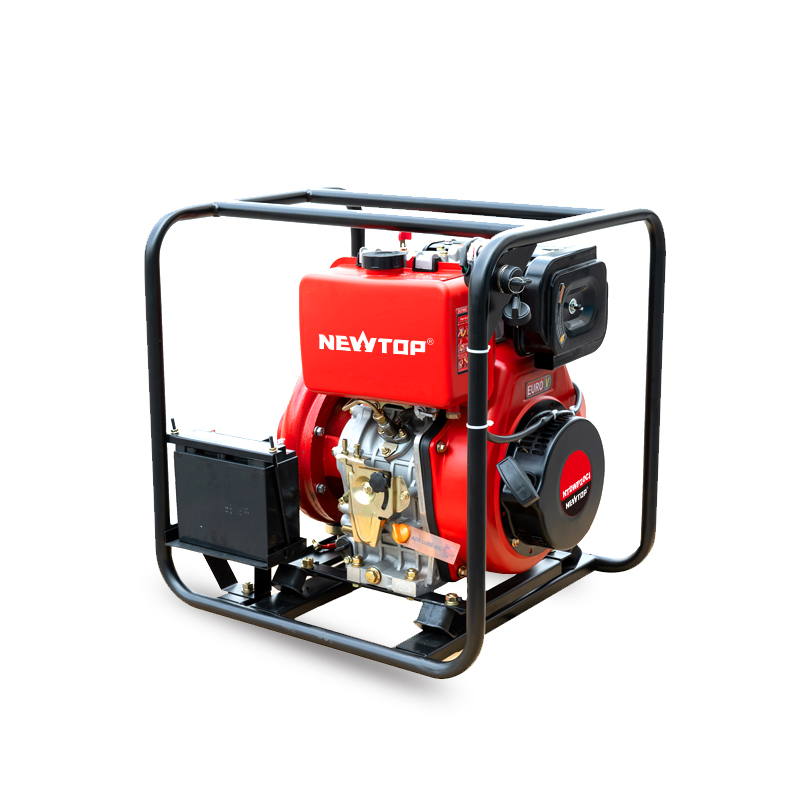

Built for significant water-movement applications, the NEWTOP NTDWP40CI utilizes a robust cast-iron pump and a high-torque diesel engine to deliver strong flow while maintaining stable lift performance. It is ideal for large-area irrigation and emergency pumping.
The NEWTOP NTDWP40CI provides strong flow performance up to 93 m3/h, thanks to its hydraulically optimized cast-iron pump structure. Its diesel engine incorporates premium materials and a fuel-efficient injection system, ensuring excellent reliability during extended pumping cycles.

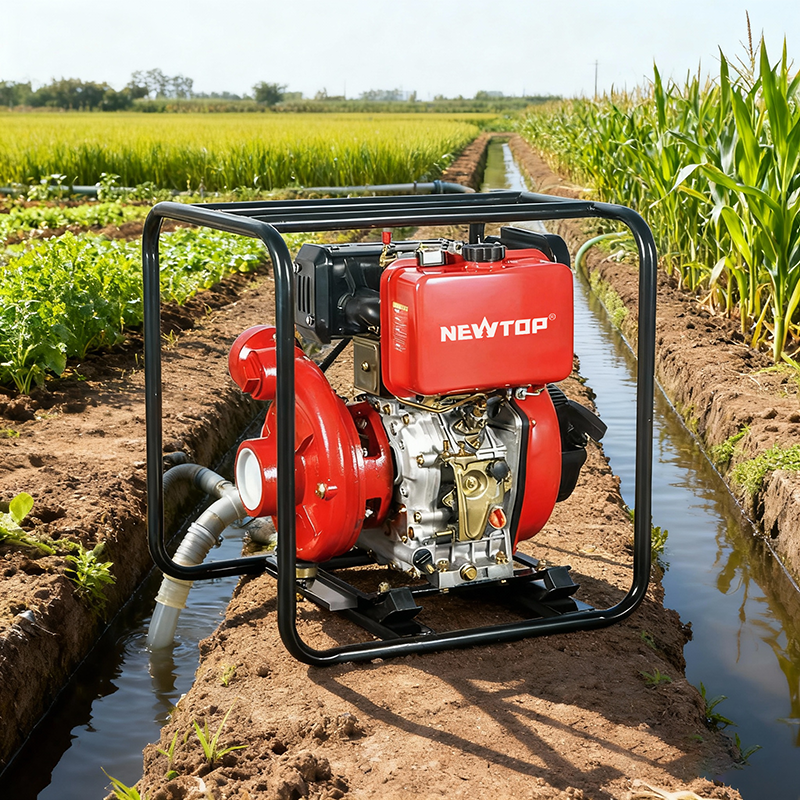

The pump’s reinforced frame and anti-vibration design increase stability during operation, making it suitable for agricultural irrigation, large-volume drainage, fire-support water movement, rural water supply and similar demanding environments.
| 入口/出口径(インチ/ミリメートル) | 4」(100) |
| リフトH.max(メートル) | 40 |
| 流量Q.max(m3/h) | 93 |
| 吸引H.max(メートル) | 6 |
| エンジン型式 | NTDE192FA |
| ブローク×ストローク(mm) | 92×75 |
| 変位(cc) | 499 |
| 定格回転数(回転数) | 3600 |
| 定格電力(kW) | 8.6 |
| 積載量(20「/40」) | 173/318 |
