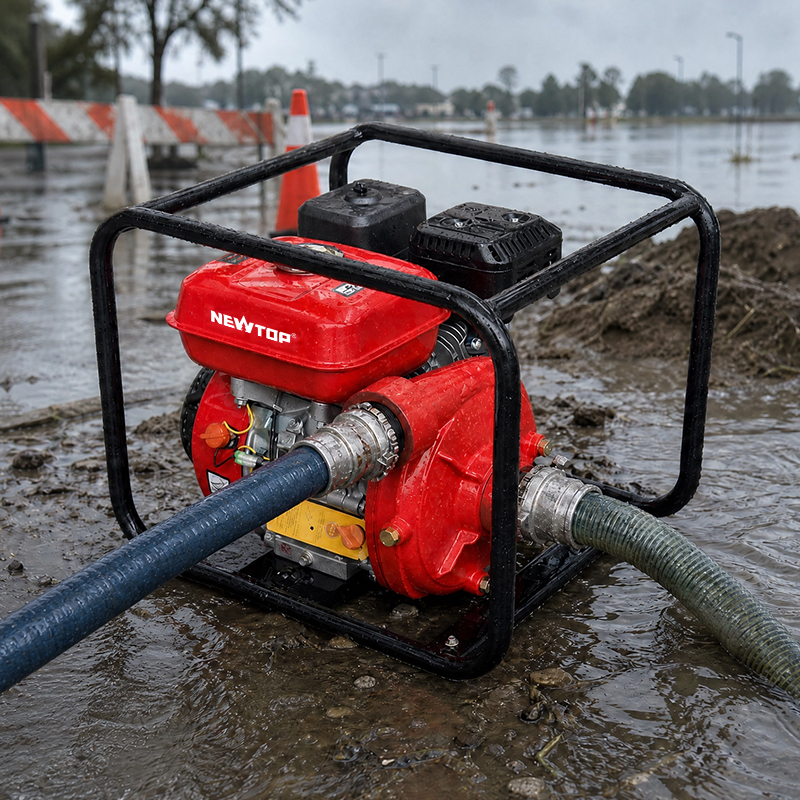

For buyers who need higher lift and stronger water volume from a gasoline-driven model, the NEWTOP NTWP30CI upgrades the platform to a 3-inch cast iron centrifugal structure. Its 420cc 190F gasoline engine, 40m³/h maximum flow, 92m lift height, and 6m suction lift make it suitable for elevated fire water delivery, long-distance field transfer, and demanding outdoor water supply work.
The NTWP30CI is the stronger gasoline cast iron option for users who need both larger water volume and higher delivery height. Compared with the NTWP20CI, this 3-inch model increases maximum flow to 40m³/h and raises lift height to 92m, making it better suited for longer-distance water transfer and elevated fire water delivery.
A 420cc 190F gasoline engine with 15HP maximum output gives this model a clear power advantage. The engine uses 42CrMo drop-forged steel crankshaft and camshaft materials, while the reinforced engine housing and full-frame vibration reduction structure help maintain stability during heavy outdoor use.
The 208mm cast iron impeller and cast iron pump body make the NTWP30CI a more robust choice for buyers who want a heavy-duty gasoline fire water pump. It is especially suitable when customers are comparing models by lift height, engine power, and durable field operation rather than only by inlet size.
| Inlet Size | 80milímetros(3") |
| Outlet Size | 80milímetros(3") |
| máx.. flow | 40m³/h |
| Lift Height | 92metro |
| Elevación de succión | 6metro |
| Tipo de bomba | Centrifugal Pump |
| Material of Impeller | 208mm Cast Iron Impeller |
| Material of Pump body | Hierro fundido |
| Modelo de motor | 190F |
| Tipo de motor | Cilindro único,Refrigeración por aire,4 ataque,OHV |
| Diámetro x Carrera(milímetros) | 90x66 |
| Relación de compresión | 8.5:1 |
| máx.. Producción | 15CV |
| Par máximo | 26Nuevo Méjico |
| Desplazamiento | 420cc |
| Material del cigüeñal | Acero de caída |
| Material of Camshaft | Acero de caída |
| Consumo de combustible(g/kw.h) | ≤370 |
| Tipo de inicio | Manual |
| Capacidad del tanque de combustible | 6.5l |
| Capacidad de aceite | 1.1l |
