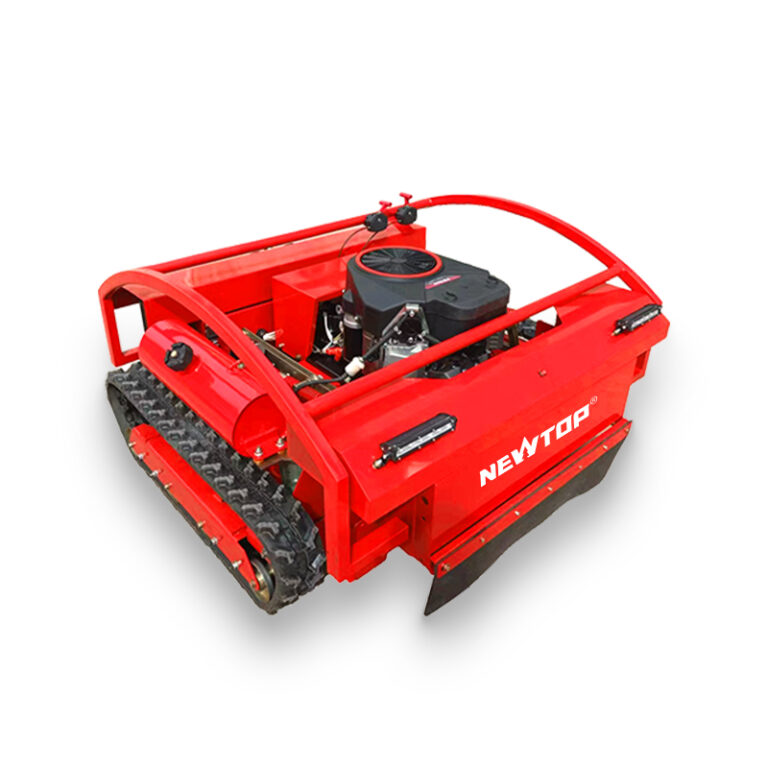

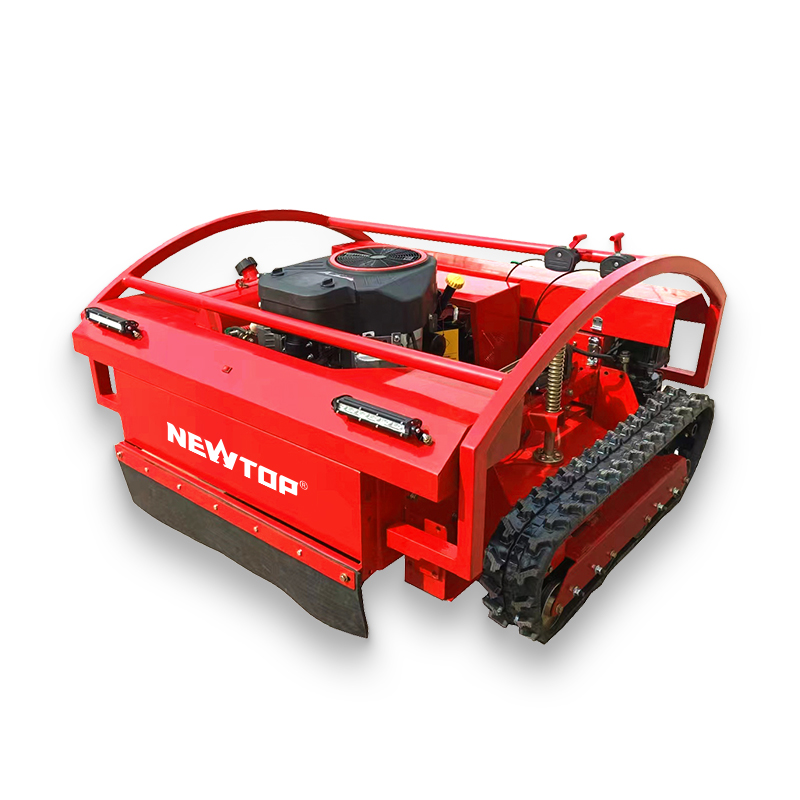

Rasaerba robotizzato NTRLM90-2-1P

Rasaerba robotizzato NTRLM90-2-1P

The NEWTOP Robotic Lawn Mower NTRLM90-2-1P is a high-output crawler-type robotic lawn mower developed for fully intelligent, large-area unmanned mowing. Integrating RTK-level positioning, automatic start–stop control, and multi-sensor perception, this robotic lawn mower delivers powerful field capability, precise navigation, and secure autonomous operation for demanding outdoor projects.

Punti salienti

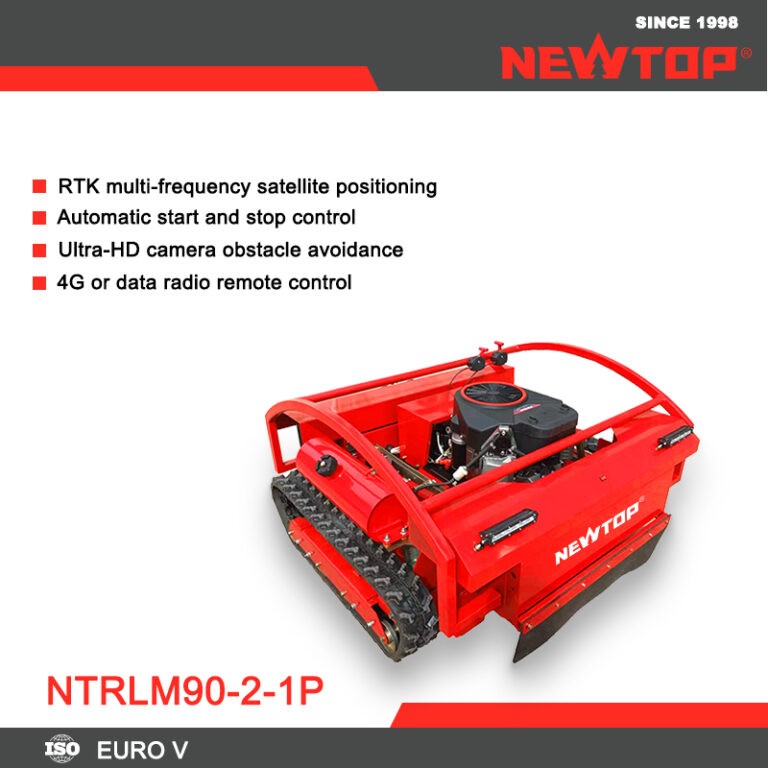

RTK multi-frequency satellite positioning with BeiDou support for precise unmanned navigation
Intelligent route planning with automatic start and stop control
Multi-sensor real-time perception combined with ultra-HD camera obstacle avoidance
4G or data radio remote control for long-distance supervision and status monitoring
Multi-machine cluster operation supported through independent base station deployment

Caratteristiche del prodotto

The NEWTOP NTRLM90-2-1P robotic lawn mower operates on a multi-frequency RTK satellite positioning system, supporting BeiDou and other navigation systems to achieve high-precision path guidance. This enables the robotic lawn mower to maintain accurate mowing routes and stable coverage across large open areas during unmanned operation.

Its control architecture is built around intelligent planning, decision execution, and full driving control, with support for automatic forward movement, girando, Inversioni di marcia, acceleration, decelerazione, and reverse driving. With the inclusion of automatic ON/OFF functionality, the mower can be remotely started and stopped, enabling a higher level of intelligent automation compared with manual-start models.

For operational safety and environmental awareness, the system integrates multiple real-time protection sensors, including speed, livello dell'olio, condizione di viaggio, e monitoraggio della temperatura. These sensors work together with an ultra-HD camera system for automatic obstacle detection and avoidance, forming a multi-layer safety perception structure for complex outdoor environments.

Designed for high-load continuous operation, the NTRLM90-2-1P adopts a crawler-type driving system with self-generating and charging capability, fornendo una forte trazione, prestazioni di arrampicata stabili, and uninterrupted power during long working cycles. With support for 4G or wireless data transmission and up to 200 m remote control distance, multiple units can be coordinated through dedicated base station deployment for cluster operation. Come un rasaerba robotizzato NEWTOP per impieghi gravosi, the NTRLM90-2-1P is engineered for users who require high power output, intelligent automation, and scalable multi-machine mowing performance.

Mettiti in contatto

Evidenzia Galleria

Specifiche del prodotto

Marchio del produttore del motoreLONCIN
Modello del motoreLC764CC
Energia (CV/giri/min)22CV/3600 giri/min
Spostamento (cc)764cc
Tipo di guidaTipo cingolato
Larghezza di taglio (pollici/mm)800mm
Altezza di taglio, min - massimo (mm)30~150mm
Autogenerante&ricarica
Distanza del telecomando200M
Accensione/spegnimento automatico
Sollevamento utensile
Accelerazione
Decelerazione
Inoltrare
Indietro
Girando
Inversione di marcia
