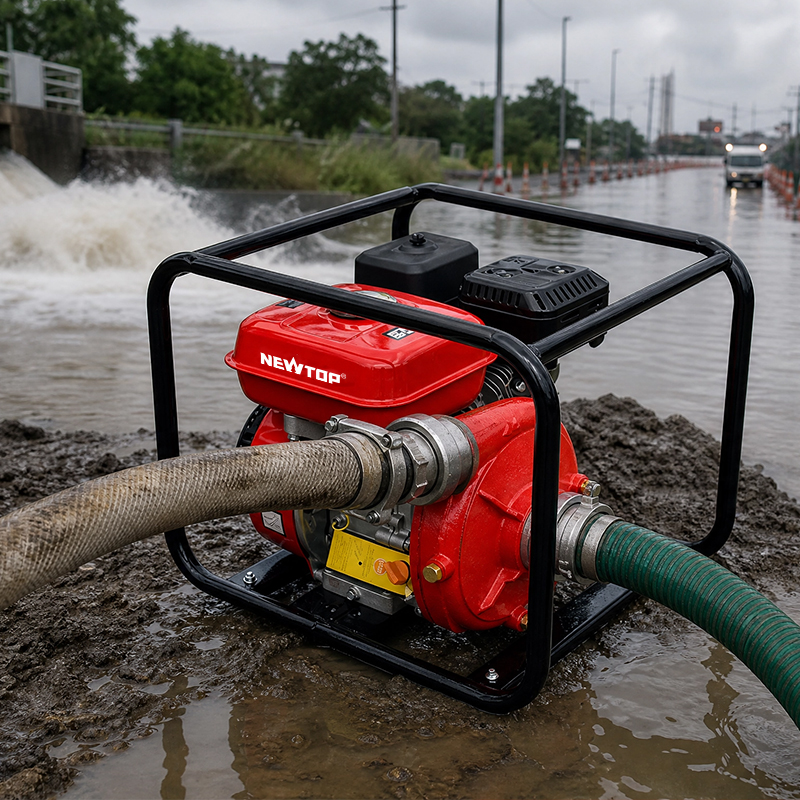

Compact in size yet built for high-lift water delivery, the NEWTOP NTWP20CI Gasoline Cast Iron Fire Water Pump is a 2-inch model designed for outdoor firefighting support, field irrigation, and emergency water transfer. With 30m³/h maximum flow, 80m lift height, 6m suction lift, and a 212cc 170F gasoline engine, it offers a practical balance of portability, pressure performance, and cast iron durability.
Compact size and high lift performance are the main reasons to choose the NEWTOP NTWP20CI. With a 2-inch inlet and outlet, 30m³/h maximum flow, 80m lift height, and 6m suction lift, this model is suitable for users who need a portable gasoline fire water pump that can still deliver strong pressure over distance.
Its cast iron pump body and 175mm cast iron impeller provide the structural strength needed for repeated outdoor operation. Electrophoretic processing on the pump housing, bracket, and impeller helps improve wear and corrosion resistance, which is useful when the machine works around rivers, wells, ponds, or muddy water-source areas.
Powered by a 212cc 170F gasoline engine, the NTWP20CI offers easy manual starting, simple handling, and stable output in a smaller frame. For dealers, it is a practical compact high-lift cast iron model that balances portability, durability, and firefighting support performance.
| Inlet Size | 50mm(2") |
| Outlet Size | 50mm(2") |
| Max. flow | 30m³/h |
| Lift Height | 80m |
| Suction Lift | 6m |
| Pump Type | Centrifugal Pump |
| Material of Impeller | 175mm Cast Iron Impeller |
| Material of Pump body | Cast iron |
| Engine Model | 170F |
| Engine Type | Single cylinder,Air cooling,4 stroke,OHV |
| Bore x Stroke(mm) | 70x55 |
| Compression Ratio | 8.5:1 |
| Max. Output | 7.0hp |
| Max.Torque | 13.5N.m |
| Displacement | 212cc |
| Material of Crankshaft | Drop-froging Steel |
| Material of Camshaft | Drop-froging Steel |
| Fuel Consumption(g/kw.h) | ≤395 |
| Starting Type | Manual |
| Fuel Tank Capacity | 3.6L |
| Oil Capacity | 0.6L |
