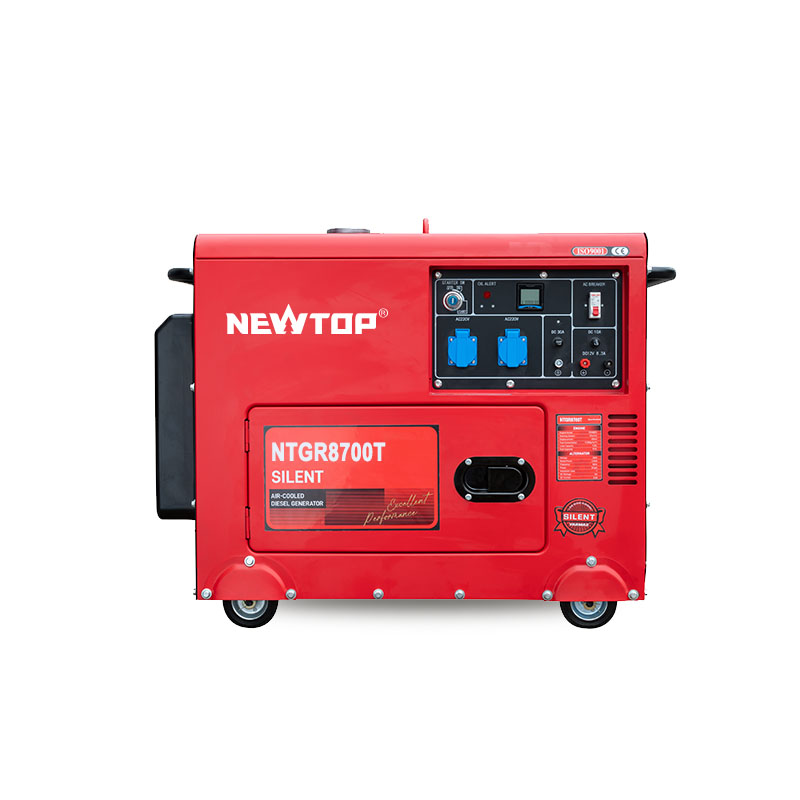

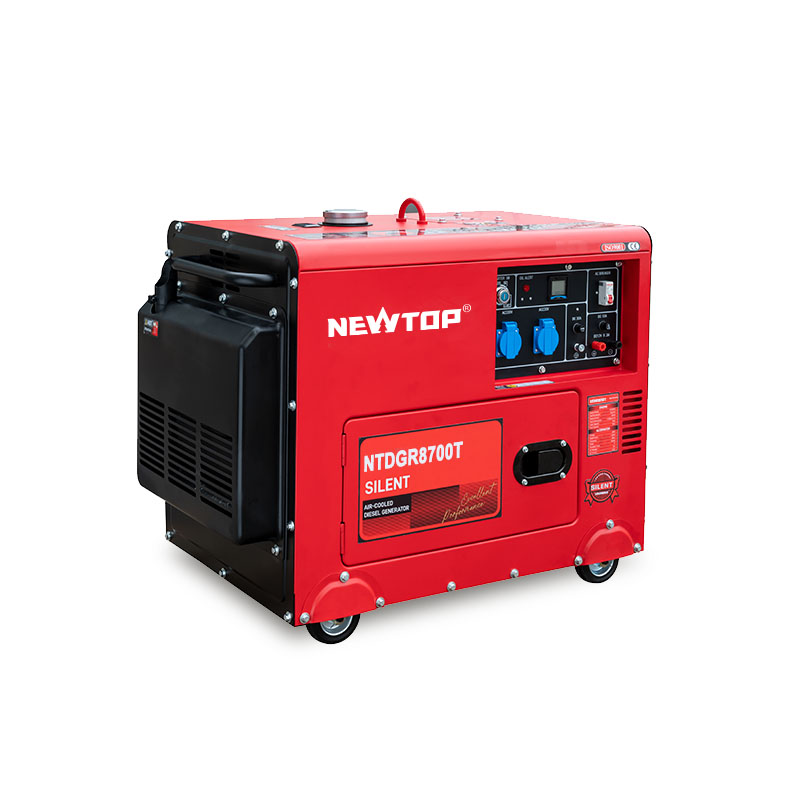

조용한 디젤 발전기 NTDGR8700T

The NEWTOP Silent Diesel Generator NTDGR8700T is built for higher-demand applications, offering robust output for construction machinery, commercial equipment, and larger backup systems. Its enhanced mechanical strength and controlled operating noise make it fit for professional and urban work environments.

하이라이트

Provides stronger power delivery for construction sites, 상업시설, and mobile operations

Heavy-duty forged crankshaft and nitrided geartrain maintain smooth performance under high torque output

BOSCH-technology injection system ensures efficient fuel usage and improved thermal stability

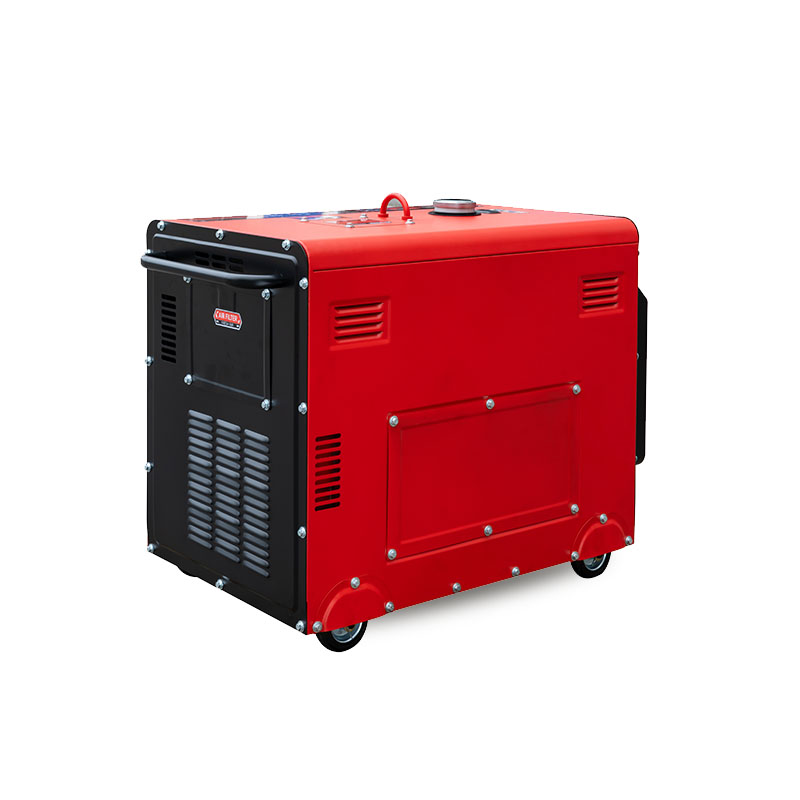

Silent enclosure design effectively reduces noise to meet urban or regulated job-site requirements

Copper-coil alternator and integrated safety monitoring maintain reliable output for heavy tools and sensitive devices

제품특징

Featuring a high-capacity diesel engine built with NEWTOP’s forged 42CrMo crankshaft and nitrided gear structure, the NTDGR8700T offers excellent durability for high-load equipment. Its BOSCH-technology fuel-injection system ensures precise fuel delivery, contributing to improved combustion efficiency and stable output during long intervals of use. This robust mechanical foundation makes the unit suitable for construction and field service applications.

A copper-coil alternator delivers stable electrical waveform performance suitable for heavier tools and power-sensitive equipment. Supported by a silent housing, the noise level remains controlled—an advantage for urban construction, mobile technical operations, or commercial backup installations. The model also benefits users searching for dependable diesel generator suppliers offering strong, consistent power.

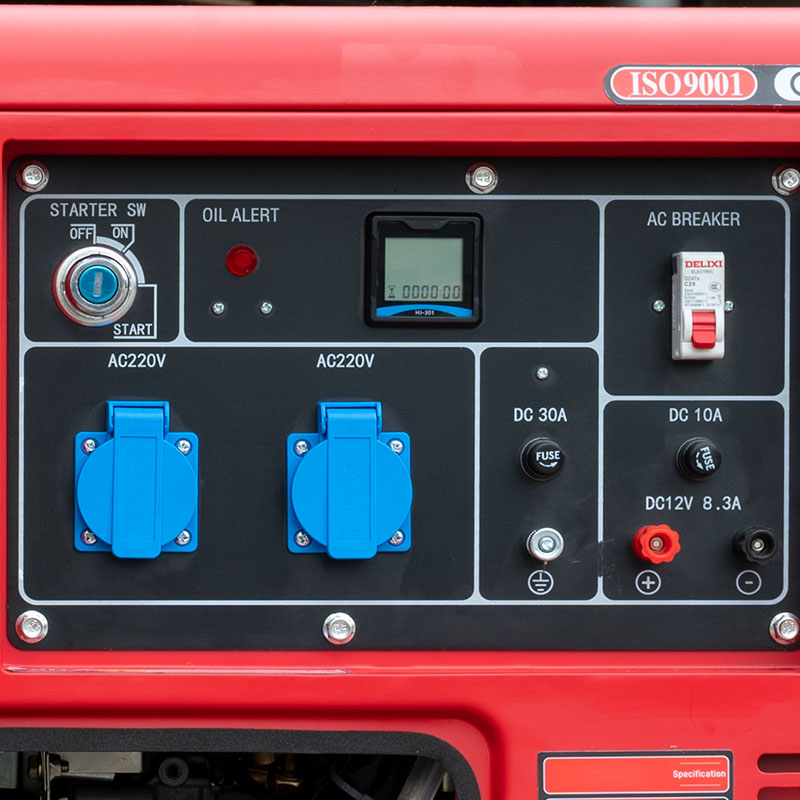

The digital control panel offers real-time information while incorporating essential protections such as short-circuit prevention and low-oil alerts. With easy electric start and a reliable power system, the NEWTOP Silent Diesel Generator NTDGR8700T is ideal for construction teams, 상업시설, and professional environments requiring dependable, quiet diesel power.

연락하세요

제품 사양

Rated frequency(Hz)	50 60
정격 출력(kW)	6.0 6.3
맥스. output(kW)	6.5 7.2
Rated voltage(다섯)	220V or as request
Rated currency(에이)	27.2 28.6
정격 회전 속도(rpm)	3000 3600
Phase NO.	Single phase
Power factor(Cos Φ)	1
Insulation Grade	에프
Pole number	2
Excitation mode	Self-excitation & constant voltage (AVR)
Panel Type	General Panel
Receptacle	Two receptacles
DC12V output	Connection pole output
Overall dimension(L×W×H)(mm)	945555700
Dry weight(킬로그램)	155
Working assorting weight(킬로그램)	165
Noise level（7m）[d B(에이)]	72
Structure type	Silent type
엔진 모델	NTDE192F
엔진 유형	단일 실린더, 수직의, 4행정, 직접 주입, 공냉식
Cylinder NO.-bore×stroke(mm)	1-92*75
배수량(참조)	498
정격 출력[kW(rpm)]	7.6/3000 8.2/3600
압축비	19:01
Lubrication system	Pressure splashed
시동 시스템	전기 같은
Fuel type	diesel0＃（summer）-10＃（winter）-35＃（chillness）diesel
Lube oil brand	CD grade or SAE10W-30, 15W-40
Lube capacity(엘)	1.65
Starting motor capacity(V-kW)	12V 1.2kW
Charging generator capacity(V-A)	12V 8.3A
Battery capacity(v-Ah)	12V 30Ah
연료 소비(glkw*h)	≤280
연료탱크 용량(엘)	15
연속 실행 시간(시간)	5.5
