The T8/T9.8 Outboard Motor Parts Set emphasizes precision and durability suited for small-engine outboard systems. Crank-related components are made to deliver balanced rotation, while the piston and ring assemblies help maintain strong compression and consistent operational response.
Gear case and gear parts are engineered for accurate engagement, supporting smooth acceleration and reliable thrust. All major assemblies are produced using corrosion-resistant materials to better withstand water exposure and frequent usage common in small marine engines.
These replacement components provide dependable maintenance solutions for marine users, outdoor power equipment dealers, and small-boat operators who require an Outboard Motor Parts Set with stable quality and practical service life.

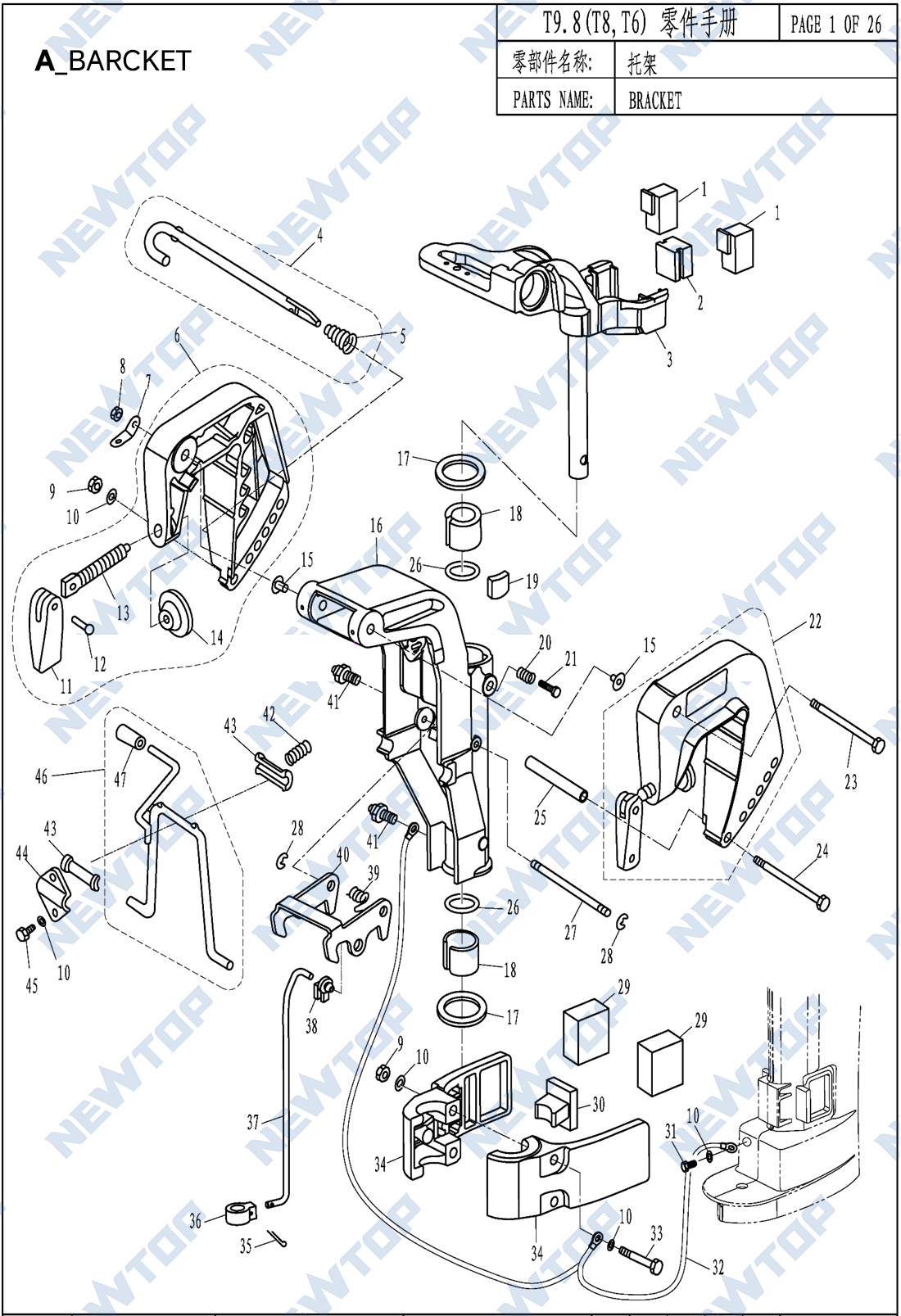

| A1 | ABSORBER B |
|---|---|
| A2 | DAMPER B, FRONT |
| A3 | HELM BRACKET ASSY |
| A4 | LIMITATIVE ROD, TILT LOCK |
| A5 | CONICAL SPRING |
| A6 | LEFT CLAMP BRACKET ASSY |
| A7 | PLATE, TWO HOLE |
| A8 | LOCK NUT M8 |
| A9 | NUT M6 |
| A10 | WASHER 6 |
| A11 | HANDLE, CLAMP |
| A12 | RIVET, CLAMP HANDLE |
| A13 | SCREW, CLAMP |
| A14 | CLAMP PLATE |
| A15 | WASHER, NYLON |
| A16 | BRACKET, ROTARY |
| A17 | WASHER, ROTARY BRACKET |
| A18 | BUSH, ROTARY BRACKET |
| A19 | LOCKED BLOCK ASSY |
| A20 | SPRING, LOCKING |
| A21 | BOLT M8x30 |
| A22 | RIGHT CLAMP BRACKET ASSY |
| A23 | BOLT M8x140 |
| A24 | BOLT M6x130 |
| A25 | BUSH, BOLT |
| A26 | O-RING 19.8x4.2 |
| A27 | SHAFT, ROTARY BRACKET |
| A28 | CIRCLIP 5 |
| A29 | ABSORBER A |
| A30 | DAMPER A, FRONT |
| A31 | BOLT M6x8 |
| A32 | EARTH WIRE B |
| A33 | NUT M6x65 |
| A34 | COVER, ABSORBER |
| A35 | COTTER PIN 2x16 |
| A36 | BRACKET, LOCK HOOK |
| A37 | LINK, LOCK HOOK |
| A38 | JOINT, INNER FRAME |
| A39 | SPRING, WREST |
| A40 | INNER FRAME. ROTARY BRACKET |
| A41 | NIPPLE, GREASE M6 |
| A42 | SPRING, SUPPORT |
| A43 | BUSH, NYLON |
| A44 | PRESS PLATE |
| A45 | BOLT M6x12 |
| A46 | BRACKET ASYY, TILT LOCK |
| A47 | JACKET, HANDLE |

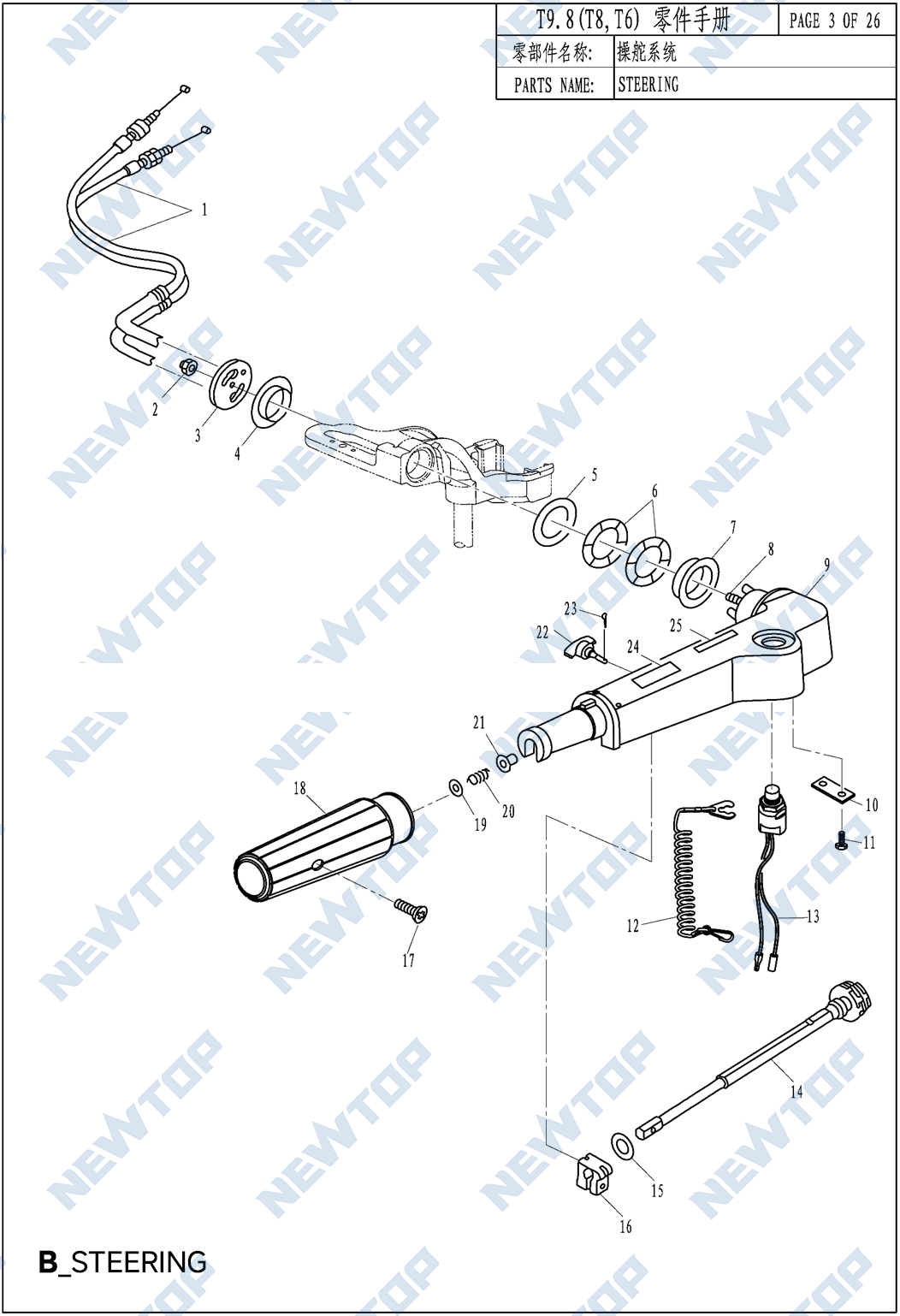

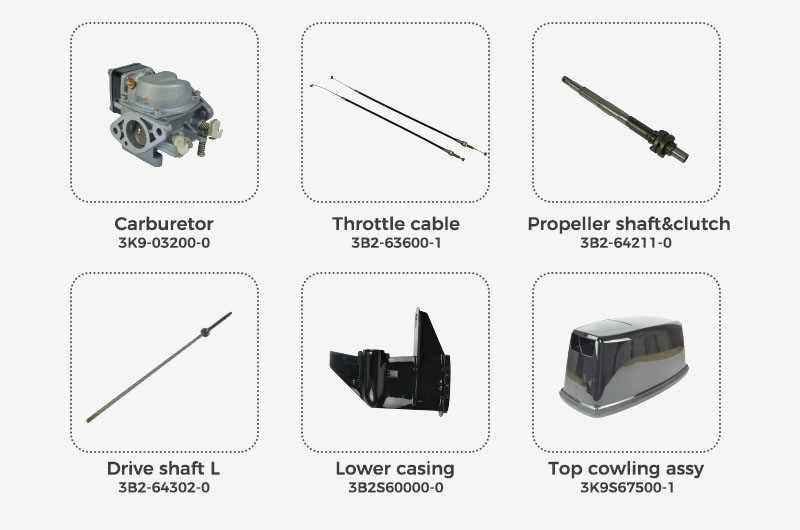

| B1 | THROTTLE CABLE ASSY |
| B2 | LOCK NUT M8 |
| B3 | PLATE, HANDLE |
| B4 | BUSH, HANDLE |
| B5 | WASHER, NYLON |
| B6 | WAVE WASHER |
| B7 | BUSH, HANDLE |
| B8 | BOLT STUD M8x25 |
| B9 | TILLER HANDLE |
| B10 | FIXED PLATED, THROTTLE |
| B11 | SCREW M5x12 |
| B12 | STOPER, HANG ROPE ASSY |
| B13 | ENGINE STOP SWITCH ASSY |
| B14 | THROTTLE LEVER ASSY |
| B15 | WASHER, NYLON |
| B16 | FRICTION, TILLER HANDLE |
| B17 | SCREW M5x25 |
| B18 | GRIP ASSY, TILLER HANDLE |
| B19 | WASHER 10 |
| B20 | SPRING |
| B21 | BUSH |
| B22 | KNOB ASSY, FRICTION ADJUSTING |
| B23 | COTTER PIN 1.6x12 |
| B24 | MARK 14 |
| B25 | MARK 16 |

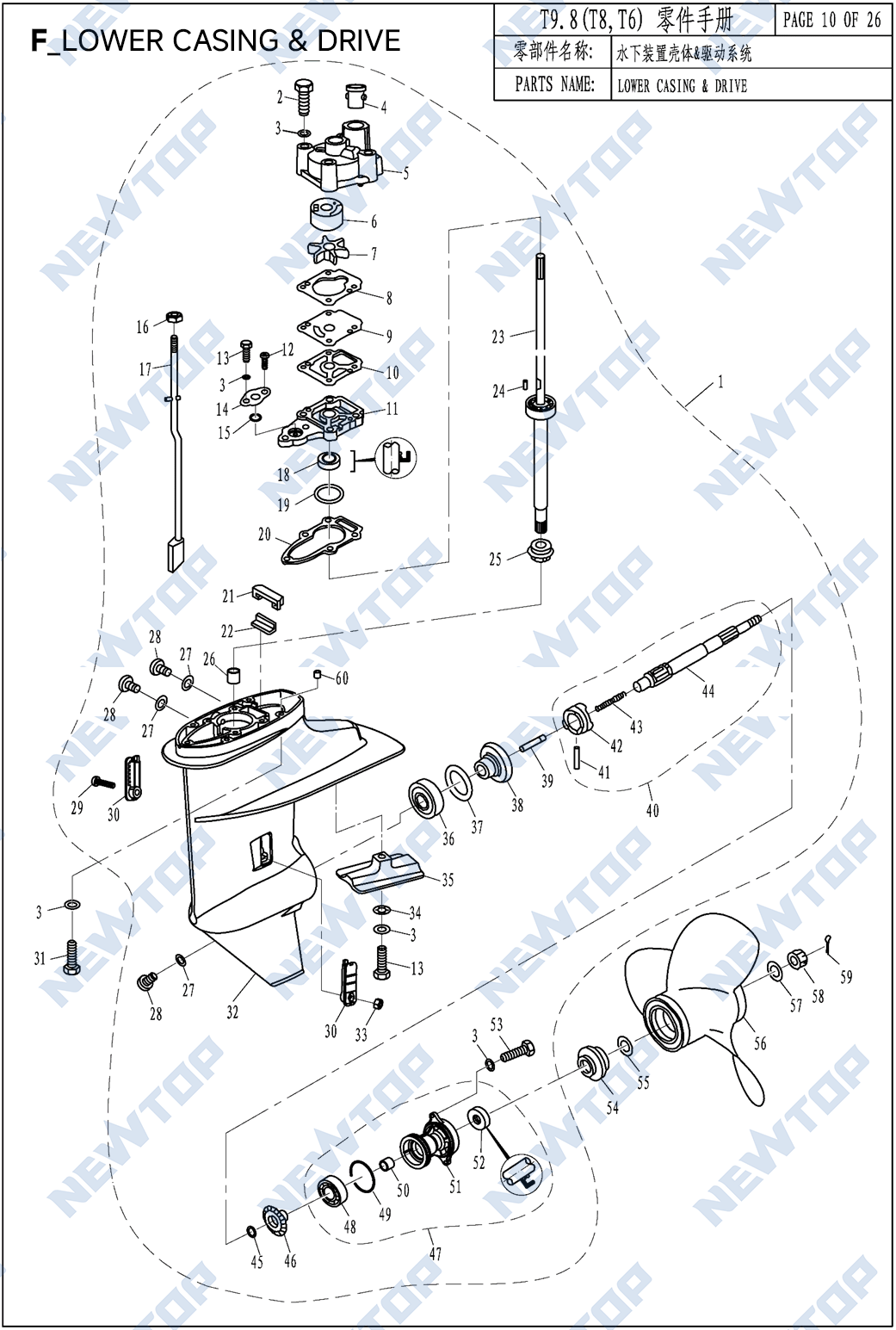

| F1 | LOWER CASING ASSY L |
| LOWER CASING ASSY S | |
| F2 | BOLT M6x50 |
| F3 | WASHER 6 |
| F4 | BUSH, WATER TUBE |
| F5 | HOUSING, WATER PUMP |
| F6 | INSERT COVER, WATER PUMP |
| F7 | IMPELLER ASSY |
| F8 | GASKET, OUTER PLATE |
| F9 | OUTER PLATE |
| F10 | GASKET, OUTER PLATE |
| F11 | BASE, WATER PUMP |
| F12 | SCREW M5x6 |
| F13 | BOLT M6x25 |
| F14 | PLATE, O-RING |
| F15 | O-RING 4.9X3.5 |
| F16 | NUT M5 |
| F17 | SHIFT CAM SHAFT ASSY L |
| SHIFT CAM SHAFT ASSY S | |
| F18 | OIL SEAL 12.1x24x8 |
| F19 | SHIM T:0.10mm |
| SHIM T:0.15mm | |
| SHIM T:0.20mm | |
| F20 | GASKET, WATER PUMP BASE |
| F21 | GASKET, WATER SEAL |
| F22 | WATER SEAL |
| F23 | DRIVE SHAFT ASSY L |
| DRIVE SHAFT ASSY S | |
| F24 | PIN, IMPELLER |
| F25 | PINION |
| F26 | NEEDLE BEARING |
| F27 | GASKET, SCREW PLUG |
| F28 | SCREW PLUG |
| F29 | SCREW M4x25 |
| F30 | WATER INLET |
| F31 | BOLT M6x35 |
| F32 | LOWER CASING |
| F33 | LOCK NUT M4 |
| F34 | LOCKING WASHING 6 |
| F35 | ANODE |
| F36 | BEARING 6204 |
| F37 | SHIM T:0.15mm |
| SHIM T:0.15mm | |
| F38 | FORWARD GEAR ASSY |
| F39 | PIN, CLUTCH |
| F40 | PROPELLER SHAFT ASSY |
| F41 | PIN 3.5x28 |
| F42 | CLUTCH, DOG |
| F43 | SPRING, CLUTCH |
| F44 | SHAFT, PROPELLER |
| F45 | WASHER, REVERSE GEAR |
| F46 | GEAR, REVERSE |
| F47 | COVER ASSY, LOWER CASING |
| F48 | BEARING 6004C2 |
| F49 | O-RING |
| F50 | BARREL BEARING |
| F51 | COVER, LOWER CASING |
| F52 | OIL SEAL 15x28x10 |
| F53 | BOLT M6x20 |
| F54 | SPACER, PROPELLER SHAFT |
| F55 | SPACER, PROPELLER SHAFT |
| F56 | PROPELLER ASSY 3-8.9"x8.3" |
| F57 | BIG WASHER 10 |
| F58 | SLOTTED NUT |
| F59 | COTTER PIN 2.5x20 |
| F60 | HOLLOW PIN |

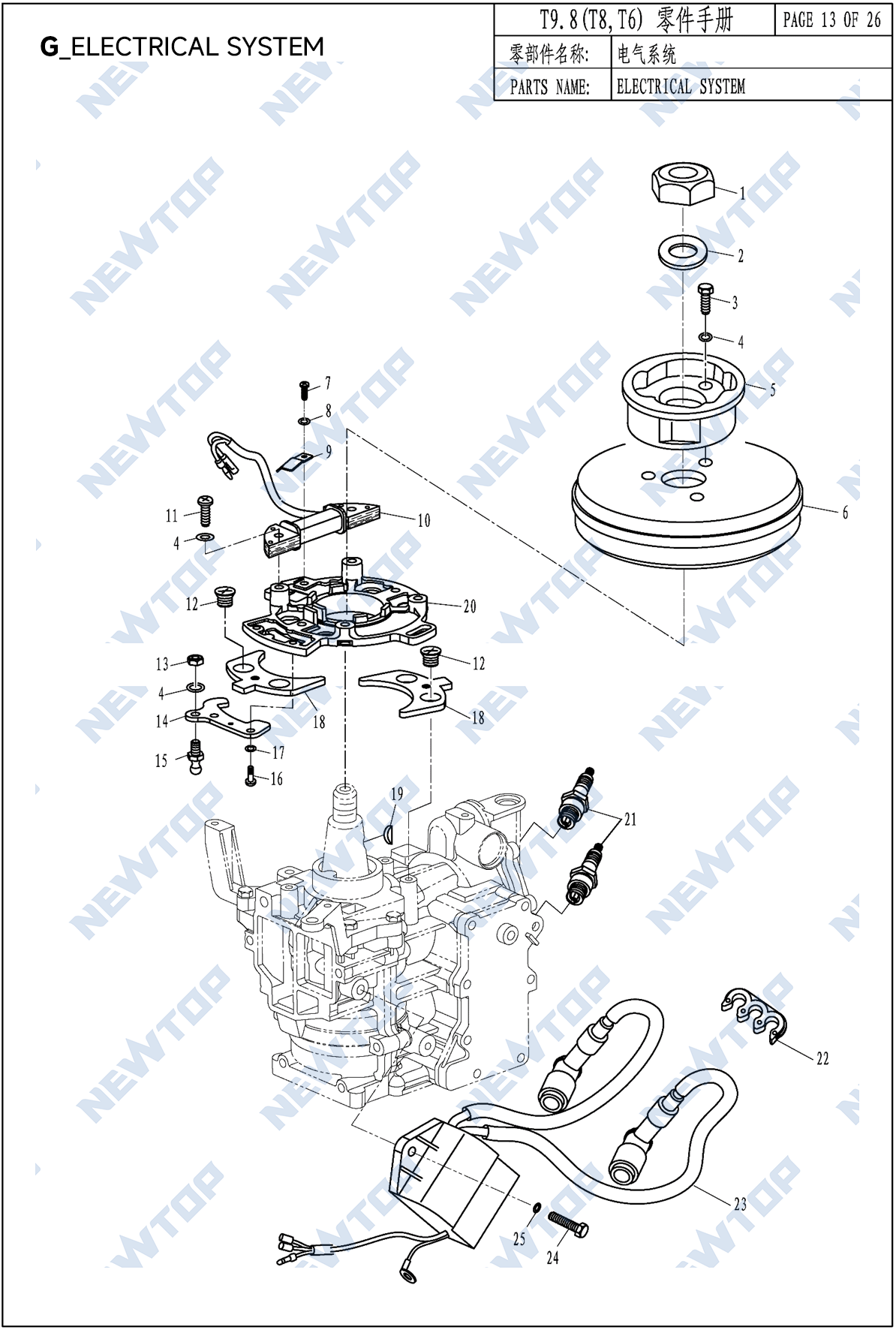

| G1 | NUT, FLY WHEEL |
| G2 | WASHER, FLY WHEEL |
| G3 | BOLT M6x12 |
| G4 | WASHER, SPRING 6 |
| G5 | PULLEY, STARTER |
| G6 | FLYWHEEL ASSY |
| G7 | SCREW M4x6 |
| G8 | WASHER, SPRING 4 |
| G9 | PLATE, WIRE |
| G10 | STATOR COIL ASSY |
| G11 | SCREW M6x25 |
| G12 | SCREW M6x12 |
| G13 | NUT M6 |
| G14 | LIMITED BLOCK |
| G15 | JOINT, CONNECTING ROD |
| G16 | SCREW M5x10 |
| G17 | WASHER, SPRING 5 |
| G18 | BLOCK, NYLON |
| G19 | WOODRUFF KEY, FLY WHEEL |
| G20 | BASE, STATOR COIL |
| G21 | SPARK PLUG BPR7HS |
| G22 | CLAMP, NYLON |
| G23 | IGNITION COIL ASSY |
| G24 | BOLT M6x20 |
| G25 | WASHER 6 |

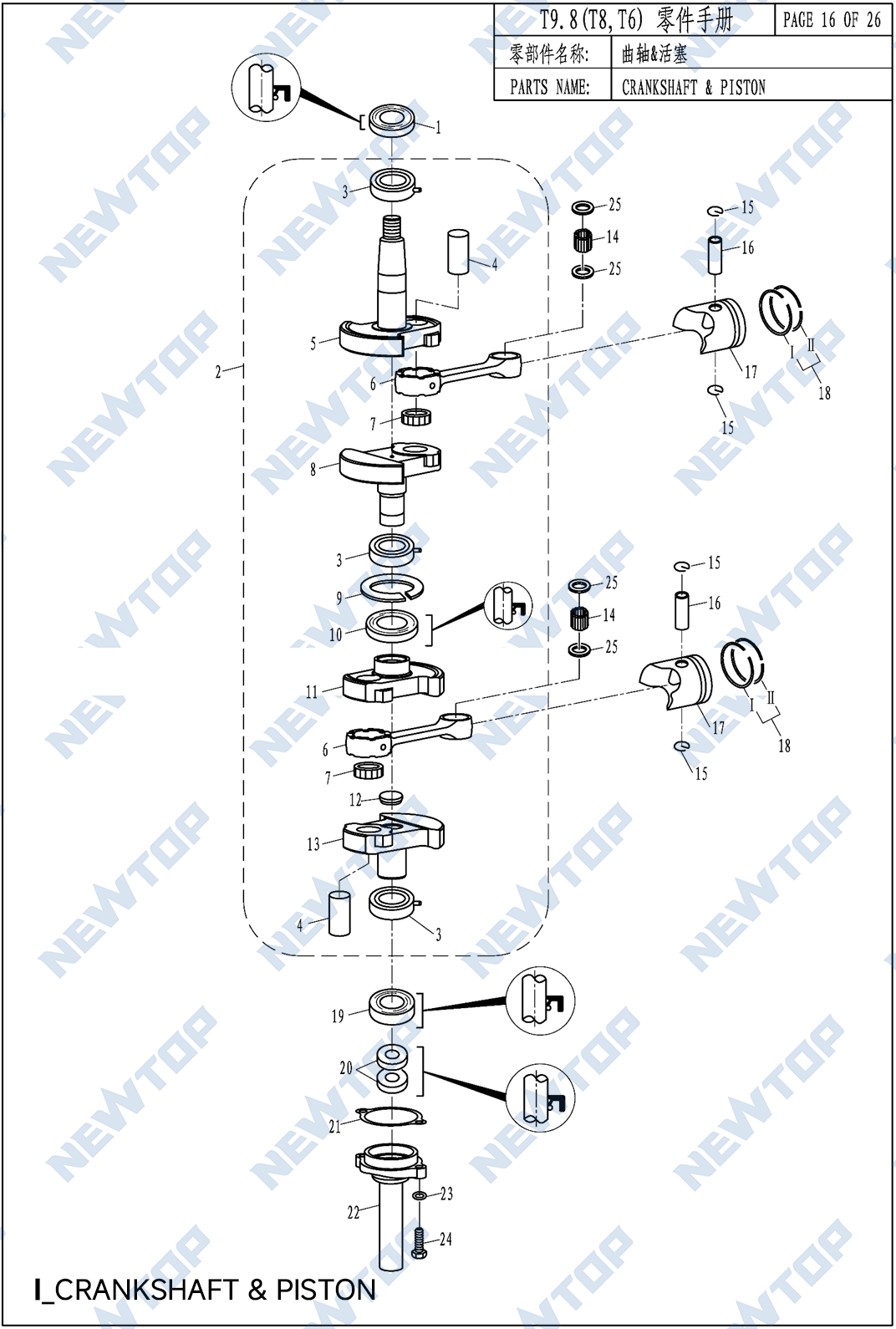

| I1 | OIL SEAL 20x35x7 |
| I2 | CRANKSHAFT ASSY |
| I3 | BEARING 6204 WITH PIN |
| I4 | PIN, CRANKSHAFT |
| I5 | BLOCK, SWING A |
| I6 | CONNECTING ROD |
| I7 | NEEDLE BEARING 17x23x13.8 |
| I8 | BLOCK, SWING B |
| I9 | FIXED WASHER, CRANKSHAFT |
| I10 | OIL SEAL 25x47x7.5 |
| I11 | BLOCK, SWING C |
| I12 | JAM, SWING BLOCK |
| I13 | BLOCK, SWING D |
| I14 | NEEDLE BEARING 2x13.8 |
| NEEDLE BEARING14x18x19 | |
| I15 | CIRCLIP 14 |
| I16 | PIN, PISTON |
| I17 | PISTON |
| I18 | PISTON RING ASSY |
| I19 | OIL SEAL 20x40x7 |
| I20 | OIL SEAL 12.1x28x5 |
| I21 | GASKET, OIL SEAL CASING |
| I22 | CASING, OIL SEAL |
| I23 | WASHER 6 |
| I24 | BOLT M6x20 |
| I25 | WASHER, PISTON |

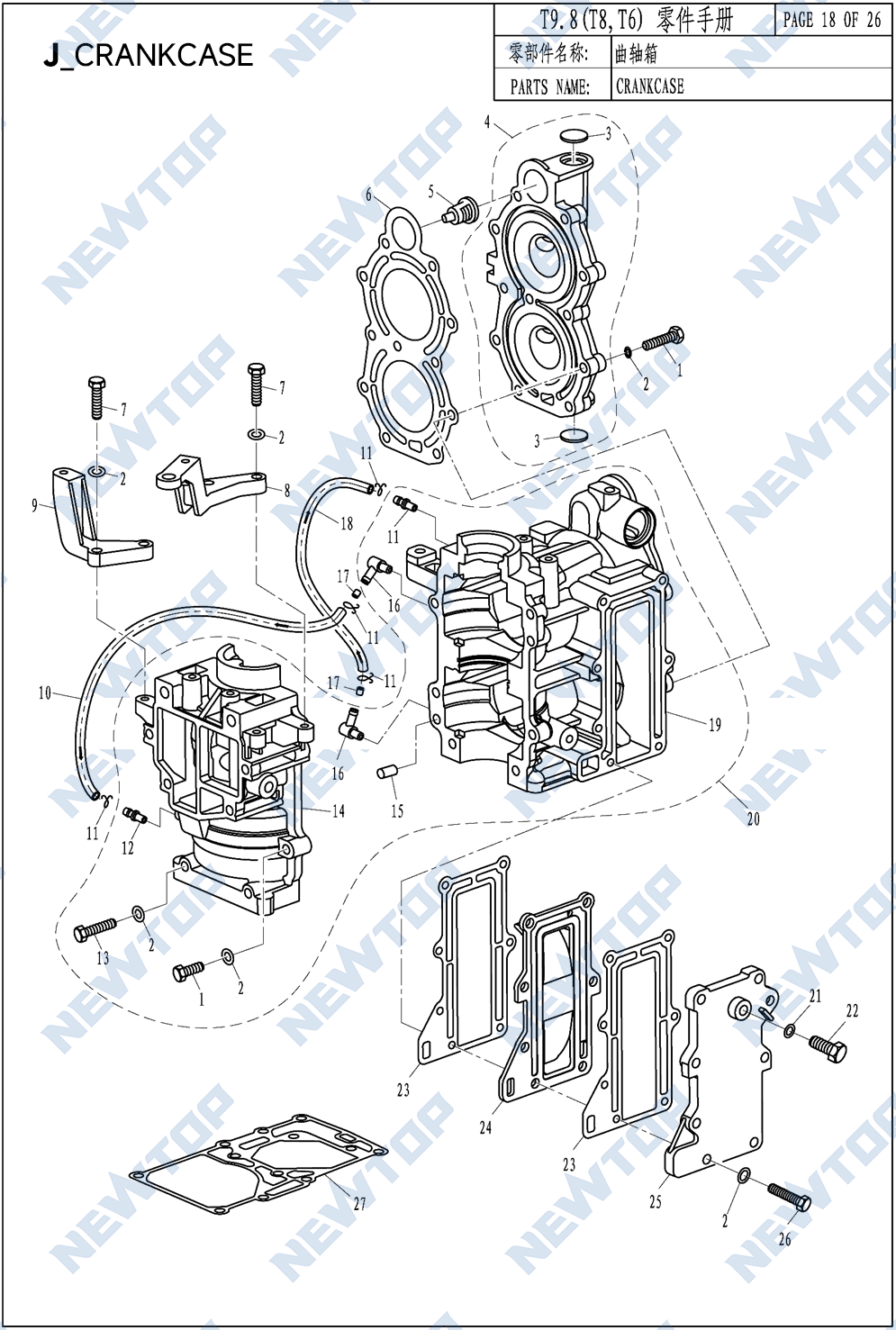

| J1 | BOLT M6x30 |
| J2 | WASHER 6 |
| J3 | PLUG, CYLINDER HEAD |
| J4 | CYLINDER COVER |
| J5 | THERMOSTAT |
| J6 | GASKET, CYLINDER HEAD |
| J7 | BOLT M6x20 |
| J8 | LEFT BRACKET, STARTER |
| J9 | RIGHT BRACKET, STARTER |
| J10 | HOSE 4x8x120 |
| J11 | CLIP SPRING |
| J12 | PIPE, JOINT |
| J13 | BOLT M6x50 |
| J14 | CRANKCASE |
| J15 | PIN 6x12 |
| J16 | PIPE, JOINT |
| J17 | CHECK VALVE ASSY |
| J18 | HOSE 4x8x230 |
| J19 | CYLINDER CASE |
| J20 | CRANKCASE ASSY |
| J21 | GASKET, SCREW PLUG |
| J22 | BOLT M8x12 |
| J23 | GASKET, EXHAUST COVER |
| J24 | INNER COVER, EXHAUST |
| J25 | OUTER COVER, EXHAUST |
| J26 | BOLT M6x25 |
| J27 | GASKET, ENGINE |
