로봇식 잔디 깍는 기계 NTRLM90-2

로봇식 잔디 깍는 기계 NTRLM90-2

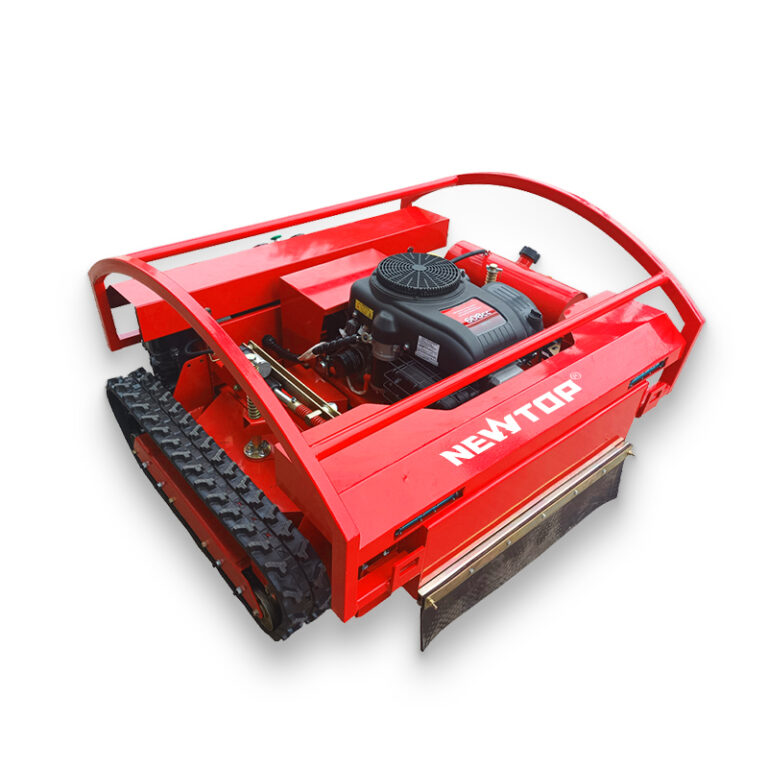

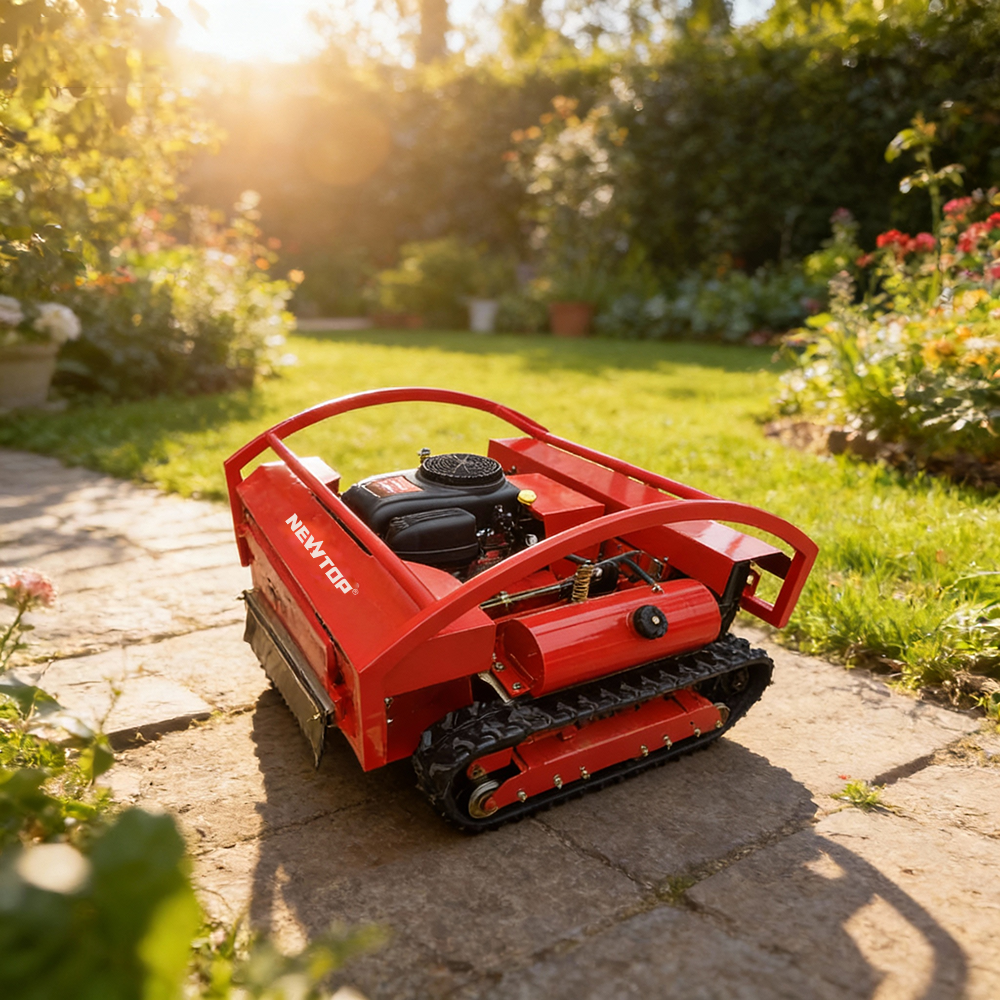

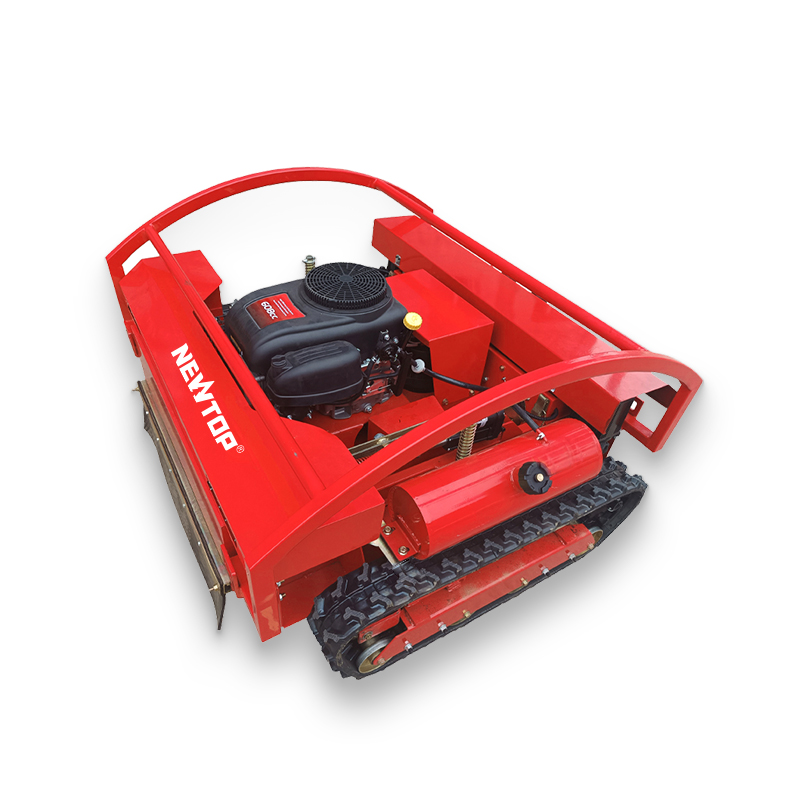

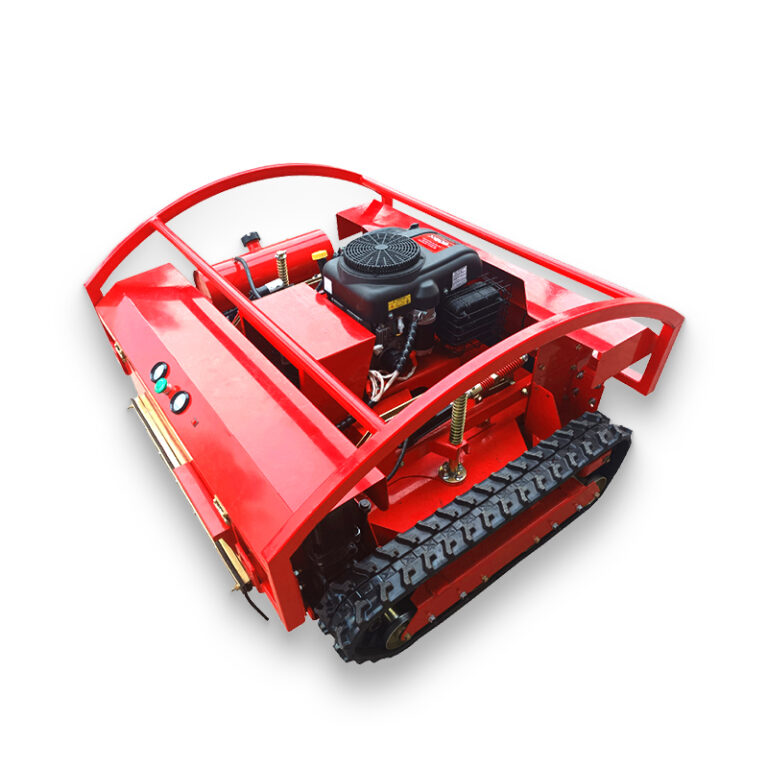

The NEWTOP Robotic Lawn Mower NTRLM90-2 is a high-capability crawler-type robotic lawn mower developed for fully intelligent, large-area unmanned mowing. By combining RTK-level positioning, intelligent sensing, and automatic start–stop control, it delivers powerful field coverage, precise navigation, and safe autonomous operation for demanding outdoor environments.

하이라이트
RTK multi-frequency satellite positioning with BeiDou support for high-accuracy autonomous navigation
Intelligent route planning with automatic motion execution and full driving control
Multi-sensor real-time perception combined with camera-based obstacle avoidance
4G or data radio remote control with automatic start and stop functionality
Multi-machine cluster operation supported through dedicated base station setup

제품특징

The NEWTOP NTRLM90-2 robotic lawn mower operates on a multi-frequency satellite positioning system with RTK technology, supporting highly accurate navigation and stable path tracking during unmanned mowing. With centimeter-level positioning performance, the robotic lawn mower maintains consistent working routes and reliable area coverage across wide open spaces.

Built around a fully intelligent control architecture, the system supports automatic route planning, decision execution, and complete motion control including forward driving, 선회, 유턴, 가속, 감속, and reverse movement. With the additional support of automatic start and stop, the NTRLM90-2 enables a higher level of autonomous operation under remote or program-based control.

For real-time safety awareness, the machine integrates multiple protection sensors, 속도 포함, 오일 레벨, travel status, 및 온도 모니터링, working together with an ultra-HD camera for automatic obstacle detection and avoidance. This multi-layer perception system enhances operational safety and response efficiency in complex outdoor working conditions.

Designed for high-load and long-duration mowing, the NTRLM90-2 adopts a crawler-type driving structure with self-generating and charging capability, delivering strong traction, stable climbing performance, and uninterrupted power supply. 4G 네트워크 또는 무선 데이터 전송 및 최대 지원 200 m remote control distance, it also enables multi-machine cluster operation through independent base station deployment, making it a heavy-duty NEWTOP robotic lawn mower solution for large-scale, intelligent mowing projects.

연락하세요

제품 사양

엔진 제조사 브랜드론신
엔진 모델LC608CC
힘 (마력/rpm)20마력/3600rpm
배수량 (참조)608참조
운전 유형Crawler-type
절단폭 (인치/mm)900mm
절단 높이, 분 - 최대 (mm)30~150mm
자체 생성&충전 중
원격 제어 거리200중
자동 ON/OFF
도구 리프팅
가속
감속
앞으로
뒤로
선회
유턴
