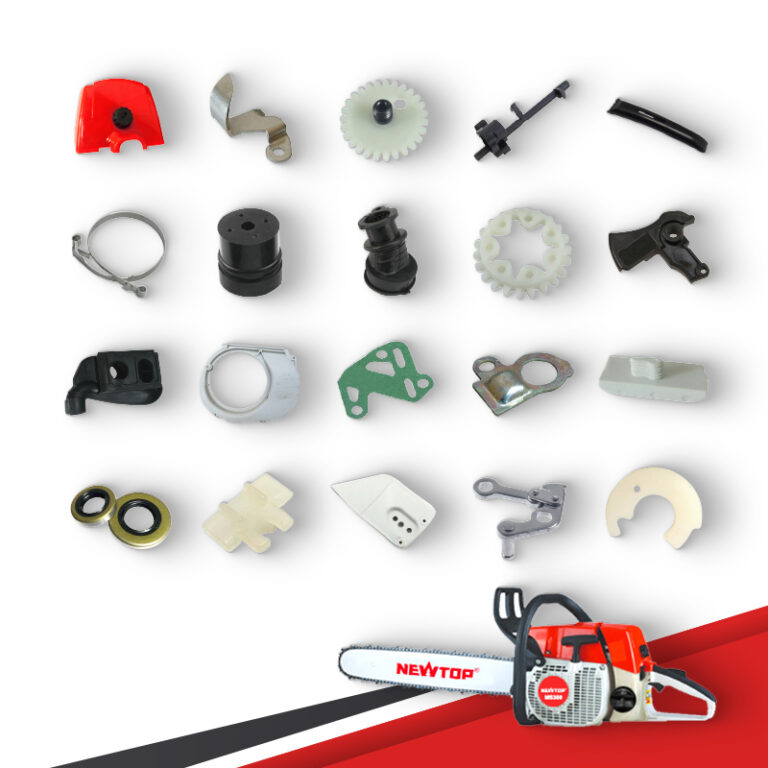

The NEWTOP NT381 spare parts set is built for professionals who require power, endurance, and consistent performance in demanding cutting conditions. NT381 refers to a chainsaw parts model equivalent to the MS380 parts specification and is designed for compatibility with MS380 type chainsaws. Engine components such as the crankshaft and crankcase are made of 20CrMoTi alloy steel and undergo precision CNC processing and advanced heat treatment to enhance mechanical strength and vibration resistance.
The high strength cylinder ensures efficient cooling and stable operation, while the premium piston assembly delivers optimal compression and responsive engine performance. The carburetor is built to Walbro type specifications, ensuring smooth fuel intake and reliable ignition to maintain high efficiency during extended operation.
Complemented by a German alloy saw chain and a reinforced guide bar, this set supports clean and sharp cutting results with reduced maintenance requirements. The NEWTOP NT381 Chainsaw Parts Set is a cost effective and high quality replacement solution, trusted by chainsaw manufacturers, garden machinery distributors, and outdoor power equipment dealers seeking dependable aftermarket components.

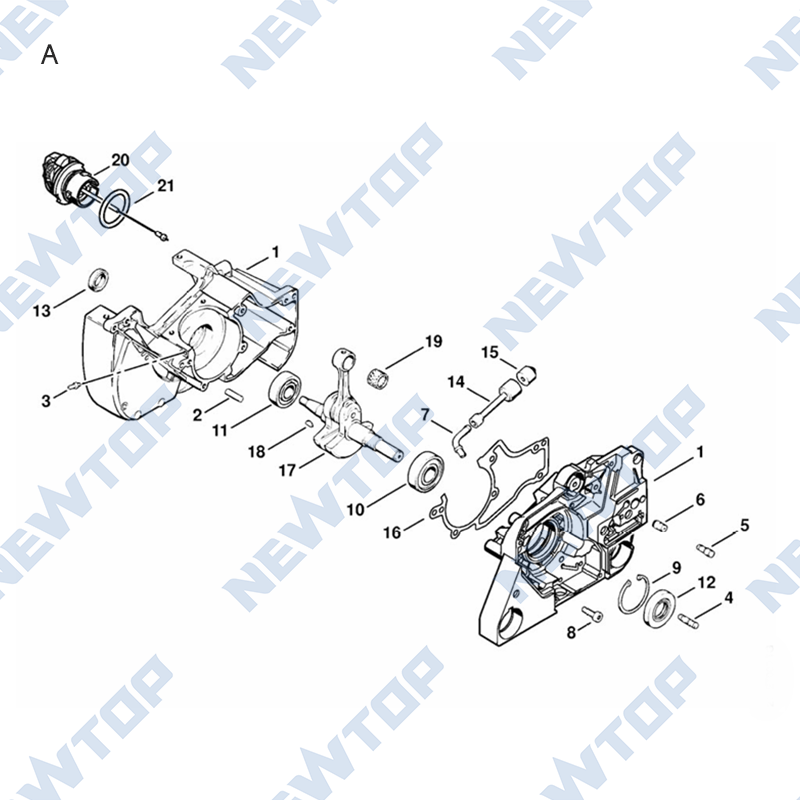

| A1 | Crankcase for 2 - 11 | H17 | अँगूठी |
|---|---|---|---|
| A2 | Cylindrical pin 5x18 | H18 | Throttle trigger |
| A3 | Connector | H19 | Trigger interlock |

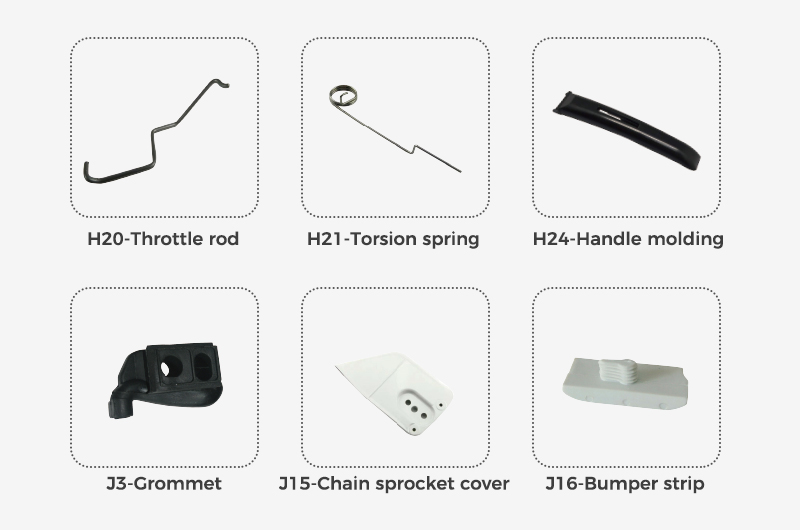

| A4 | नत्थी करना | H20 | Throttle rod |
| A5 | नत्थी करना | H21 | Torsion spring |
| A6 | वाल्व | H22 | Cylindrical pin 5x24 |
| A7 | Connector | H23 | Pan head self-tapping screw IS-P4x19 |
| A8 | Spline screw IS-M5x18 | H24 | Handle molding |
| A9 | Circlip 40x1.75 | H25 | वॉशर |

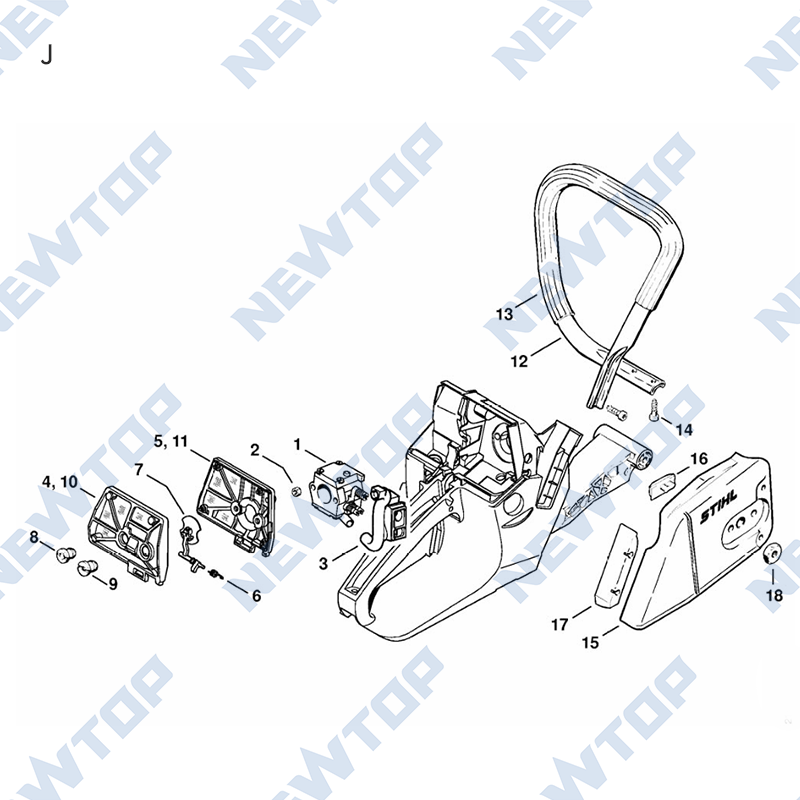

| ए10 | Grooved ball bearing 6203 | जे1 | Carburetor Bing 48A101C |
| ए11 | Grooved ball bearing 6202 | जे1 | Carburetor Bing 48A125A available in Brazil only |

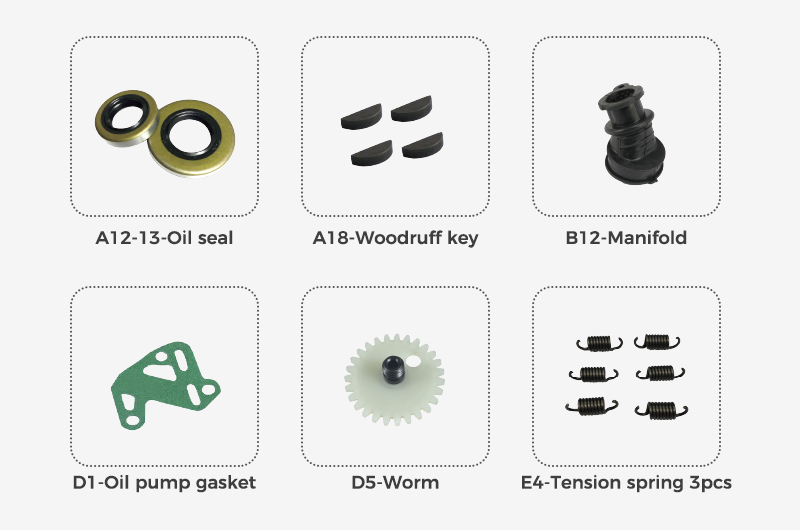

| ए12 | Oil seal 17x39.9x5 | जे2 | Hexagon nut M5 |
| ए 13 | Oil seal 13x22x5 | जे 3 | Grommet |
| ए 14 | नली | Air filter, wire mesh for 4 - 9 | |
| ए15 | Pickup body | जे4 | Air filter, wire mesh |
| A16 | पाल बांधने की रस्सी | जे5 | Air filter, wire mesh |
| A17 | Crankshaft for 18 | जे6 | Torsion spring |
| A18 | Woodruff key 2x3.7 | जे7 | Choke shutter |
| A19 | Needle cage 12x16x13 | जे8 | Slotted nut |
| A20 | Filler cap for 21 | जे9 | Slotted nut |
| A21 | Oring 23x3 | Air filter, fleece AUS, CDN for 6 - 11 | |
| Set of gaskets for 12, 13, 16 | जे10 | Air filter, fleece AUS, CDN | |

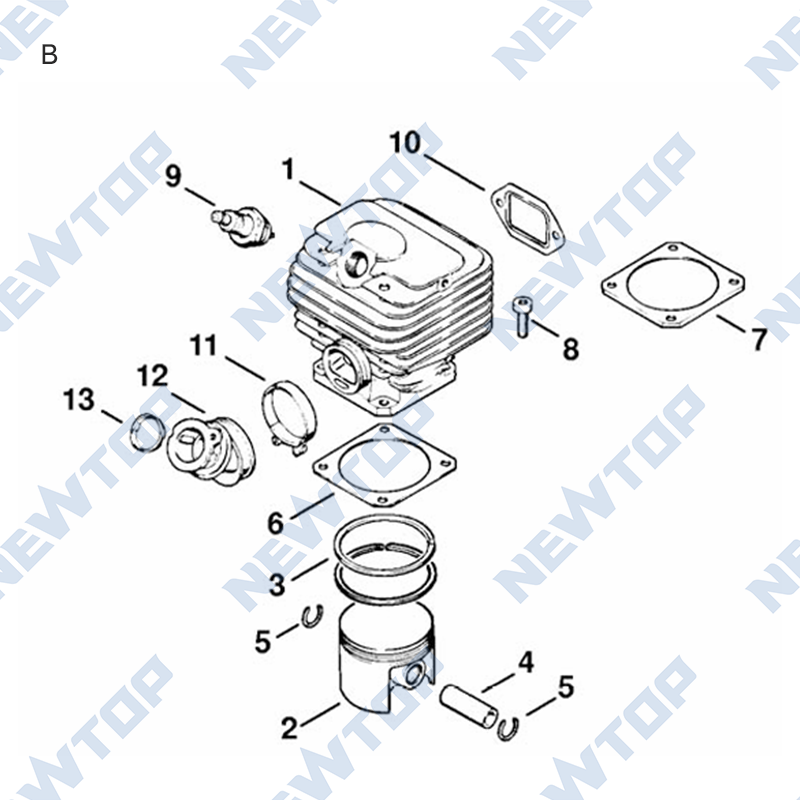

| B1 | Cylinder with piston Dia. 52mm for 2 - 5 | जे11 | Air filter, fleece AUS, CDN |
| B2 | Piston Dia. 52mm for 3 - 5 | जे12 | Handlebar for 13 |
| B3 | Piston ring Dia. 52x1.5mm | जे13 | Handle hose 450mm / 17 13/16" (D) |
| B4 | Piston pin | Handle hose Dia. 19 mm x 5m / 3/4x197" (बी) | |
| B5 | Snap ring 12x1 | J14 | Pan head self-tapping screw IS-P6x19 |
| B6 | Cylinder gasket | J15 | Chain sprocket cover for 16, 17 |
| B7 | Cylinder gasket 1mm low compression | J16 | Bumper strip |
| B8 | Spline screw IS-M5x18 | J17 | Guard |
| B9 | Spark plug NGK BPMR7A | J18 | Collar nut M8 |

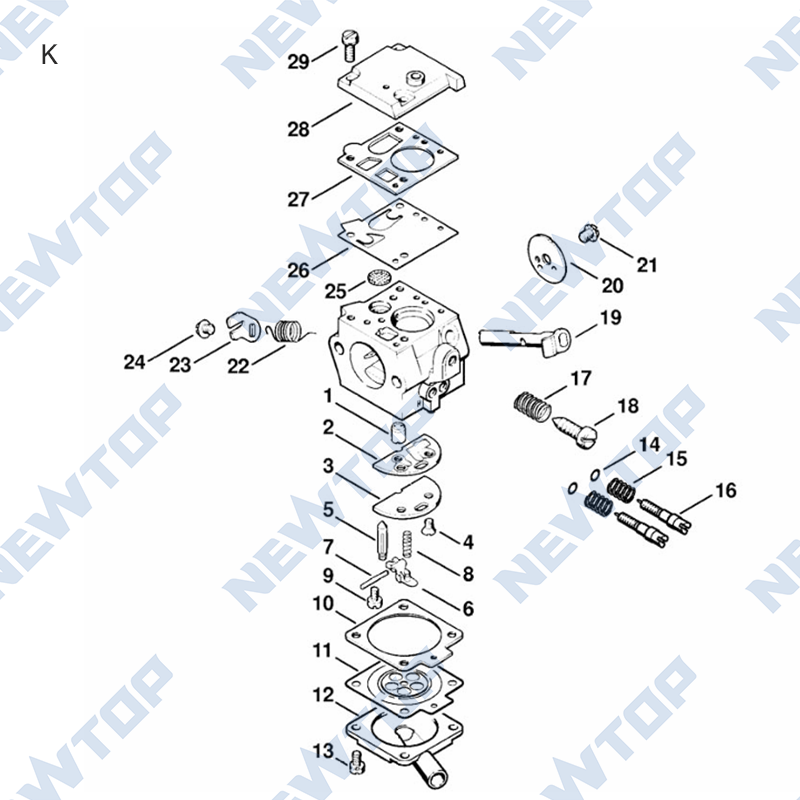

| B9 | Spark plug Bosch WSR 6 एफ | K1 | Valve jet |
| बी10 | Exhaust gasket | K2 | पाल बांधने की रस्सी |
| बी11 | Hose clip Dia. 34x7 | K3 | Plate |
| बी 12 | विविध | K4 | Countersunk screw |
| बी13 | आस्तीन | K5 | Inlet needle |
| Set of gaskets | K6 | Inlet control lever | |

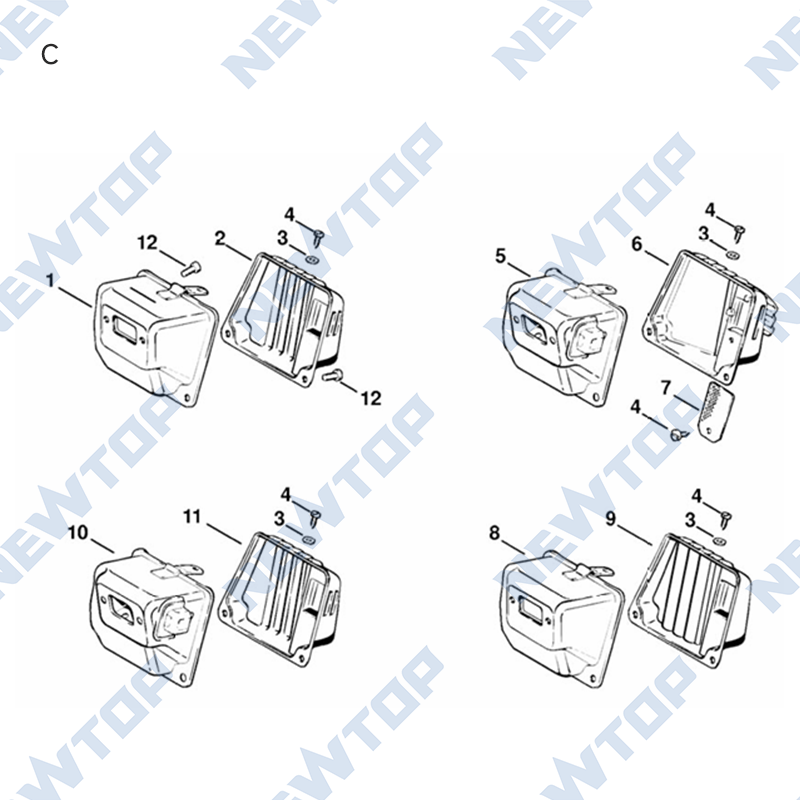

| C1 | Inlet casing Standard | K7 | Spindle |
| C2 | Exhaust casing Standard | K8 | वसंत |
| C3 | Shake-proof washer 4.3 | K9 | पेंच |
| C4 | Self-tapping screw 4.2x9.5 | K10 | पाल बांधने की रस्सी |
| Muffler kit AUS, CDN for 3 - 7 | K11 | Metering diaphragm | |
| C5 | Inlet casing AUS, CDN | K12 | End cover |
| C6 | Exhaust casing AUS, CDN for 4, 7 | K13 | Pan head screw |
| C7 | Screen AUS, CDN | K14 | Sealing ring |
| C8 | गुलबंद (बी) available in Brazil only for 9 | K15 | वसंत |
| C9 | Exhaust casing (बी) available in Brazil only | K16 | High speed adjustment screw |
| Muffler kit available in Brazil only for 3, 4, 10, 11 | K17 | वसंत | |
| C10 | Inlet casing available in Brazil only | K18 | Idle speed adjustment screw |
| C11 | Exhaust casing available in Brazil only | K19 | Throttle shaft with lever |
| C12 | Spline screw IS-M5x18 | K20 | Throttle shutter |

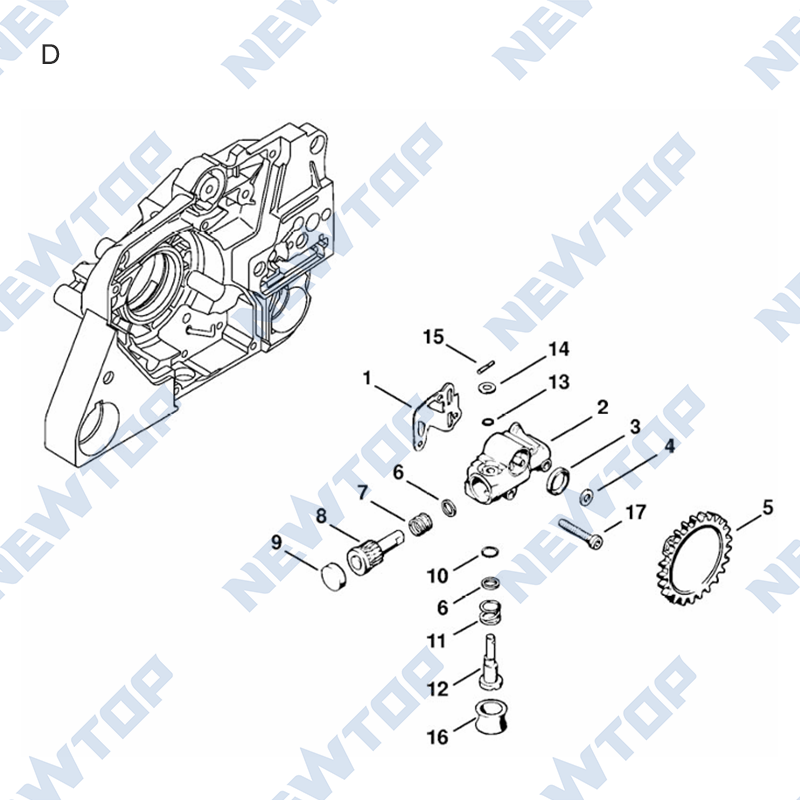

| डी1 | पाल बांधने की रस्सी | K21 | पेंच |
| Oil pump for 2 - 15 | K22 | Torsion spring | |
| डी2 | Pump housing for 3 | K23 | पट्टा |
| डी3 | Sealing ring 12x16x3 | K24 | Pan head screw |
| डी4 | वॉशर | K25 | Strainer |
| डी5 | कीड़ा | K26 | Pump diaphragm |
| D6 | वॉशर | K27 | पाल बांधने की रस्सी |
| D7 | Compression spring | K28 | End cover |
| D8 | Pump piston | K29 | Pan head screw |
| D9 | प्लग | Set of carburetor parts for 2, 10, 11, 26, 27 | |
| D10 | O-ring 7x1.5 | Set of carburetor parts for 2, 5, 6, 8, 10, 11, 25 - 27 | |

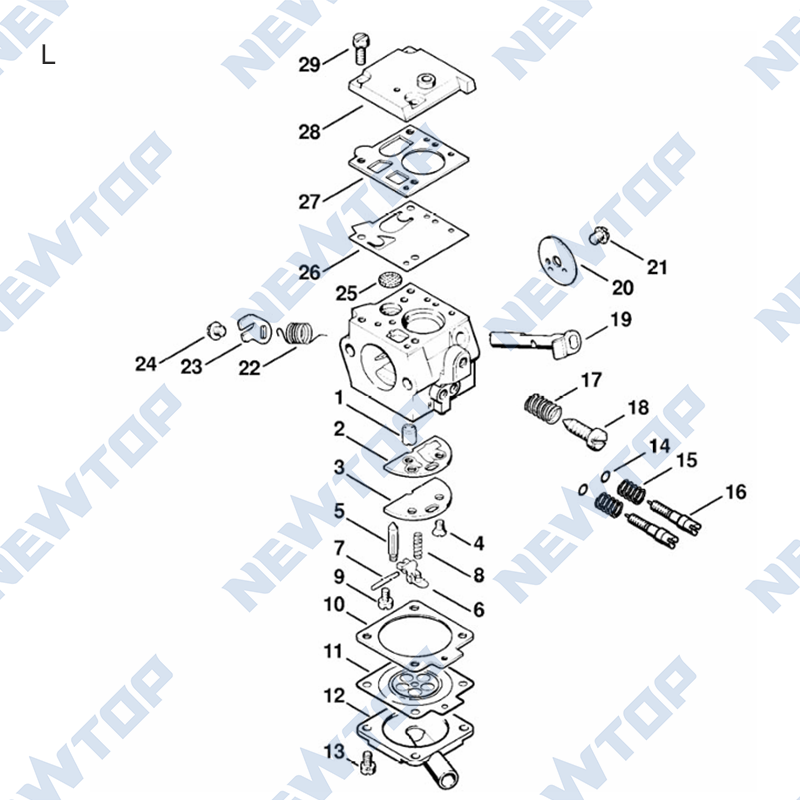

| D11 | Helical spring | L1 | Valve jet |
| D12 | Control bolt | L2 | पाल बांधने की रस्सी |
| D13 | O-ring 5x1.25 | L3 | Plate available in Brazil only |
| D14 | Cup spring 10 | L4 | Countersunk screw |
| D15 | नत्थी करना | L5 | Inlet needle |
| D16 | Rubber ring | L6 | Inlet control lever |
| D17 | Spline screw IS-M4x25 | L7 | Spindle |
| Set of gaskets for 1 | L8 | वसंत | |

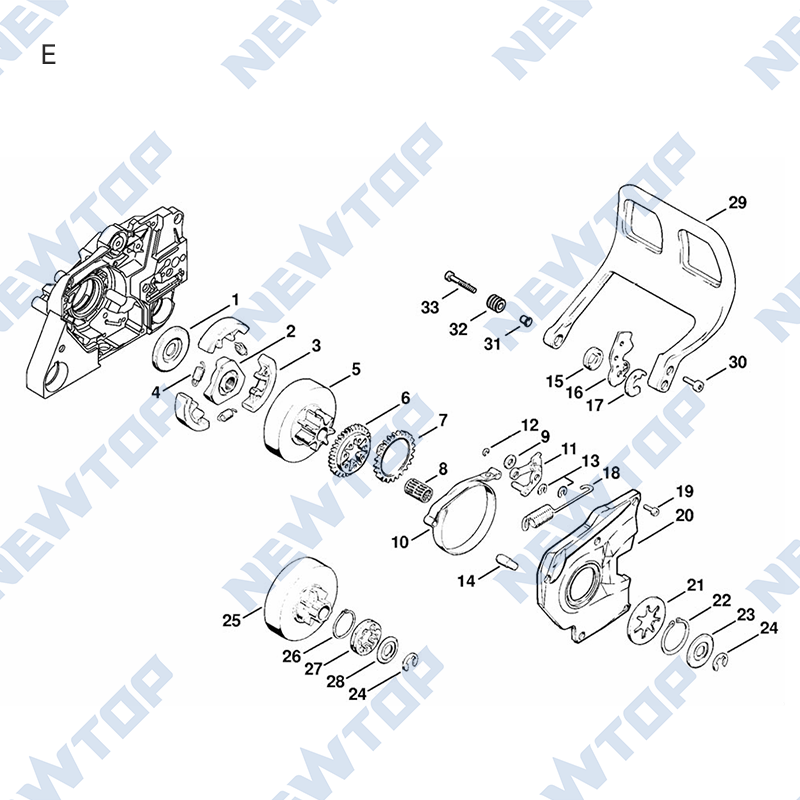

| E21 | वॉशर | L9 | पेंच |
| E22 | Circlip 36x1.2 | L10 | पाल बांधने की रस्सी |
| E23 | वॉशर | L11 | Metering diaphragm |
| E24 | E-clip 10x1.5 | L12 | End cover |
| Rim sprocket kit 3/8" 7T for 24 - 28 | L13 | Pan head screw | |
| E26 | Clutch drum (D) | L14 | Sealing ring |
| E27 | Circlip 25x1.2 | L15 | वसंत |
| E28 | Rim sprocket 3/8" 7T | L16 | High speed adjustment screw |
| E29 | वॉशर | L17 | वसंत |
| E30 | Hand guard | L18 | Idle speed adjustment screw |
| E31 | Spline screw IS-M5x16 | L19 | Throttle shaft with lever |
| E32 | झाड़ी | L20 | Throttle shutter |
| E33 | झाड़ी | L21 | पेंच |

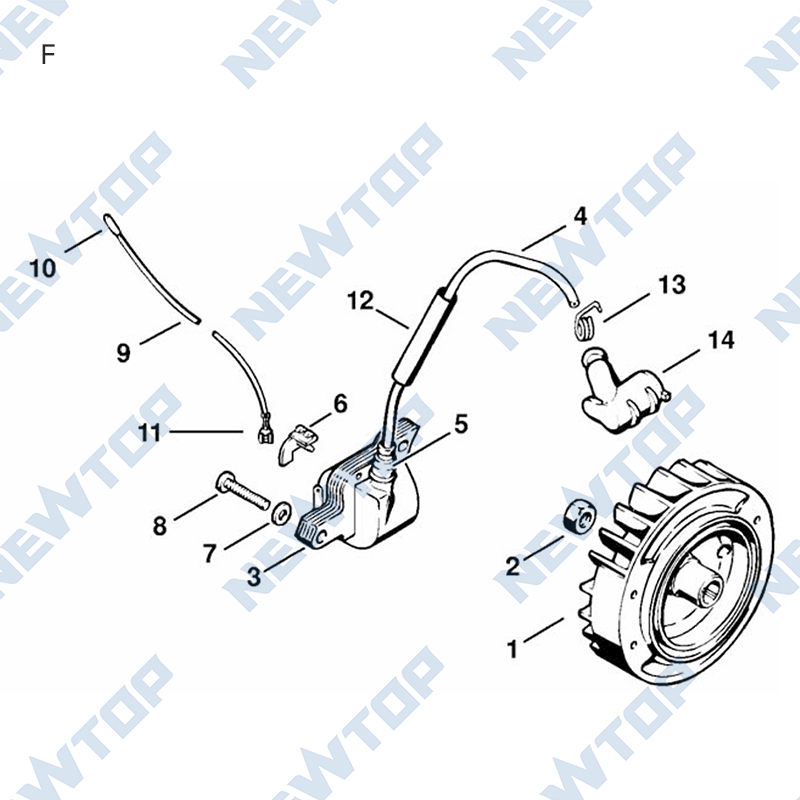

| F1 | चक्का | L22 | Torsion spring |
| F2 | Hexagon nut M8x1 | L23 | पट्टा |
| F3 | Ignition module for 4 - 6 | L24 | Pan head screw |
| F4 | Ignition lead 140mm | L25 | Strainer |
| Ignition lead 1m (ए,बी) | L26 | Pump diaphragm | |
| Ignition lead 10m (ए,बी) | L27 | पाल बांधने की रस्सी | |
| F5 | Grommet | L28 | End cover |
| F6 | Lead retainer | L29 | Pan head screw |
| F7 | वॉशर 5.3 | Set of carburetor parts for 2, 10, 11, 26, 27 | |
| F8 | Spline screw IS-M5x25 | Set of carburetor parts for 2, 5, 6, 8, 10, 11, 25 - 27 | |

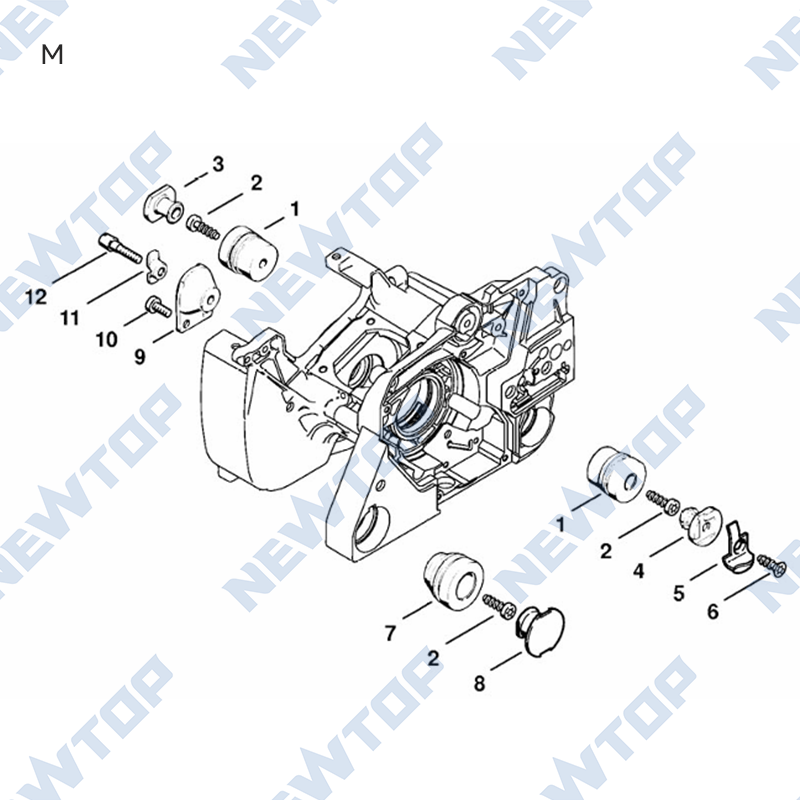

| F9 | Short circuit wire 330mm / 13" for 10, 11 | M1 | Annular buffer |
| F10 | Contact sleeve | M2 | Pan head self-tapping screw IS-P6x19 |
| F11 | Terminal socket 4.8-1/0.8 | M3 | प्लग |
| Lead 10m / 33' (ए,बी) | M4 | प्लग | |
| F12 | नली | M5 | Chain catcher for 6 |
| F12 | Hose available in Brazil only | M6 | Self-tapping screw P6.3x18 |
| F13 | Torsion spring | M7 | Annular buffer |
| F14 | Spark plug boot | M8 | प्लग |

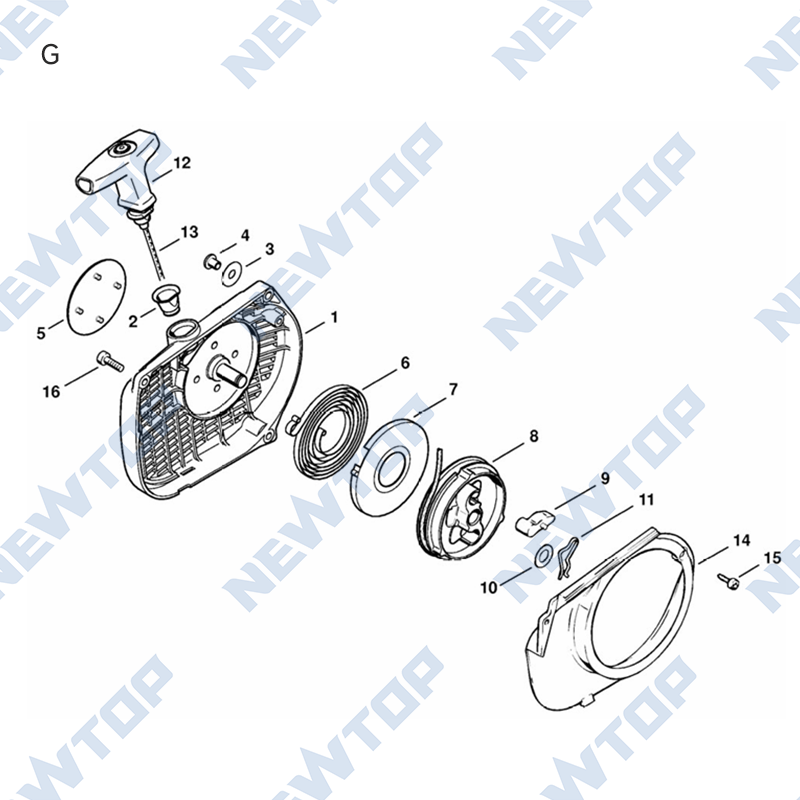

| जी1 | Fan housing for 2 - 5 | M9 | Annular buffer |
| जी2 | झाड़ी | M9 | Annular buffer PRC |
| जी3 | वॉशर | M10 | Spline screw IS-M5x12 |
| जी -4 | Hollow rivet 6.5x0.5x6.8 | M11 | Retainer |
| जी5 | Model plate MS 380 | M12 | Pan head screw |

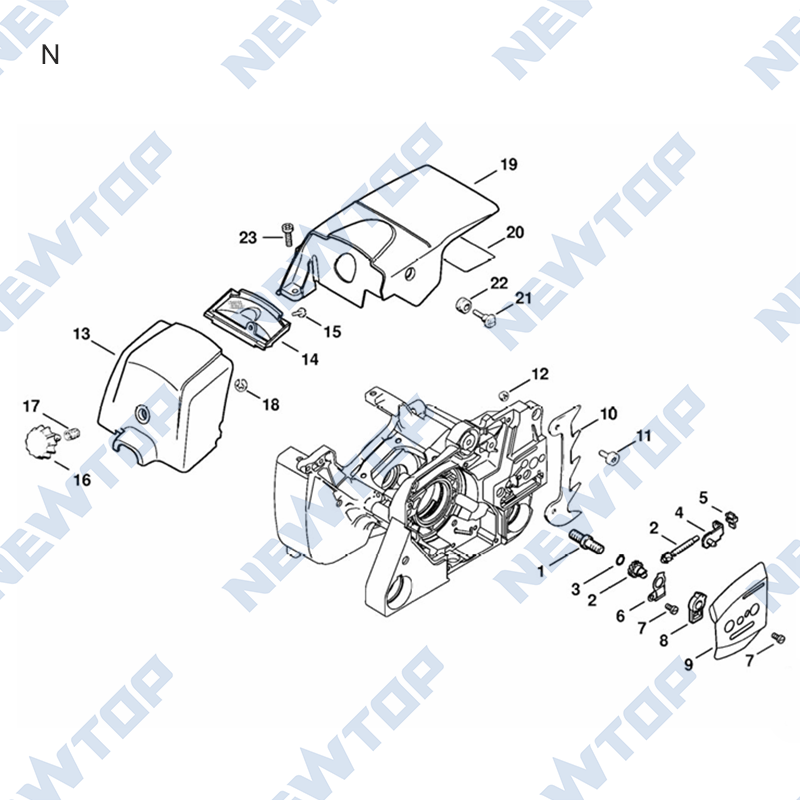

| जी6 | Rewind spring for 7 | N4 | Tensioner slide |
| जी7 | Spring housing | N5 | Thrust pad |
| जी -8 | Rope rotor | N6 | Cover plate |
| जी9 | फ़्यूज़ | N7 | Pan head screw M4x8 |
| जी10 | वॉशर | N8 | सहायता |
| G11 | वसंत | N9 | Inner side plate |
| G12 | Starter grip ElastoStart for 13 | N10 | Bumper spike |
| G13 | Starter rope Dia. 4.5मिमी | N11 | Spline screw IS-M5x12 |
| Starter rope Dia. 4.5मिमी / 28 pieces (बी) | N12 | Lock nut M5 | |

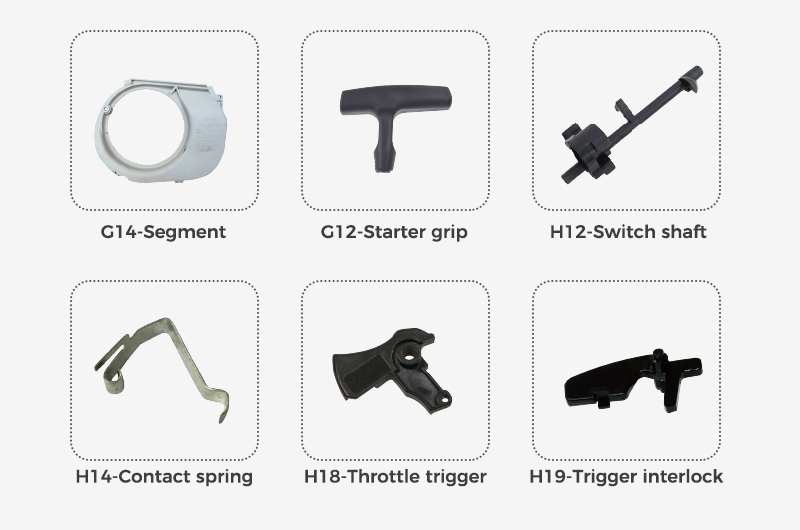

| G14 | Segment | N13 | Carburetor box cover for 14 - 18 |
| G15 | Spline screw IS-M4x12 | N14 | Prefilter |
| G16 | Spline screw IS-M5x18 | N15 | Pan head self-tapping screw IS-P4x19 |

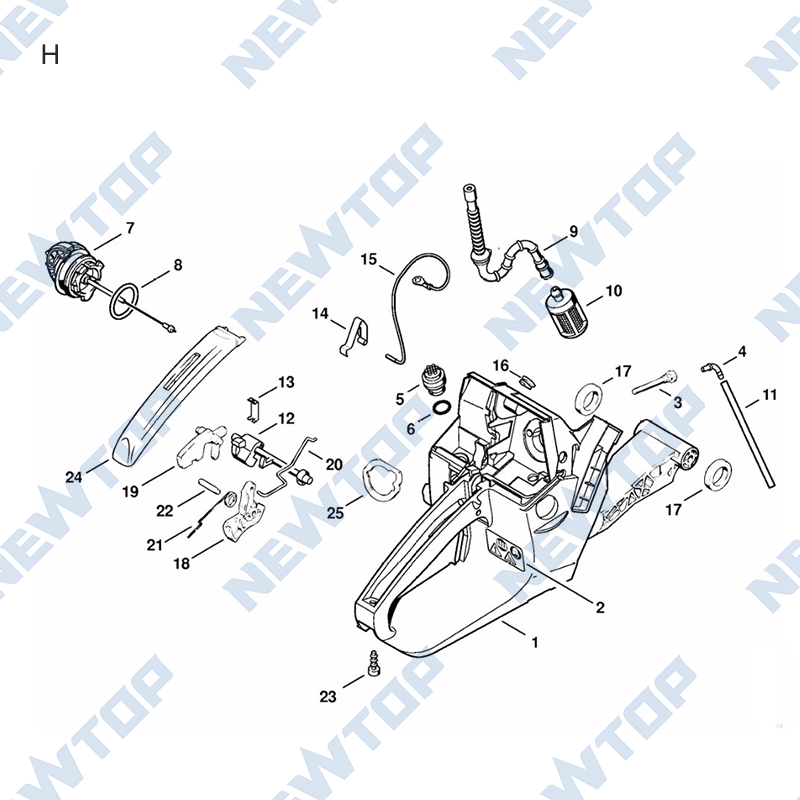

| एच 1 | Tank housing for 2 - 9 | N16 | Twist lock |
| एच 2 | Warning pictogram MS | N17 | Compression spring |
| H3 | Collar screw | N18 | E-clip 5 |
| H4 | Elbow connector | N19 | Shroud for 20 |
| H5 | Tank vent for 6 | N20 | Reflector foil |
| H6 | O-ring 10x2.1 (D) | N21 | Collar screw |
| H7 | Filler cap for 8 | N22 | अँगूठी |
| H8 | Oring 25x3.5 | N23 | Spline screw IS-M5x18 |

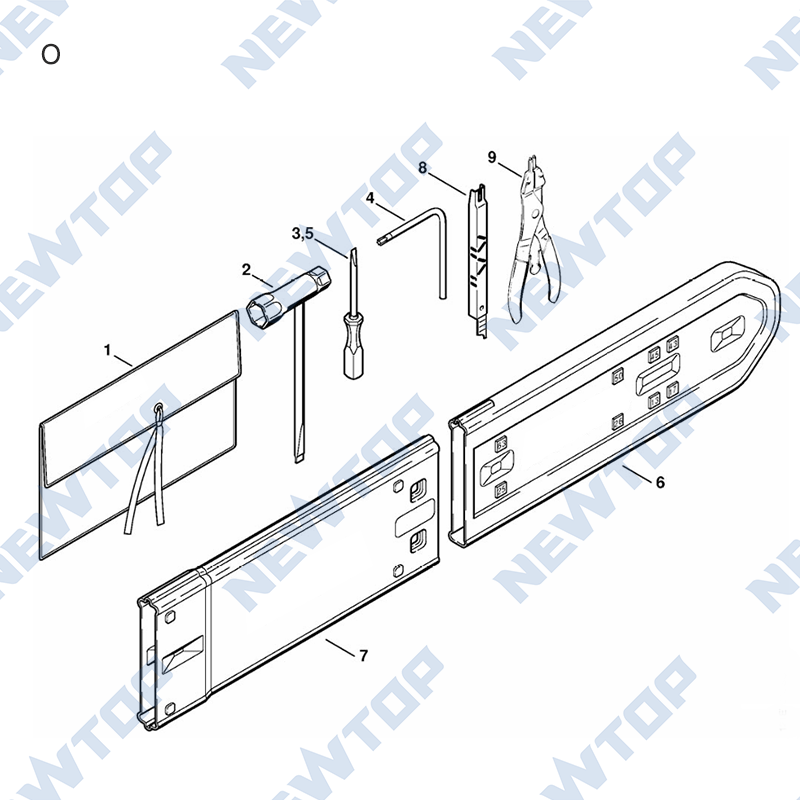

| H9 | नली | O1 | Tool roll |
| H10 | Pickup body | O2 | Combination wrench |
| H11 | Hose 3.1x5.7x102mm (D) | O3 | Screwdriver |
| Hose 3.1x5.7x1000mm (ए,बी) | O4 | Screwdriver T27x120x70 | |
| Tubo flexible 3,1x5,7x10 m / 33' (ए,बी) | O5 | Screwdriver available in Brazil only | |
| H12 | Switch shaft | O6 | Chain scabbard |
| H13 | सहायता | O7 | Chain scabbard extension up to 63 cm (बी) |
| H14 | Contact spring | O8 | Filing gauge (बी) |
| H15 | Ground wire 205mm / 8 1/16" | O9 | Circlip pliers (बी) |
| H16 | Grommet |
