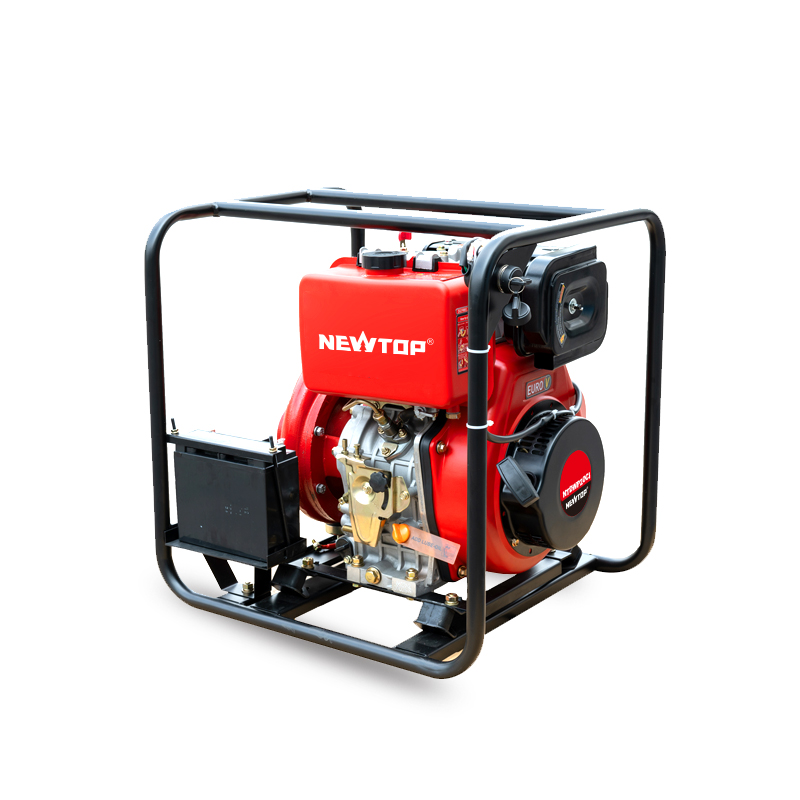

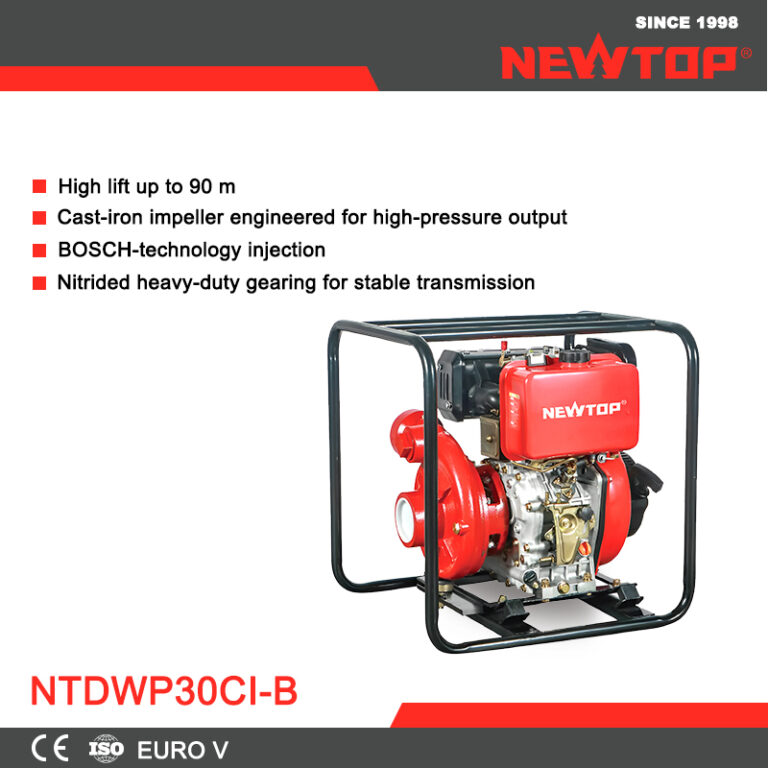

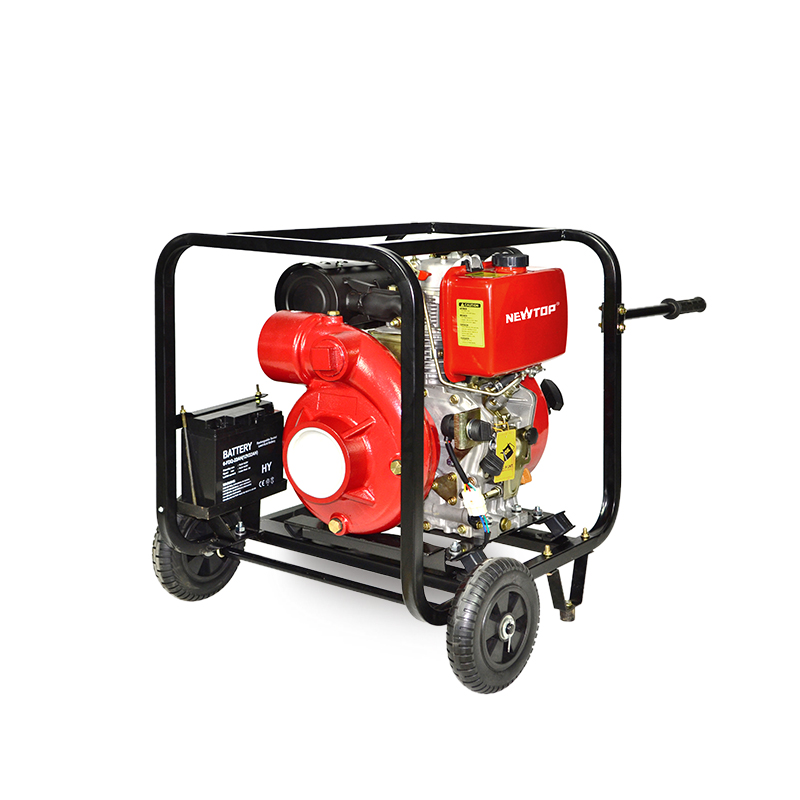

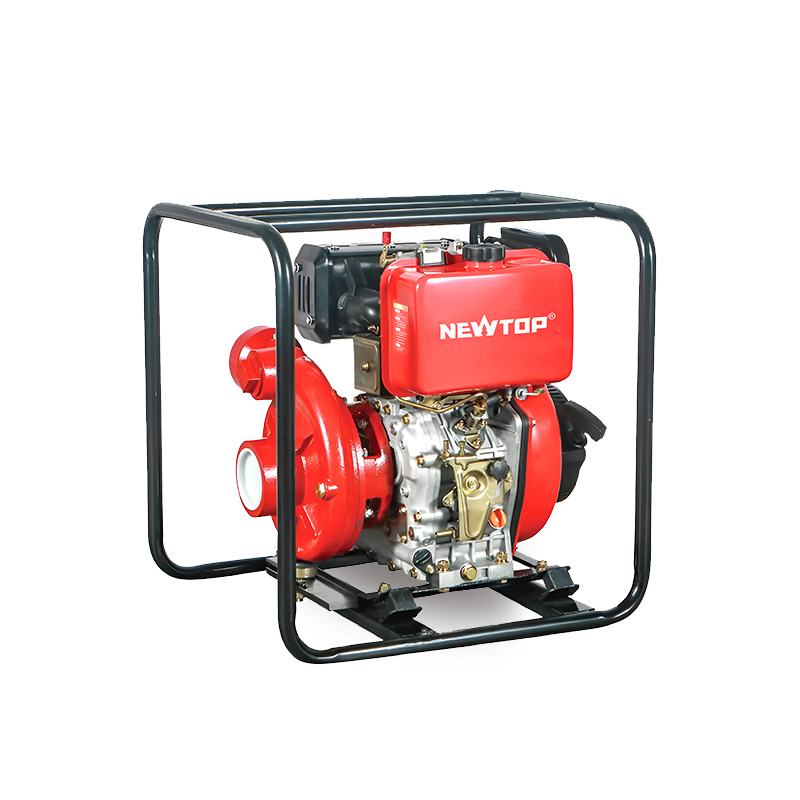

The NEWTOP NTDWP30CI-B is engineered for users who need both strong discharge volume and higher lift. With a larger displacement diesel engine and a precision cast-iron pump, it excels in demanding irrigation and emergency applications.
The NEWTOP NTDWP30CI-B features a premium cast-iron centrifugal pump that delivers reliable pressure for large-area irrigation and utility operations. The diesel engine’s strengthened internal components enhance durability and improve operation stability under high loads.

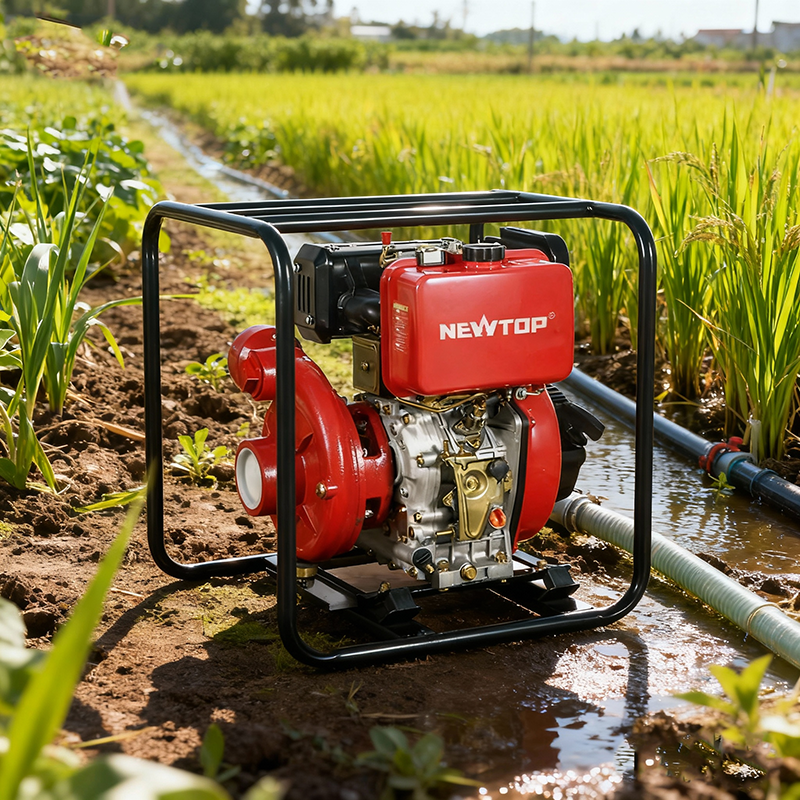

Its structural frame dampens vibration, supporting smoother operation even during extended high-pressure pumping sessions. The model is well suited for irrigation networks, emergency drainage, rural water-supply work and heavy-duty field tasks requiring higher lift and increased performance.
| Inlet/Outlet Dia.(in/mm) | 3"(80) |
| Lift H.max(m) | 90 |
| Flow Q.max(m³/h) | 44 |
| Suction H.max(m) | 6 |
| Engine Model | NTDE192FA |
| Broke x Stroke(mm) | 92x75 |
| Displacement(cc) | 499 |
| Rated Rotation Speed(rpm) | 3600 |
| Rated power(kW) | 8.6 |
| Loading Quantity(20"/40") | 173/318 |
