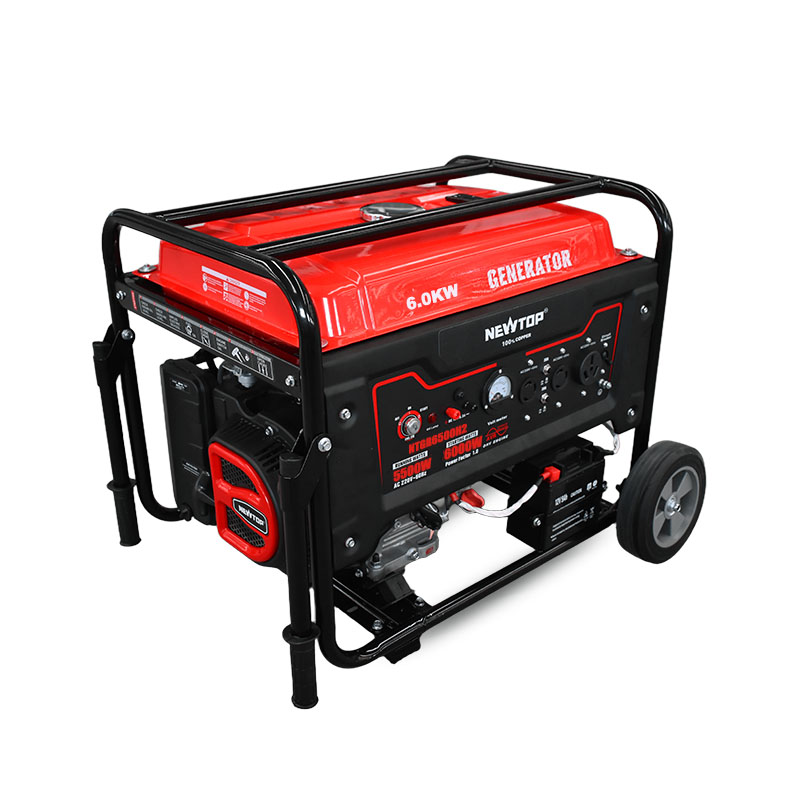

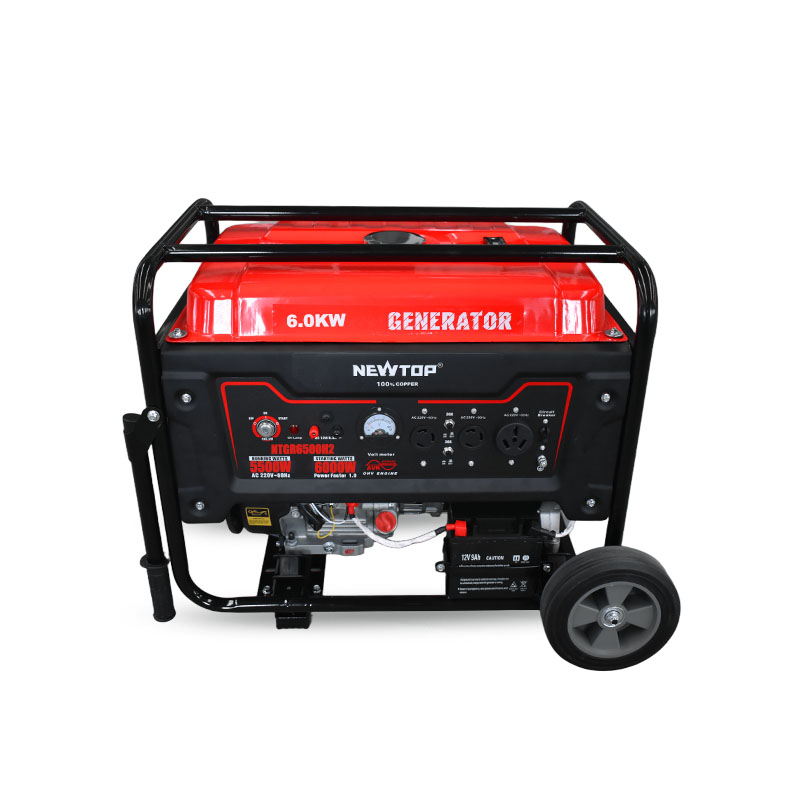

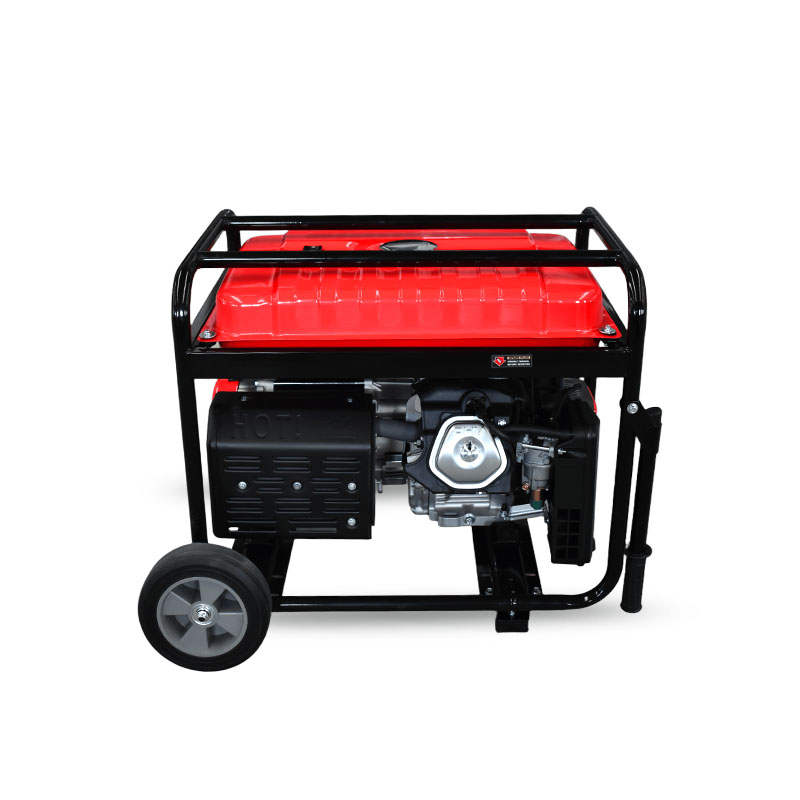

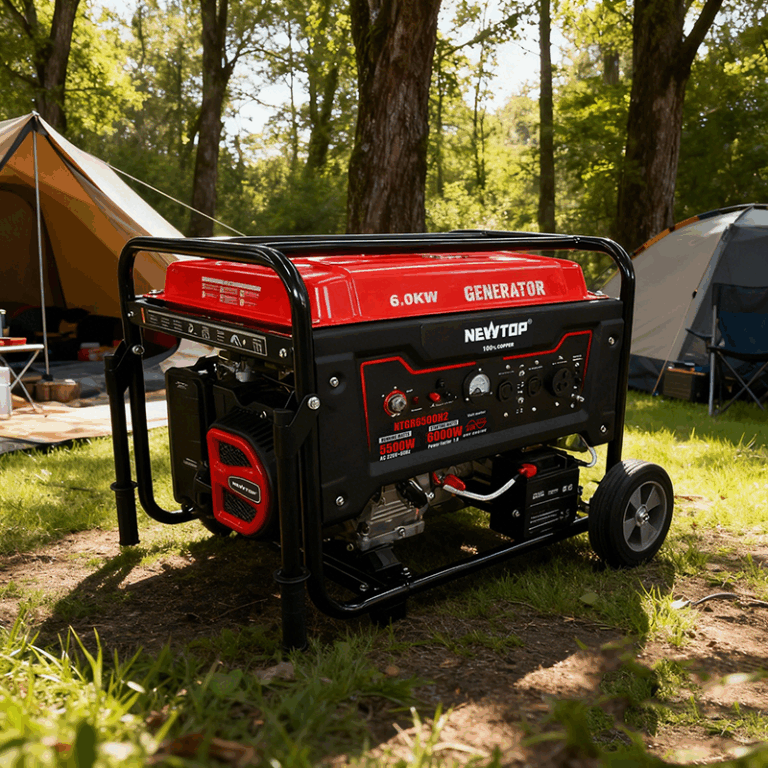

Designed for users who need steady mid-range power, the NEWTOP Generator NTGR6500H2 provides a dependable 5.5 kW output supported by a rugged OHV engine. Its copper-wire alternator maintains clean, stable current, while the vibration-damped frame keeps operation smooth during long shifts. The enlarged 25 L tank extends runtime significantly, making it well-suited for daily use on construction sites, small workshops, and household backup.
The NTGR6500H2 combines engine durability with refined power output, thanks to its 13 hp OHV engine and strengthened 42CrMo forged crankshaft and camshaft. The patented cylinder design enhances combustion efficiency, helping reduce overall fuel consumption.
A rigid, full-frame structure with upgraded vibration isolation supports stable operation in demanding environments.
Equipped with a high-quality SENCI copper-winding alternator, the generator maintains clean voltage output and strong overload capability.
Safety is integrated through low-oil alerts and short-circuit protection. The 25 L fuel tank offers long continuous operation, ideal for outdoor power equipment users, contractors, and property managers.
| Voltage | 110-127V,220-240V |
| Frequency | 50HZ,60HZ |
| AC Rated Output | 5.5kW |
| AC Max Output | 6.0kW |
| DC Voltage/ Amperage | 12V 8.3A |
| Phase | Single or Three |
| Generator Type | Synchronization, Brush. SENCI copper wire |
| Engine Model | 188F |
| Engine Type | Single cylinder,Air cooling,4 stroke,OHV |
| Bore x Stroke(mm) | 88x64 |
| Compression Ratio | 8.2:1 |
| Max. Output | 13.0hp |
| Max.Torque | 24.5N.m |
| Displacement | 389cc |
| Fuel Consumption(g/kw.h) | ≤370 |
| Starting Type | Electric |
| Material of Crankshaft | Drop-froging Steel |
| Camshaft | Drop-froging Steel |
| Fuel Tank Capacity | 25L |
| Oil Capacity | 1.1L |
